10-11PERIODIC SERVICE

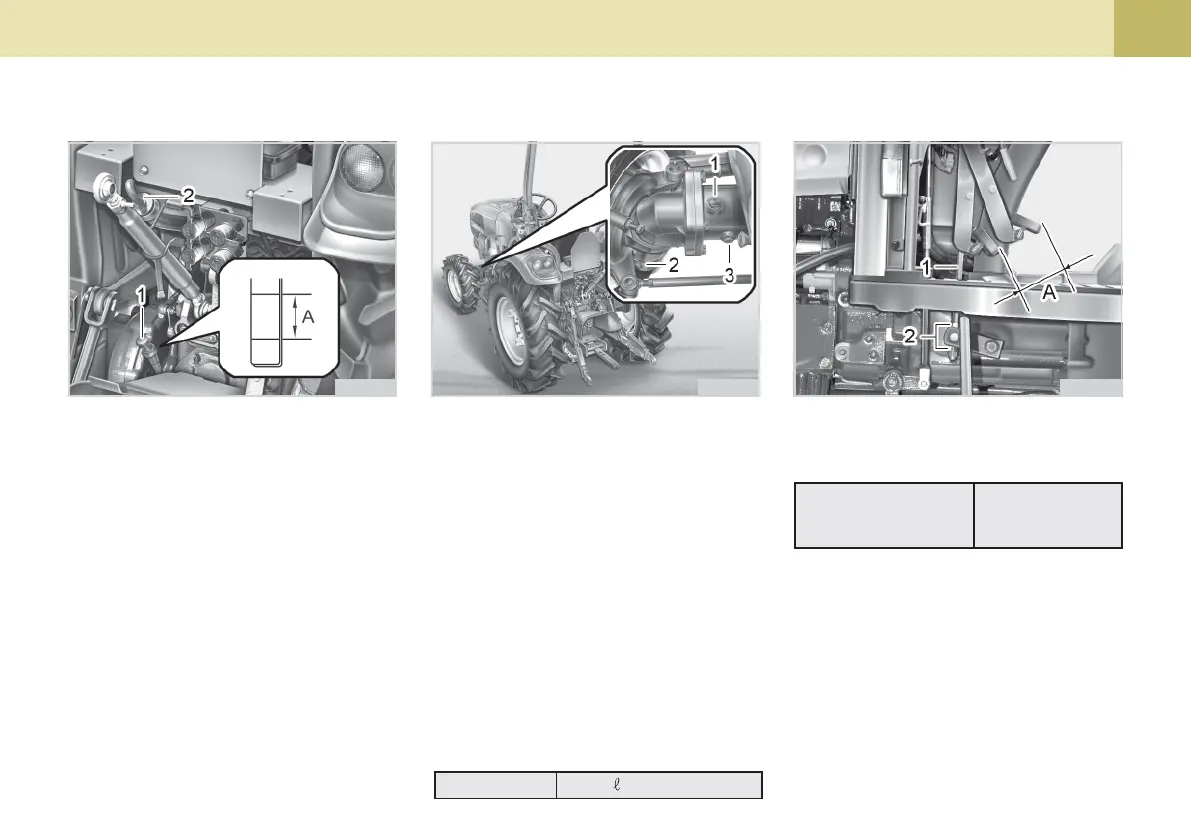

(1) Oil Filling Plug (2) Gauge
(A) Oil level is Acceptable Within this Range.
704OA17C
1. To drain the used oil, remove the
right and left drain plugs and filling
plug at the front axle case and drain
the oil completely into the oil pan.
2. After draining, reinstall the drain
plugs.
3. Remove the oil level check plug.
4. Fill with the new oil up to the check
plug port.(See "LUBICANTS" in
Maintenance Section)
5. After filling, reinstall the filling plug
and check plug.
CHANGING FRONT AXLE
CASE OIL
(1) Filling Plug (2) Drain Plug
(3) Check Plug
704OA18C
Oil Capacity 4.5 (1.19 U.S.gal.)
ADJUSTING CLUTCH PEDAL
Proper clutch pedal
free travel (A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and
measure free travel at top of pedal
stroke.
3. If adjustment is needed, loosen the
lock nut, remove the clevis pin and
adjust the rod length within accept-
able limits.
4. Retighten the lock nut and replace
the clevis pin.
(1) Clutch Rod (A) Free Travel
(2) Nut
704OA19C
