1. Forward direction
Depress the control pedal with the
toe of your right foot to move forward.
2. Reverse direction
Depress the pedal with the heel of
your right foot to move backward.
9. DEPRESS THE SPEED CONTROL
PEDAL (HST TYPE)

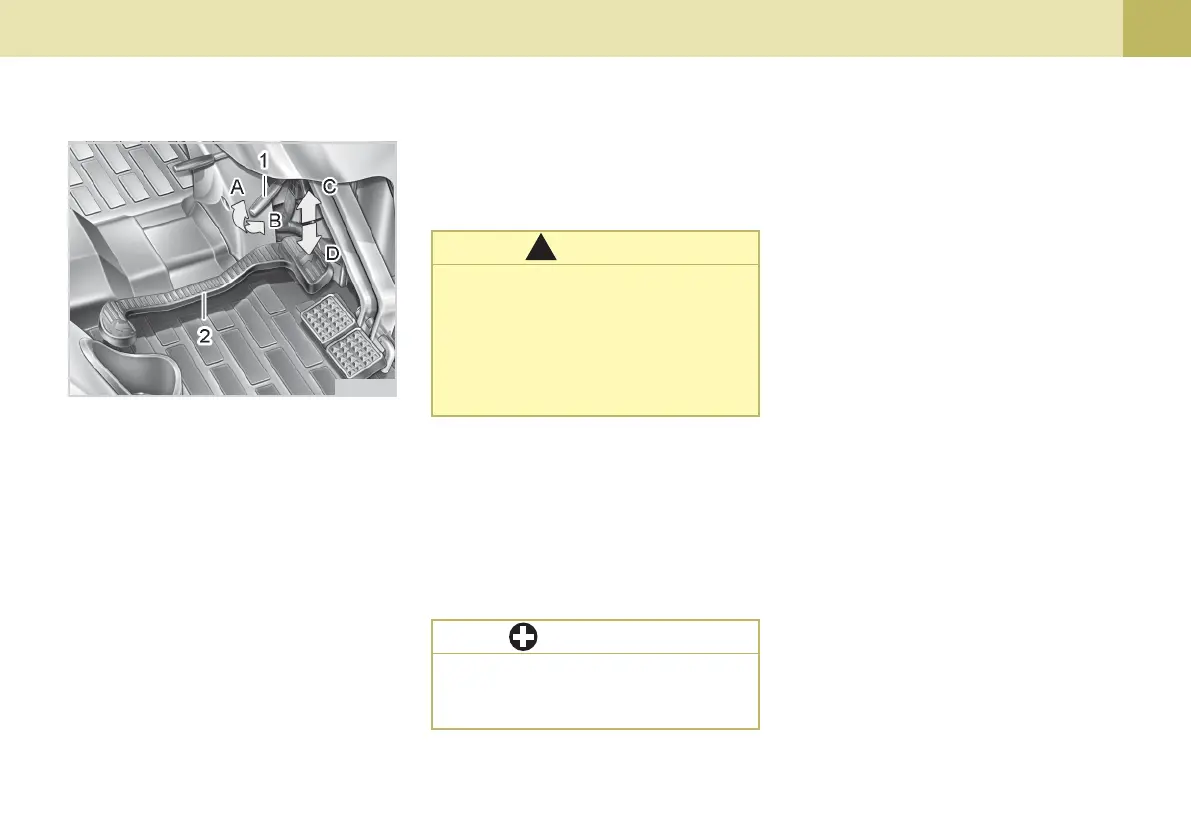

(1) SPEED CONTROL PEDAL
(1) Speed Set Lever
(2) Speed Control Pedal
(A) Lock (C)Decrease
(B) Release (D)Increase
(2) SPEED SET DEVICE
The Speed Set Device is designed for
tractor operating efficiency and opera-
tor comfort. This device will provide a
constant forward operating speed by
mechanically holding the speed control
pedal at the selected position.
704O531C
WARNING
!!
!!
!
To avoid personal injury:
zz
zz
z If your tractor moves while on
level ground with your foot “off
the control pedal, do not oper-
ate the tractor.
zz
zz
z Consult your KIOTI dealer.
zz
zz
z To prevent serious damage to
the HST do not adjust the stop-
per bolts.
IMPORTANT
[To Engage Speed Set Device]
1. Accelerate speed to desired level us-
ing Speed Control Pedal, and pull the
speed set lever up to the "ON"
position.
2. Release Speed Control Pedal and
desired speed will be maintained.
[To Disengage Speed Set Device]
1. Place the lever to the off position.
