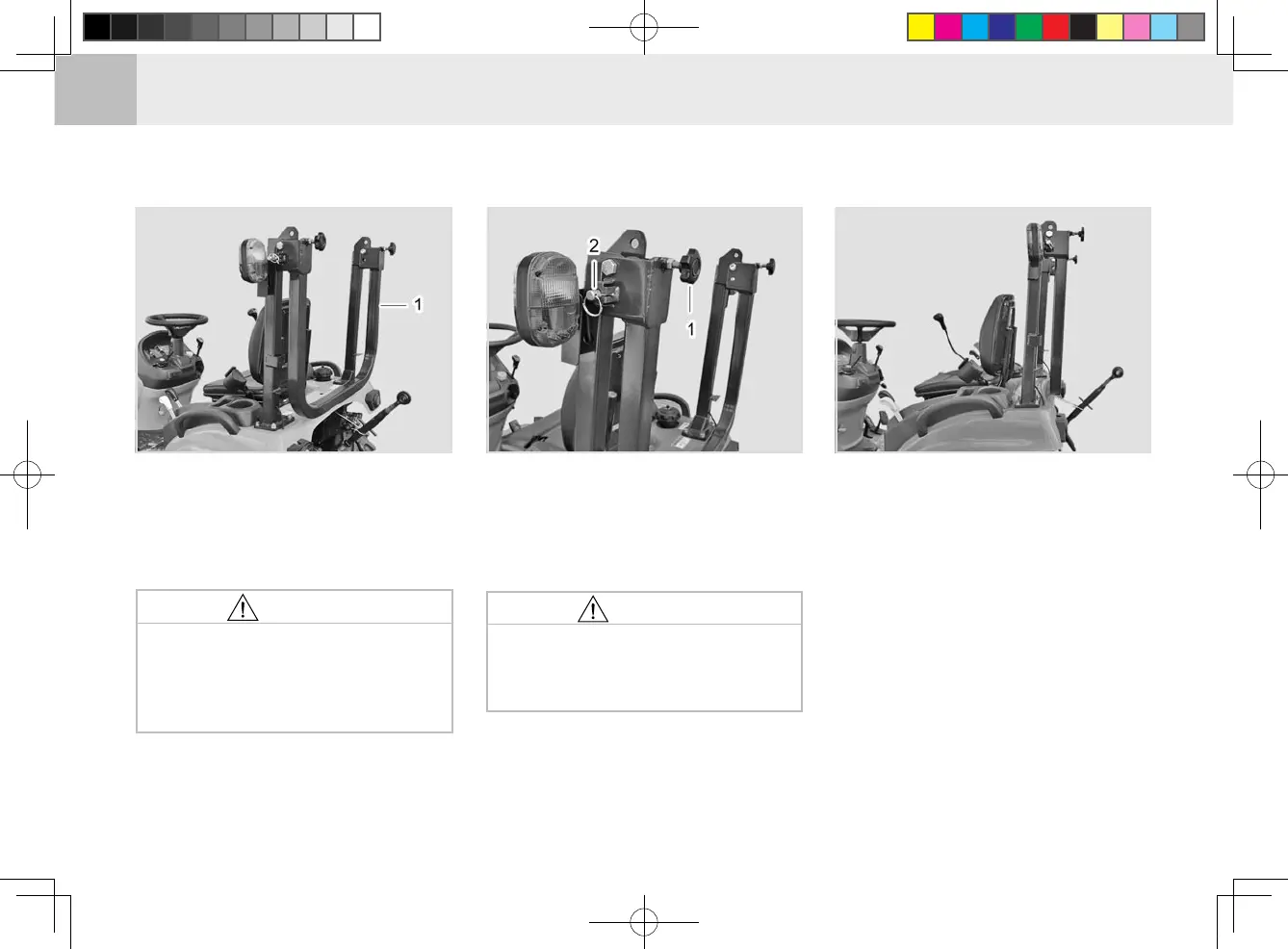

2. Fold the ROPS.
(1) ROPS
To avoid personal injury:

Hold the ROPS tightly with
both hands and fold the ROPS
slowly and carefully.
CAUTION
tb3O513A
RAISING THE ROPS TO UP-
RIGHT POSITION
1. Pull the set pin forward.
2. Raise ROPS to the upright posi-
tion.
3. Align it to the groove and pull the
set pin to release it.
(1) Grip Bolt (2) Set Pin
To avoid accidents:

Make sure the pins are prop-
erly installed and secured.
CAUTION
tb3O514A tb3O515A
