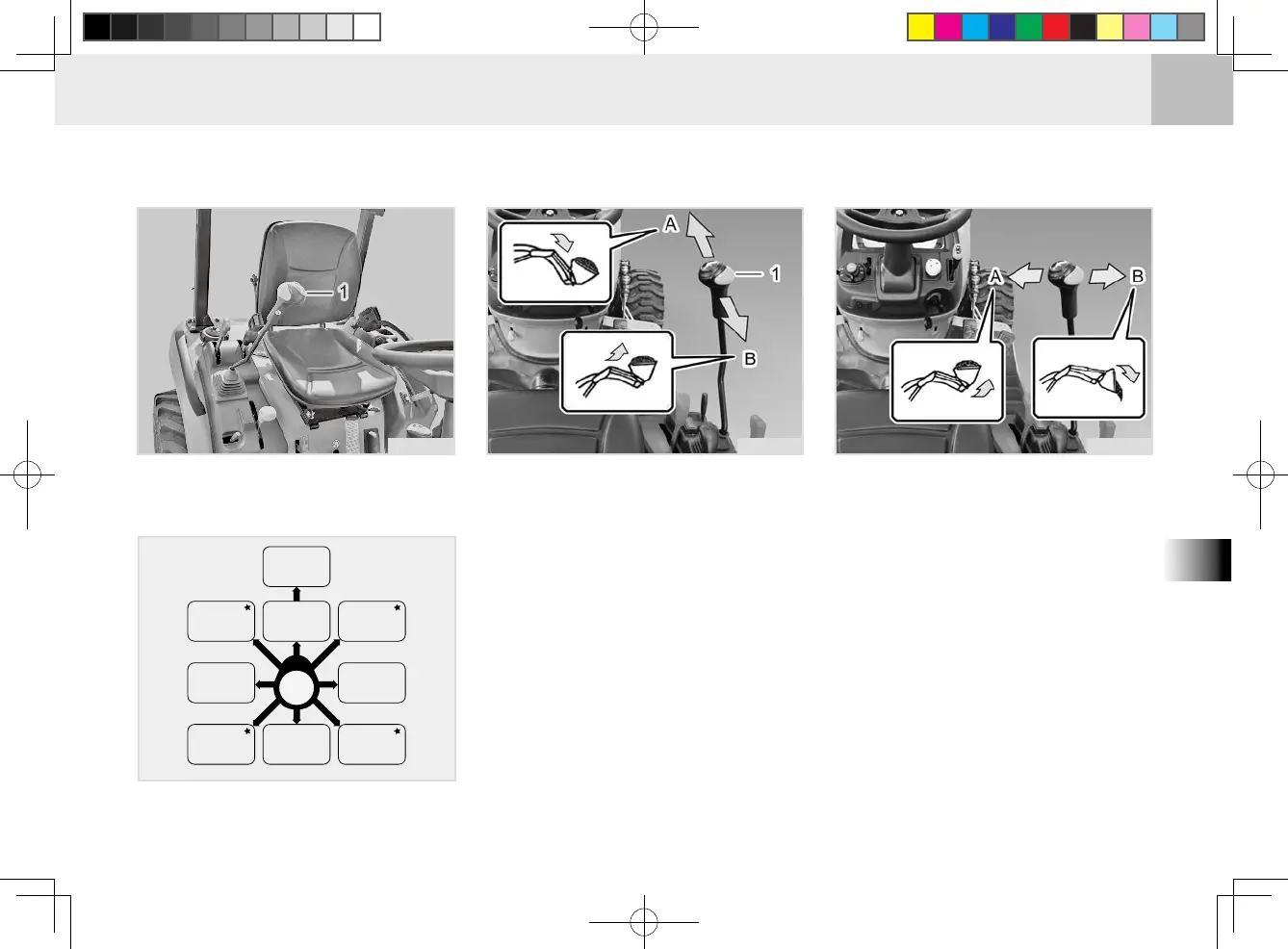

JOYSTICK LEVER
(1) Joystick Lever
1. Up and down of boom
Pulling the joystick lever back (B)
lifts the boom of the loader while
pushing it forward (A) lowers the
loader boom.
(1) Joystick Lever
(A) Boom Down (B) Boom Up
T22O603A
N
DOWN
DOWN &
ROLLBACK
UP
ROLLBACK
DUMP
UP &
ROLLBACK
UP &
DUMP
DOWN &
DUMP
FLOAT
TB3O606A TB3O607A
2. Roll back & Dump
"Roll back" means that the bucket
scoops up. To operate this func-
tion, move the joystick lever to
the left (A). "Dump" means that
the bucket dumps. To operate this
function, move the joystick lever to
the right (B).
3. Float
The floating function is activated
when the joystick lever is pushed
(A) Bucket Roll Back (B) Bucket Dump
TB3O608A
