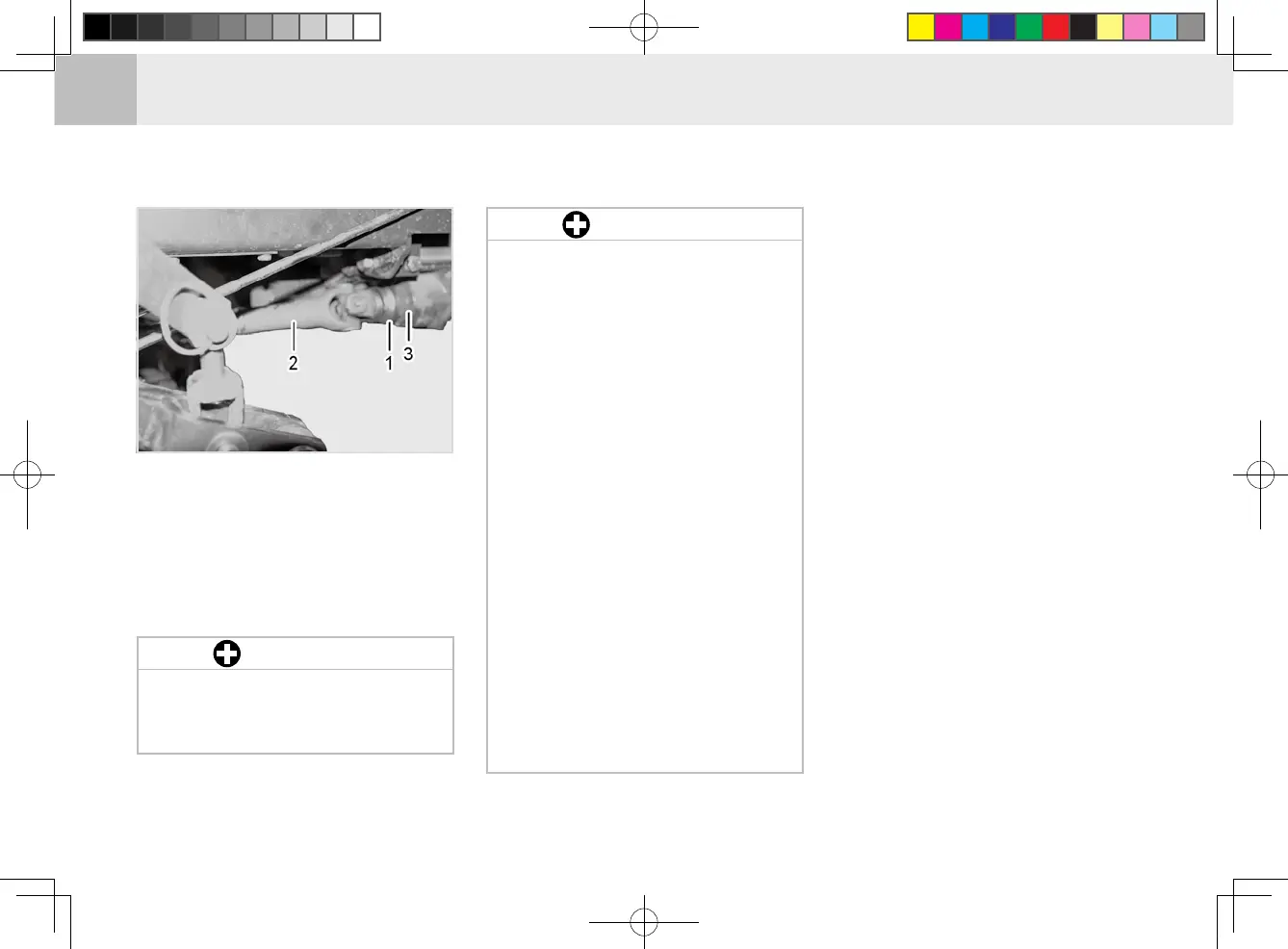

(1) Locking Collar (2) Driveshaft
(3) PTO Shaft
7. Pull the driveshaft locking collar
towards the front of the tractor and
slide the driveshaft onto the PTO
shaft.
10. Remove the implement in the
reverse order of installation and
use the implement support as
necessary.
Consult your local KIOTI Dealer
for selection of the PTO shaft.
When selecting a PTO shaft,
make sure there is a minimum
of 6 inches (152mm) of overlap
of the PTO shaft tubes when the
shaft is extended to its maximum
working length between the trac-
tor and the piece of equipment.
Also make sure there is 3 inches
(76mm) of clearance between
the shaft tube ends and the uni-
versal joints at both ends when
the PTO shaft is at its shortest
working length between the trac-
tor and the piece of equipment. If
not, DO NOT USE the PTO shaft
and contact a KIOTI dealer.
Move the joint back and forth
to check that its lock pin is
properly seated to the groove
of the PTO shaft.
IMPORTANT
M46O616A
Be sure locking collar is locked
onto PTO shaft prior to operat-
ing the mower deck.
