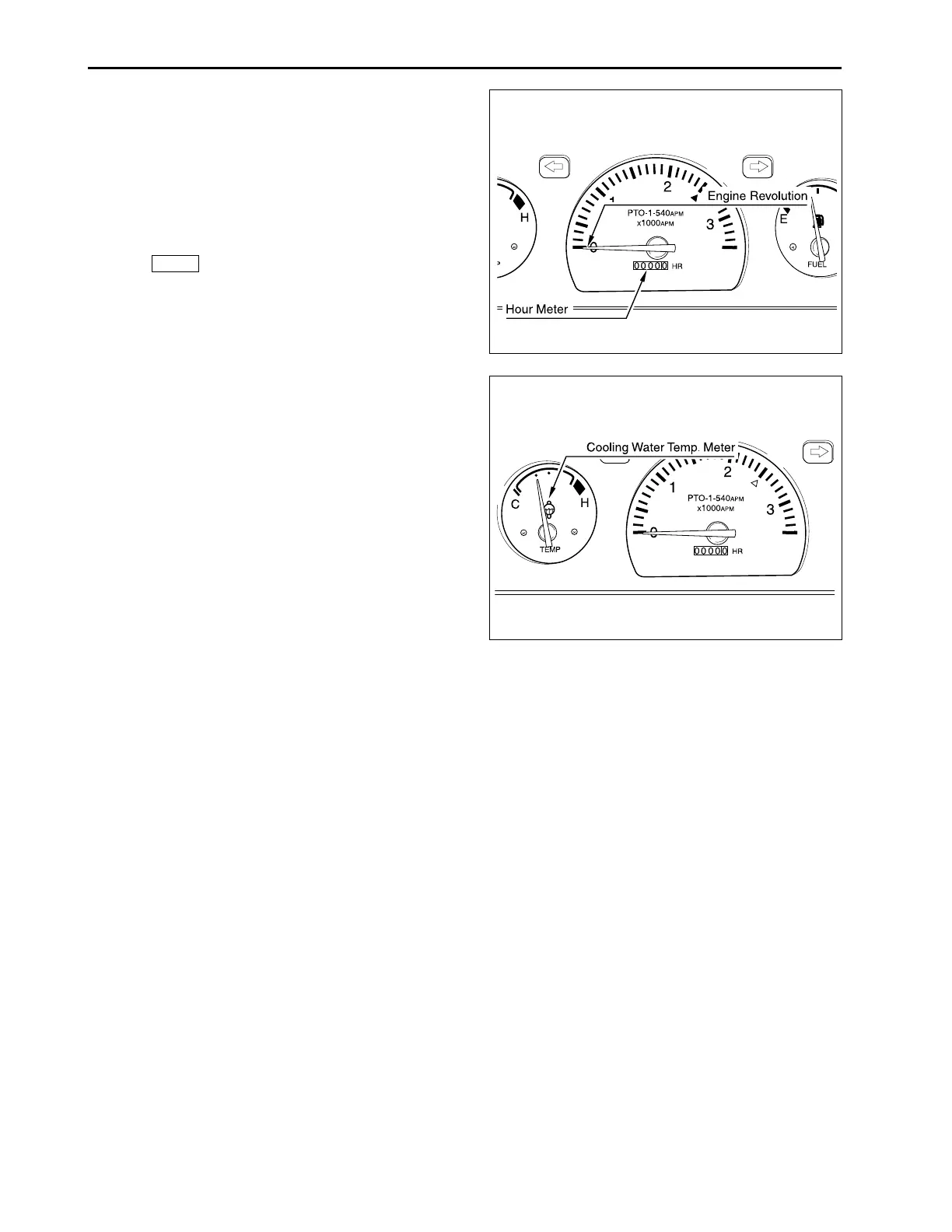

Hour Meter
This meter shows the number of hours the tractor has
been operated at rated engine rpm.
The last digit (white background) indicates 1/10 of an
hour. The time in minutes will be shown by multiplying
by six to last digit on white background.
Example 01701…. 170hours 6 minutes used Moving
hand indicates the revolution per minute of the engine
623O405A
Cooling Water Temp. Meter
Wait until Engine is warm enough. Do not operate trac-
tor with hard load before Temp. Meter indicates the
proper temperature. Be careful not to exceed cooling
water temperature overheated (red mark on Temp.
meter)
Before operating tractor, always check the amount of
cooling water in the radiator.
623O406A
Engine Oil Pressure Lamp
The oil pressure lamp will glow red when the starter
switch is turned on. This indicates the light and elec-
trical wiring are functioning properly. The light should
go out after engine starts. If light remains on, stop
engine and determine cause.
Battery Charge Lamp
The battery charge lamp will glow red when the main
switch is turned on and should go out as engine starts.
If the lamp continues to glow above idle speeds, the
battery is being discharged, indicating the electrical
system should be checked.
