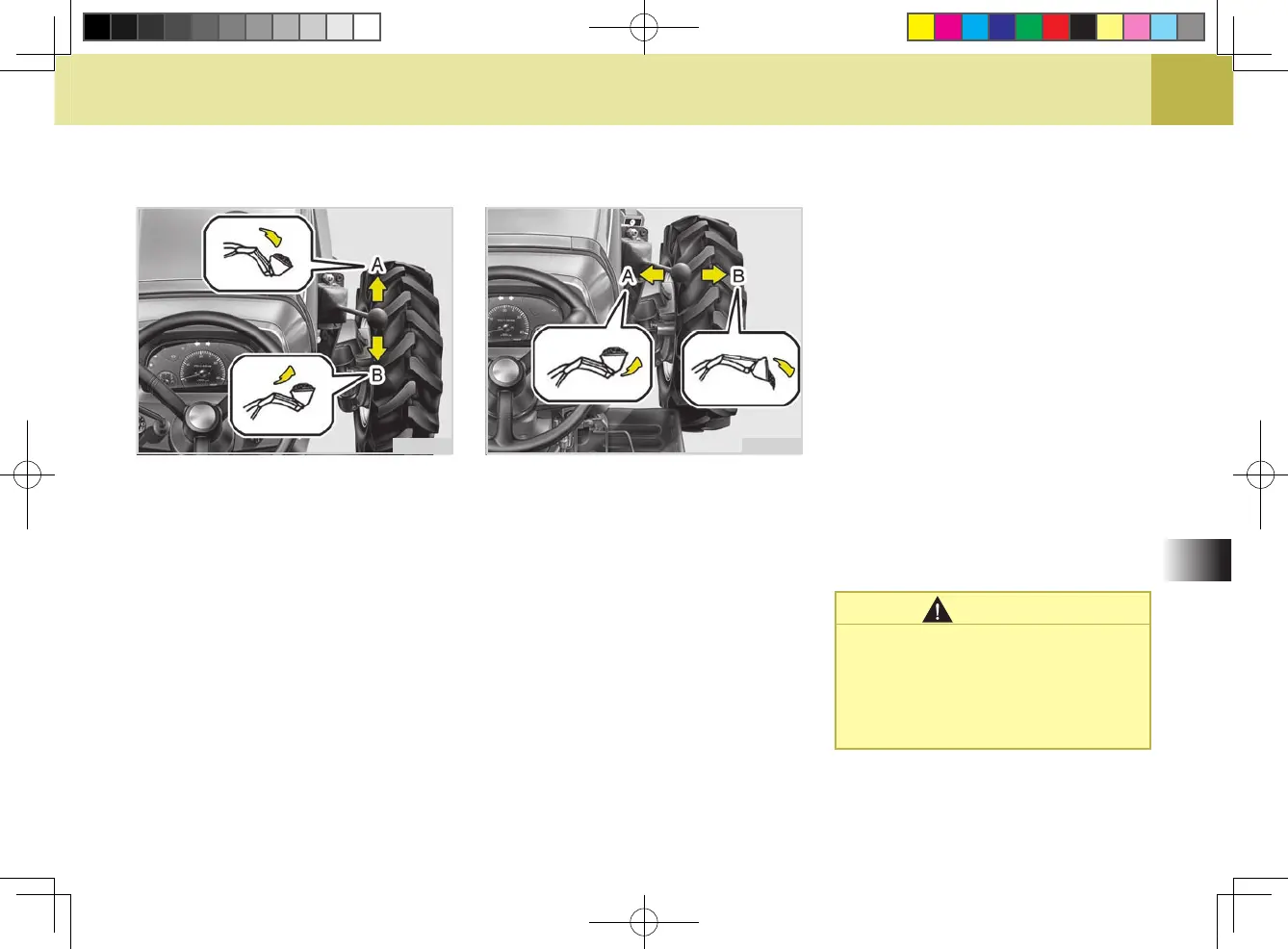

1. Up and down of boom
Pulling the joystick lever back (B)
lifts the boom of the loader while
pushing it forward (A) lowers the
loader boom.
H61O612A
(A) Boom Down (B) Boom Up
2. Roll back & dump
“Roll back” means that the bucket
scoops up. To operate this func-
tion, move the joystick lever to
the left( A). “Dump” means that
the bucket dumps. To operate this
function, move the joystick lever to
the right (B).
H61O613A
(A) Bucket Roll Back (B) Bucket Dump
3. Float
The floating function is activated
when the joystick lever is pushed
one position further to forward
from the down position. When the
lever is in this position, the boom
moves up and down freely along
the surface of the ground as the
hydraulic line is opened from the
valve to the boom cylinder. This
function is useful when removing
soft objects on hard ground (for
example, when removing snow or
sand on an paved road or remov-
ing night soil on the ground in a
stall).

If m o v ing t h e lev e r t o t h e
floating position while the
boom is up in the air, the boom
can fall freely and lead to the
accident.
WARNING
