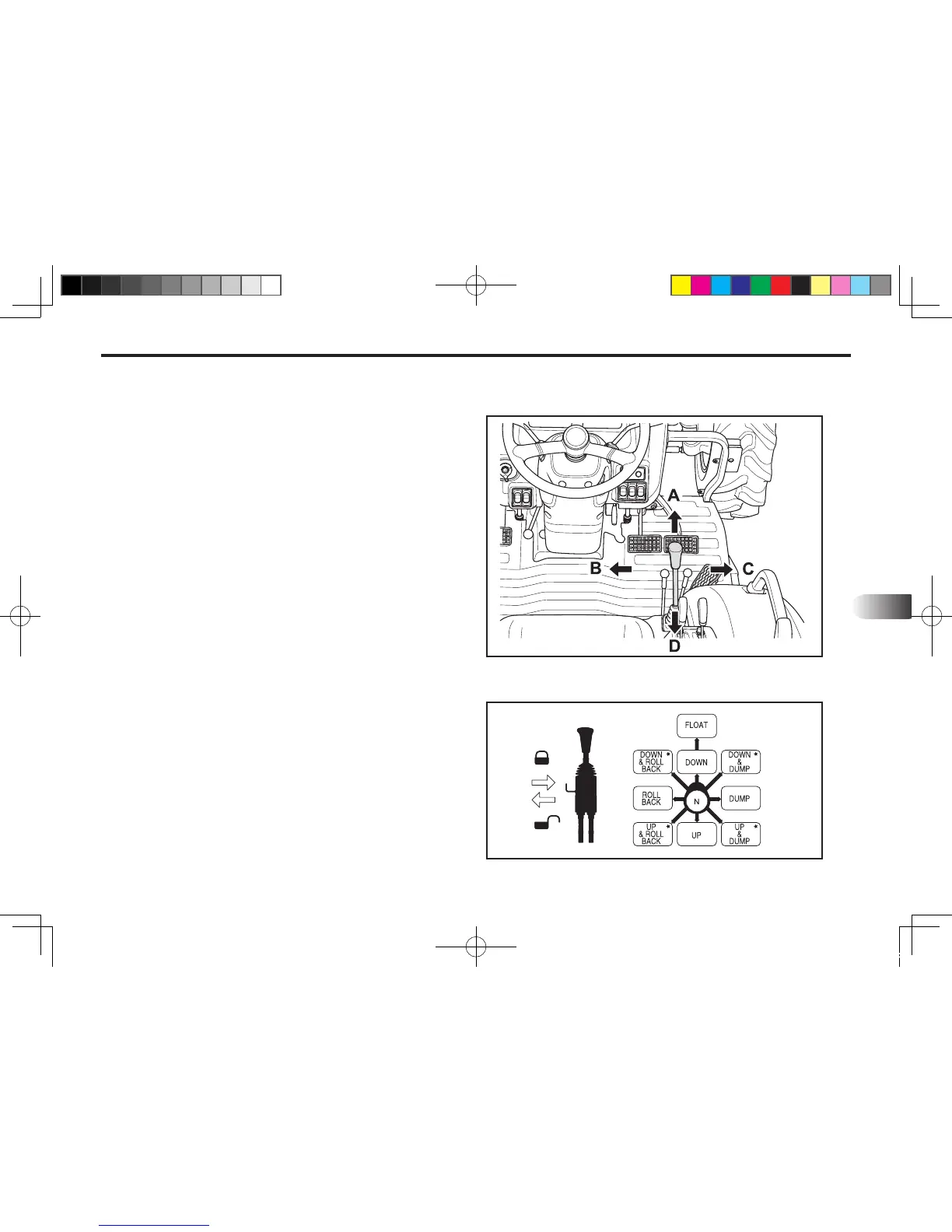

LOADER HYDRAULIC CONTROLS
(A) Forward-Float Low (B) Left-Bucket Retract
(C) Right-Bucket Dump (D) Rear-Raise
130O601A
130O602A
SCRAPING
When scraping, the float position must be used to
keep the bucket on the ground and at the same time
let the bucket follow ground contours. The bucket
must be kept level to the ground during scraping
operations.
BACKFILLING/BACKGRADING
When "Backfilling" or "Backgrading", position the
bucket so it is level on the ground. Do not dump
material from bucket following each pass, as
additional weight of material in bucket will assist in
"Backgrading" and increases loader efciency during
"Backlling".
CONTROLLED RATE OF LOADER FUNCTIONS
By "feathering" the control lever, reduced operational
speeds can be controlled. This action controls the
position of the valve spool in the valve body and
regulates ow of oil to/from cylinders. It is important
to utilize this operational practice when lowering
loader boom when the bucket is loaded with material.
