11-2 KL701

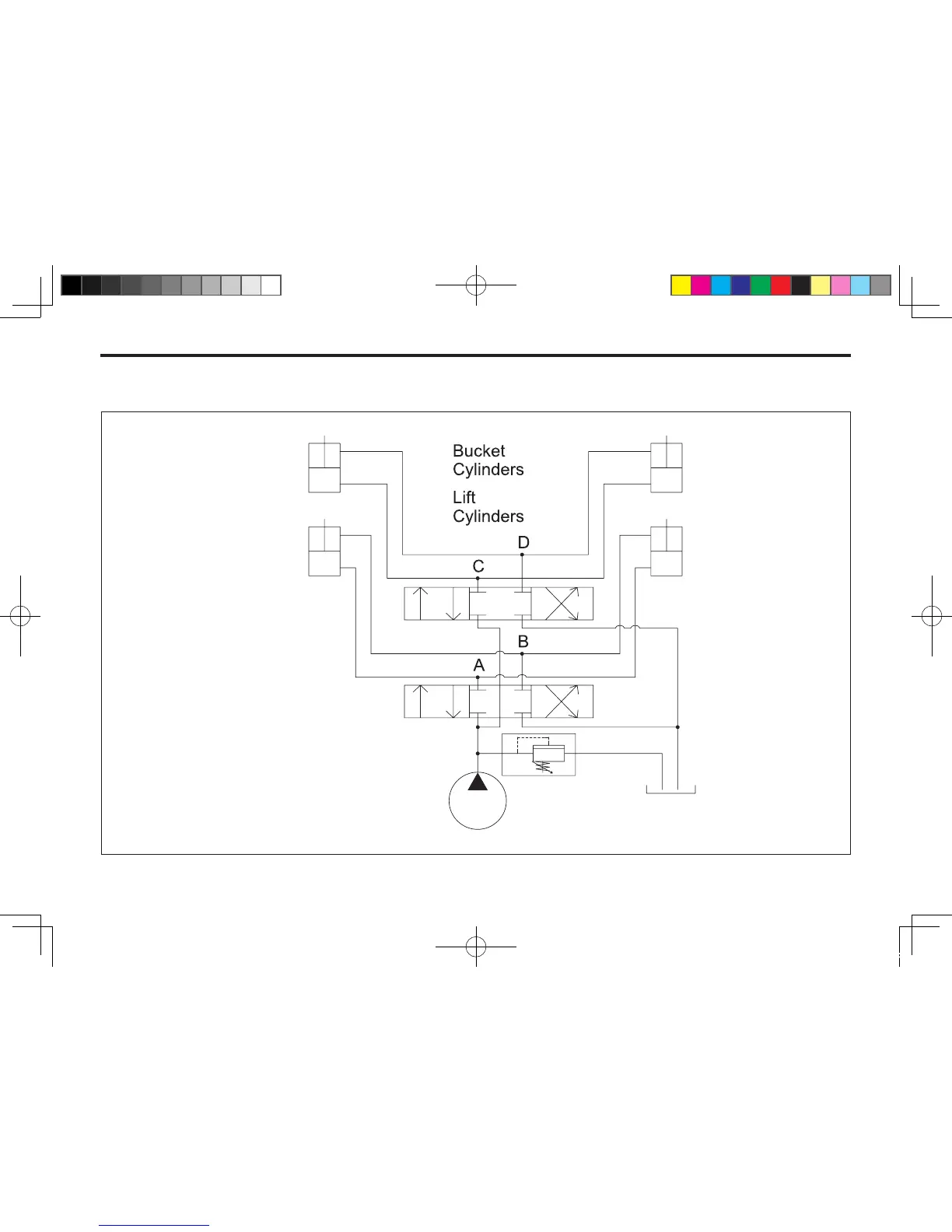

HYDRAULIC SYSTEM SCHEMATIC
AUXILIARY HYDRAULIC VALVE PACKAGE
601OB01A
A : Lift cylinder extend
B : Lift cylinder retract
C : Bucket cylinder extend
D : Bucket cylinder retract
KL701-AU-11.indd 2 2013-03-29 오전 11:28:59
