5. 3. 6 Replacing CIS Assembly and Scan Glass
Assembly
1. Remove Top Cover, Shield Cover N and Base Plate.
See [5.1.1 Removing Top Cover], [5.1.2 Removing Shield Cover N] and [5.3.4 Removing Base
Plate].

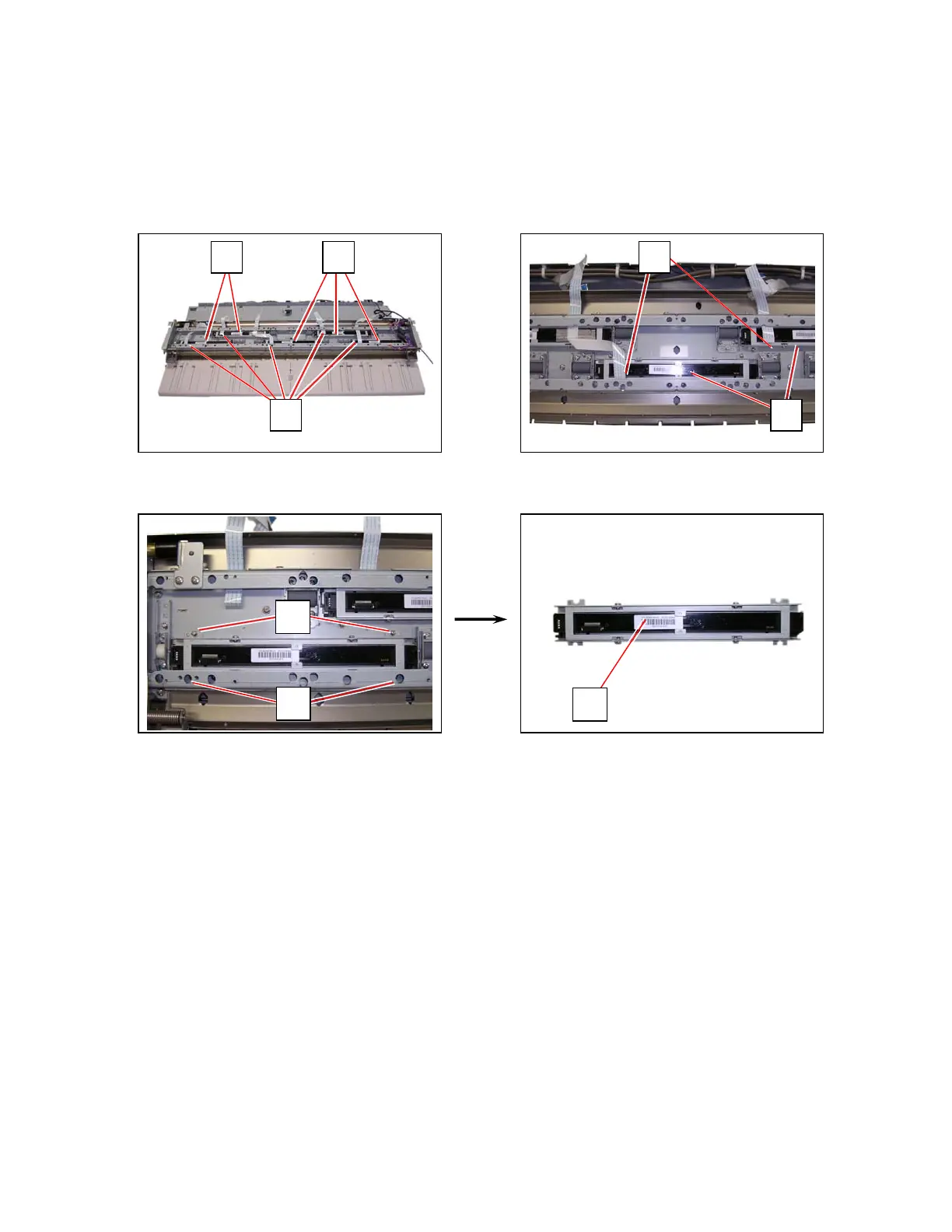

2. Carefully remove Flexible Cables (2) from CIS Assembly (1).
3. Remove 4 screws (3) and remove CIS Assembly (1).
