BPC955V0 User Manual
EMS955V0 AMF CONTROLLER1.doc Page 10 of 19 8/06/2011

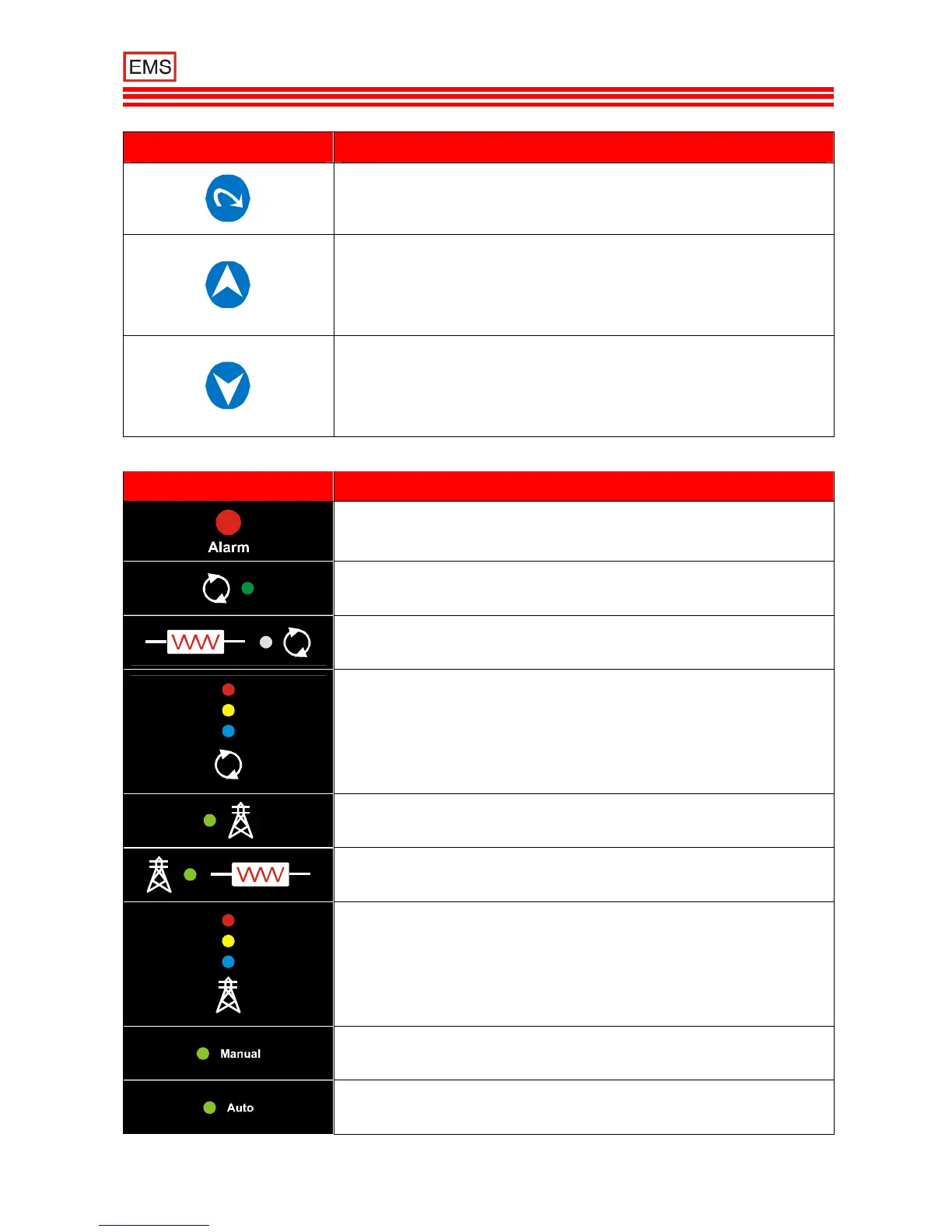

Button Function Description
Genset Transfer Button
Used to start transfer sequence of load from mains to genset
Screen Scroll up / Setup menu up Button
1. Screen Scroll up Button
2. Used as the system menu up and value increment button
Screen Scroll down / Setup menu down Button
1. Screen Scroll up
2. Used as the system menu down and value decrement button
LEDs
Button Function Description
Alarm
Indicates system alarm
Genset Available
Indicates that the genset is available to go on load
Genset On Load
Indicates that the genset is currently on load
Alternator Phase Status
Indicates the phases which are available from the genset
1. Red – Phase 1
2. Yellow – Phase 2
3. Blue – Phase 3
Mains Available
Indicates that the mains supply is available to go on load
Mains On Load
Indicates that the mains supply is currently on load
Mains Supply Phase Status
Indicates the phases which are available from the mains
1. Red – Phase 1
2. Yellow – Phase 2
3. Blue – Phase 3
Manual Mode
Indicates that the system is in manual mode
Auto Mode
Indicates that the system is in automatic mode
