Kisae SW2410 - Product Description; Installation

Page 5
2. PRODUCT DESCRIPTION
The True Sinewave Power Inverter includes the items listed below.
• Power Inverter base unit
• Owner’s manual
Series
Model No.
Output Rating
AC Output Socket Types
120V model
SW2410
1000W
15A GFCI
SW2420
2000W
20A GFCI
230V model
SW2410i-EU, UK, AU
1000W
16A(EU), 13A(UK), 10A(AU)
SW2420i-EU, UK, AU
2000W
16A(EU), 13A(UK), 10A(AU)
3. INSTALLATION
WARNING: It is recommended that all wiring be done by a certified technician or electrician
to ensure adherence to the applicable electrical safety wiring regulations and installation
codes. Failure to follow these instructions can damage the unit and could also result in
personal injury or loss of life.
CAUTION: Before starting the unit installation, please consider the following:
• The unit should be used or stored indoors and away from direct sunlight, heat, moisture or
conductive contaminants.
• When placing the unit, allow a minimum of three inches of space around it for optimal ventilation.
Understanding the unit features

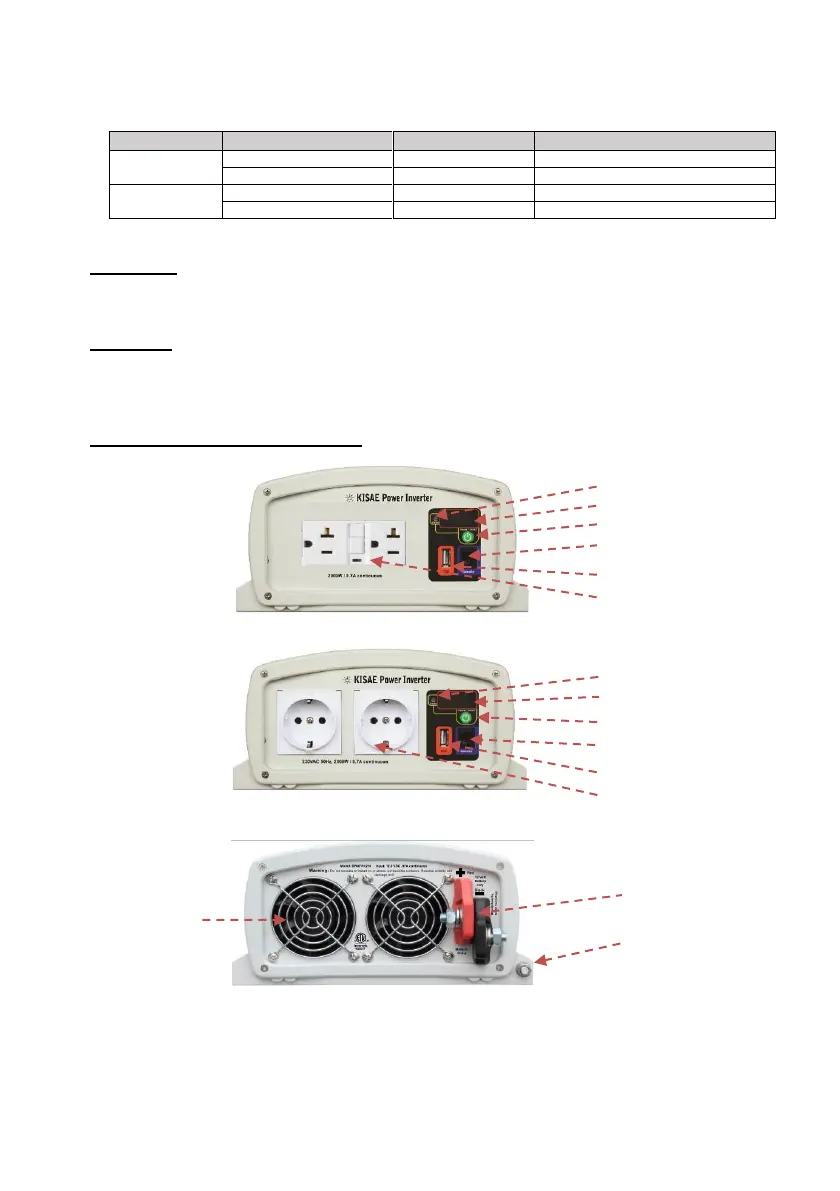

AC Output Front Panel
SW2420 (120VAC model)
Picture shows SW2420i-EU (230VAC Model)
DC Input Rear Panel
Picture shows SW2420 (120VAC Model)
Fan opening
Status Indicator
Display
‘Power/Select’ On/Off button
Remote Port (RJ12 for optional
remote switch)
USB Output
AC Output GFCI Socket
Status Indicator
Display
‘Power/Select’ On/Off button
Remote Port (RJ12 for optional
remote switch)
USB Output
AC Output Schuko Socket
DC Terminals Positive “+”
and Negative “–“
Chassis Ground
