Kitables USB CHARGER - Module to Booster Connectivity; Charging Module Output Wiring; USB Booster Input Wiring

USB Charger Kit Instructions

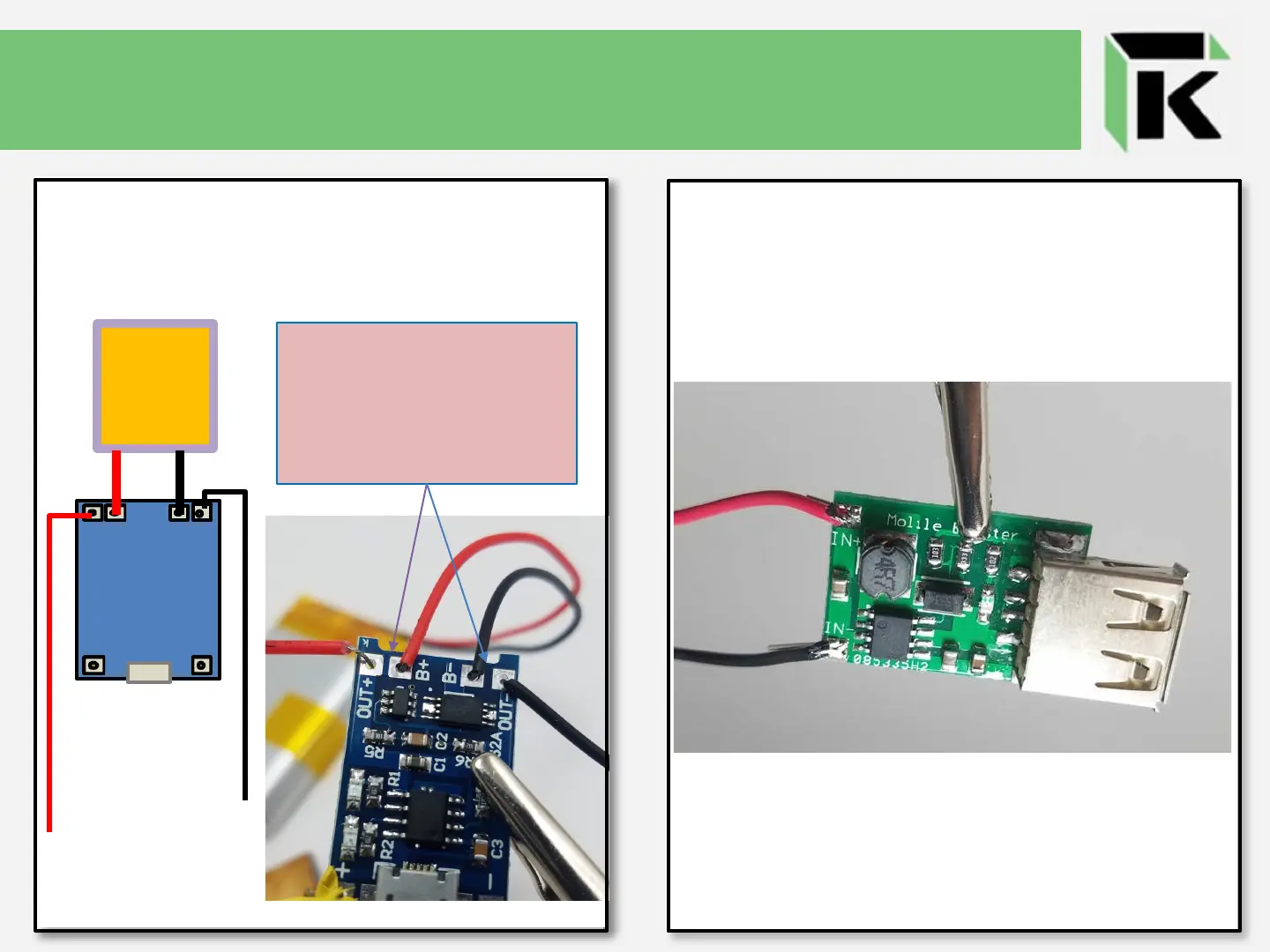

Solder the Red wire from the OUT+
terminal of the Charging Module (blue
board) to the IN+ terminal on the USB
Booster (green board).
Solder a 2nd available Black wire to the
IN- terminal on the USB Booster.
+
-
On the blue Micro USB Charging Module, solder
an available Red wire to the OUT+ terminal
and an available Black Wire to the OUT-
terminal.
LIPO
BATTERY
OUT+
B
+
B
-
OUT-
Some kits might have the B-/Out-
as one terminal and the B+/Out+ as
one terminal. In that case, combine
black wire ends together and solder
to negative Bat- terminal and
combine red wire ends together
and solder to positive Bat+ terminal
