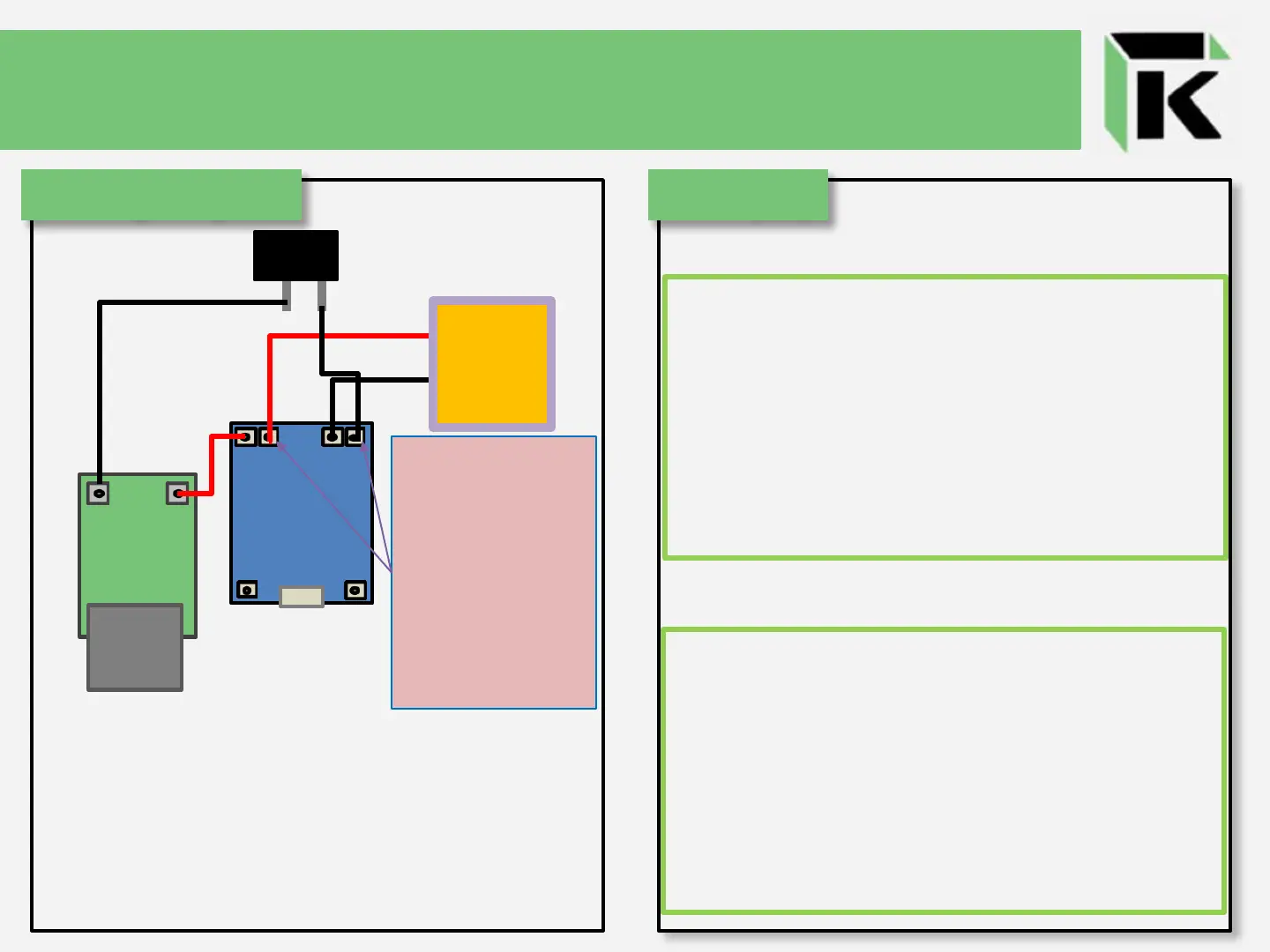

Wiring Diagram
Turn Switch off. Plug a micro USB cable
into the Micro USB Charging Module port
(the blue board) and charge from a wall
outlet or other power source. Charging
with a wall outlet takes approximately 2
hours to fully charge the LiPo Battery
from empty.
To charge your device with the USB
Charger Kit, plug your device’s USB
charging cord into the standard USB
port on the green board. Turn on the
Switch to direct power from the LiPo
Battery to your device. Turn the switch off
when re-charging the Battery of the USB
Charger Kit.
Charging
+
-
OUT+
B
+
B
-
OUT-
Some kits might have
the B-/Out- as one
terminal and the
B+/Out+ as one
terminal. In that case,
combine black wire
ends together and
solder to negative Bat-
terminal and combine
red wire ends together
and solder to positive
Bat+ terminal
LIPO
BATTERY
IN+
IN-
+
-
USB Charger Kit Instructions
