15
2. Connect the bare ground wire to the range using the ground-
link screw and cup washer. The ground wire must be
attached first and must not contact any other terminal.
3. Loosen (do not remove) the hex washer head screw and
insert the neutral (white) wire under the screw clamp at the
bottom of the center position terminal connector.
4. Insert the other 2 wires (lines 1 and 2) under the other 2 screw
clamps.
5. Securely tighten the hex washer head screws to
35 lbs-in. (4.0 N-m) minimum torque to make proper
electrical connection.
6. Tighten the locking ring of the conduit connector.
7. Replace the terminal block cover.
3-wire connection: Direct Wire
Use this method only if local codes permit connecting ground
conductor to neutral supply wire.
1. Loosen (do not remove) the hex washer head screws and
insert the neutral (white) wire under the screw clamp at the
bottom of the center position terminal connector.
2. Insert the other 2 wires (lines 1 and 2) under the other 2 screw
clamps.
3. Securely tighten the hex washer head screws to
35 lbs-in. (4.0 N-m) minimum torque to make a proper
electrical connection.
4. Tighten the locking ring of the conduit connector.
5. Replace the terminal block cover.

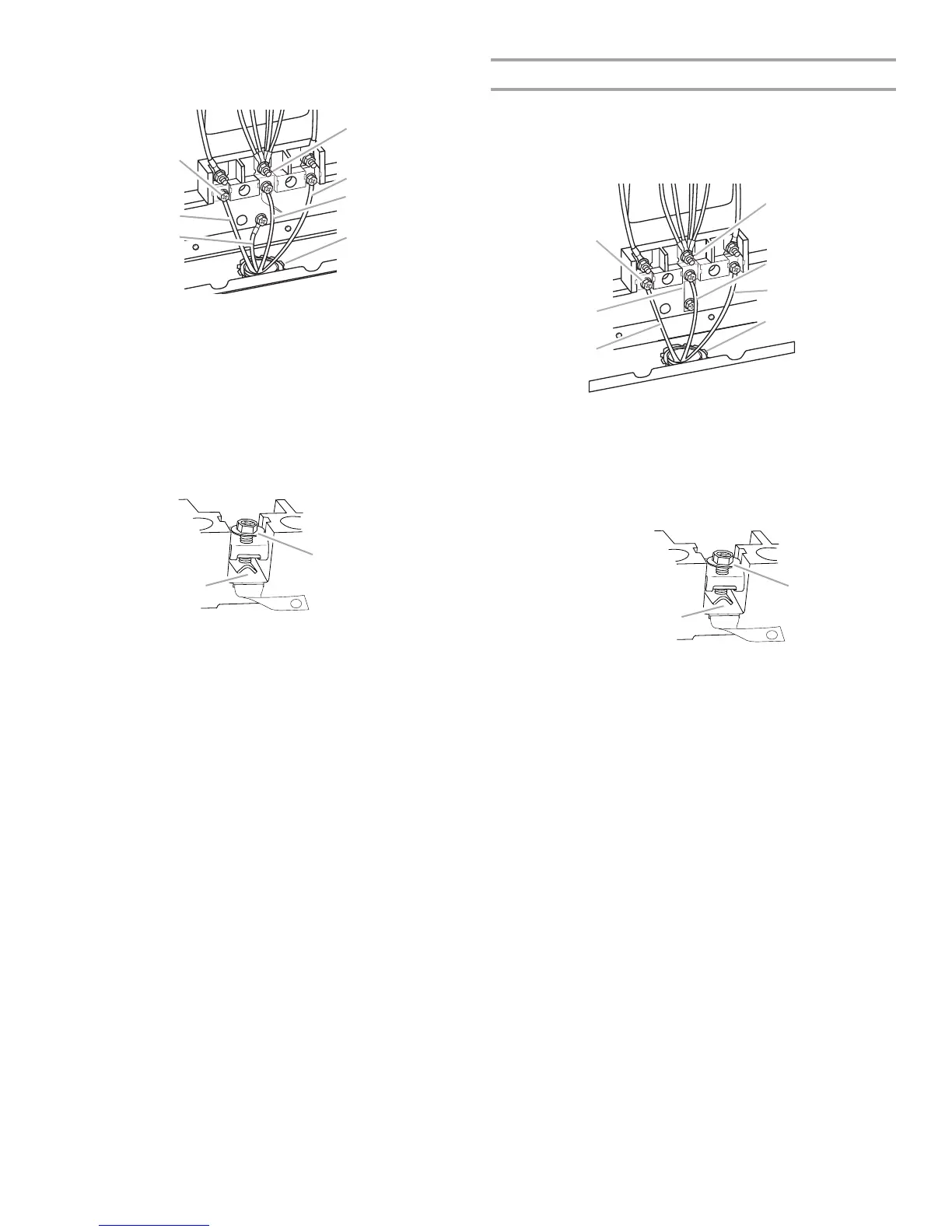

A. Bare wire from power
supply cable
B. Line 1
C. Hex washer head screw
D. Silver-colored terminal
block screw
E. Line 2
F. Neutral (white) wire
G. UL listed conduit
connector and power
supply cable
A. Insert wire under screw clamp.
B. Hex washer head screw
A
B
C
D
E
F
G
A
A. Line 1
B. Ground-link
C. Hex washer head screw
D. Silver-colored terminal
block screw
E. Neutral (white) wire
F. Line 2
G. UL listed conduit
connector and power
supply cable
A. Insert wire under screw clamp.
B. Hex washer head screw
A
B
C
D
E
F
G
A
