KitchenAid 30" Freestanding Range - Page 5

5

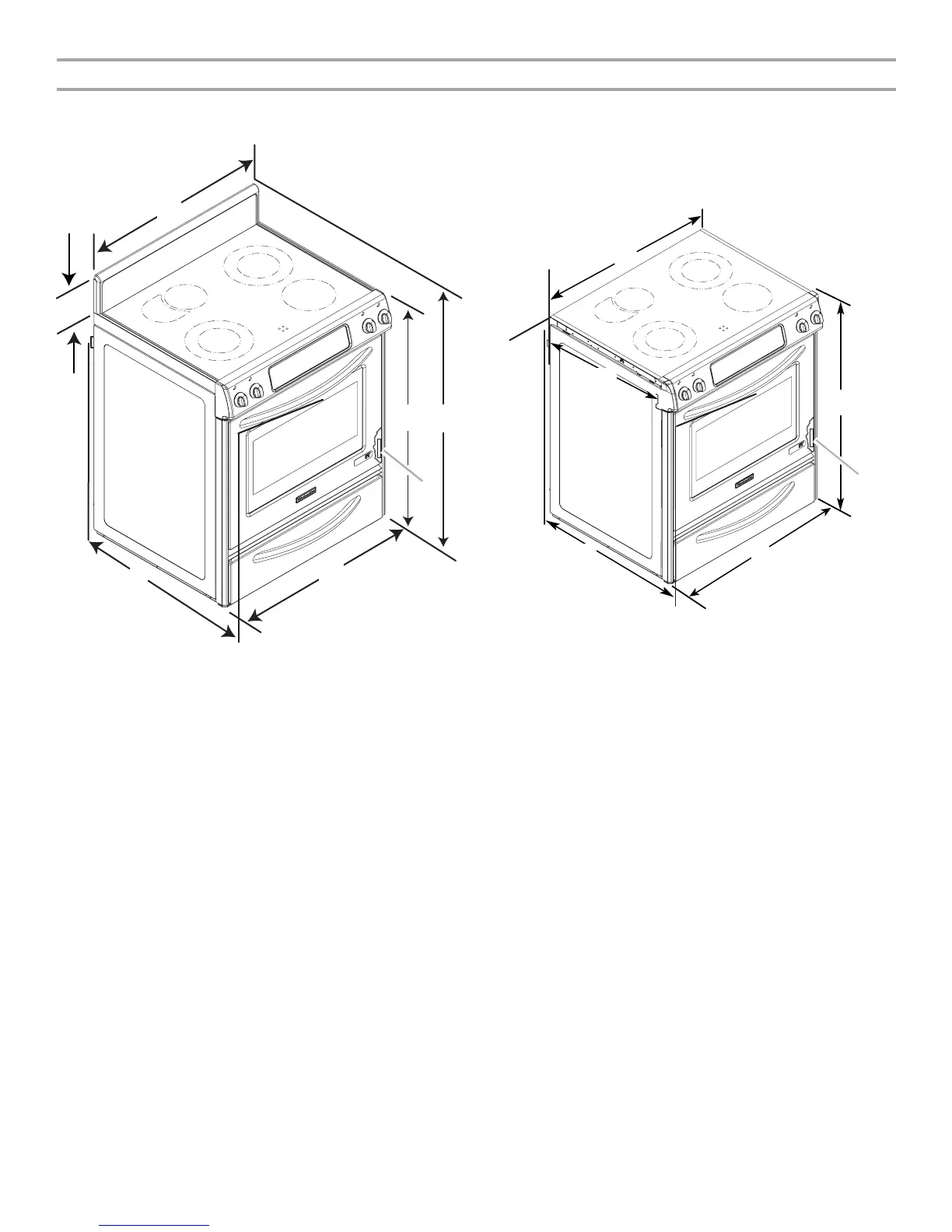

Product Dimensions
Freestanding Range
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 1" (2.5 cm) beyond
24" (61 cm) base cabinet.
Slide-in Range
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 1³⁄₄" (4.4 cm) beyond
24" (61 cm) base cabinet.
A. 5³⁄₄" (14.6 cm)
B. 30" (76.2 cm)
C. 41³⁄₄" (106 cm) overall
height with leveling legs
screwed all the way in
D. 36" (91.4 cm) cooktop trim
height with leveling legs
screwed all the way in*
E. 30" (76.2 cm)
F. 27 ¹⁄₄" (69.2 cm) max. from
handle to standoff at back of
range**
G. Model/serial number plate
(located on the right-hand side
oven door trim)
A
B
C
D*
E
F**
G
A. 30¹¹⁄₁₆" (77.6 cm)
B. 35⁵⁄₈" (90.5 cm) height to
underside of cooktop edge
with leveling legs screwed all
the way in*
C. Model/serial number plate
(located on the right-hand side
oven door trim)
D 30" (76.2 cm)
E. 27¼" (69.2 cm) from handle
to standoff at back of
range**
F. 23" (58.4 cm) countertop
notch to rear of cooktop
C
B*
A
D
E**
F
