KitchenAid 30" - Product Dimensions; Models with interior-mounted blower motor; Models with exterior-mounted blower motor

6

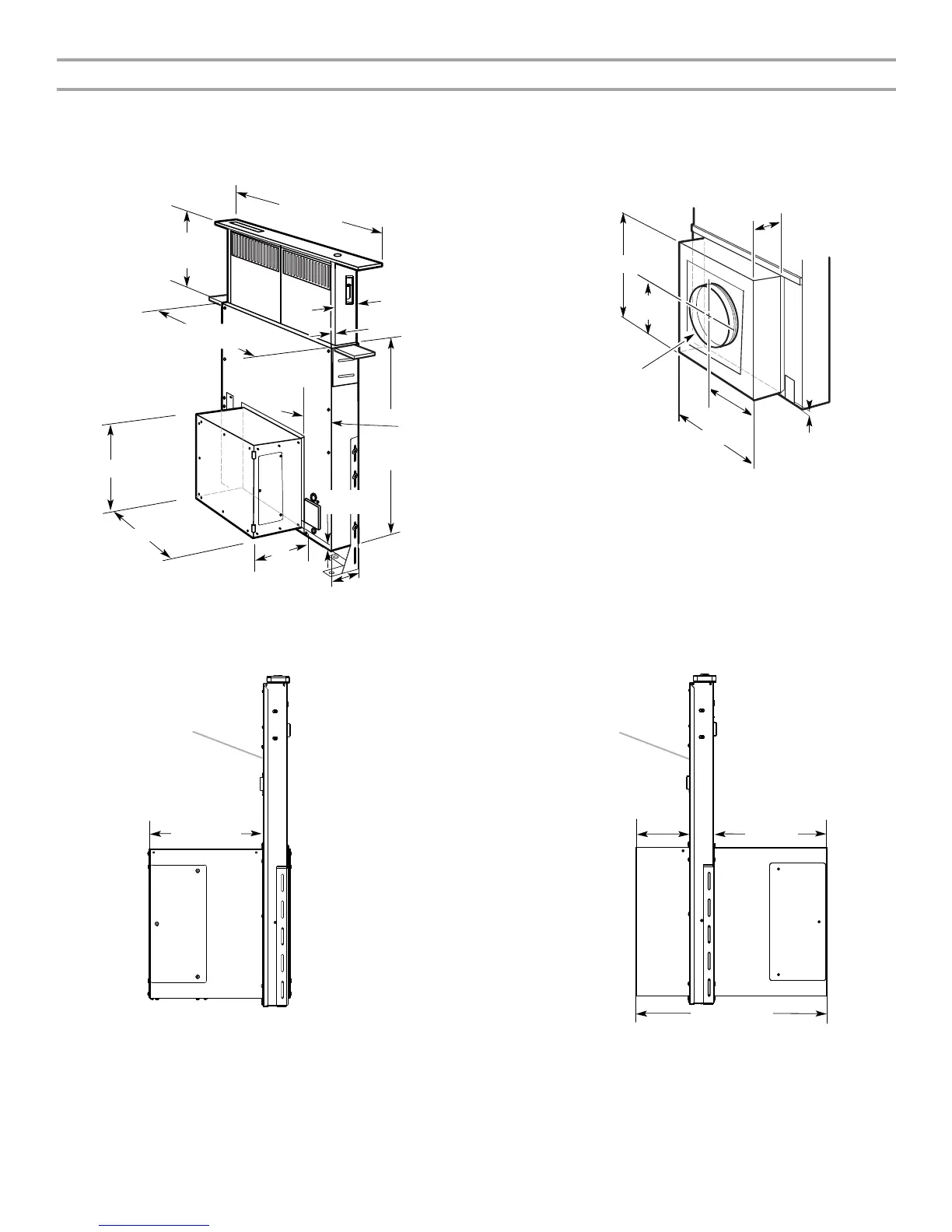

Product Dimensions
Models with interior-mounted blower motor
Models with exterior-mounted blower motor
4³⁄₄" (12.1 cm)
13¹⁄₈" (33.4 cm)
6⁹⁄₁₆"
(16.7 cm)
10" (25.4 cm)
diameter
vent collar
16¹⁄₂" (42.0 cm)
8¹⁄₄"
(21.0 cm)
³⁄₄" (1.9 cm)
Top trim widths:
30" (76.2 cm)
36" (91.4 cm)
13¹⁄₂" (34.3 cm)
retractable
vent height
27" (68.6 cm) for 30" (76.2 cm) vent
33" (83.8 cm) for 36" (91.4 cm) vent
16¹⁄₂" (42.0 cm)
10"
(25.4 cm)
2¹⁄₈" (5.4 cm)
28¹⁄₂"
(72.4 cm)
³⁄₈" (0.95 cm)
1¹⁄₂" (3.8 cm)
13¹⁄₈" (33.4 cm)
5¹⁄₄"(13.3 cm)
for 30" (76.2 cm) vent
8¹⁄₄"(21.0 cm)
for 36" (91.4 cm) vent
³⁄₄
(1.9 cm)
As-Received Blower
Reversed Blower
10" (25.4 cm)
4³⁄₄"
(12 cm)
16¹⁵⁄₁₆" (43 cm)
10"
(25.4 cm)
Front of
Range Hood
Front of
Range Hood
