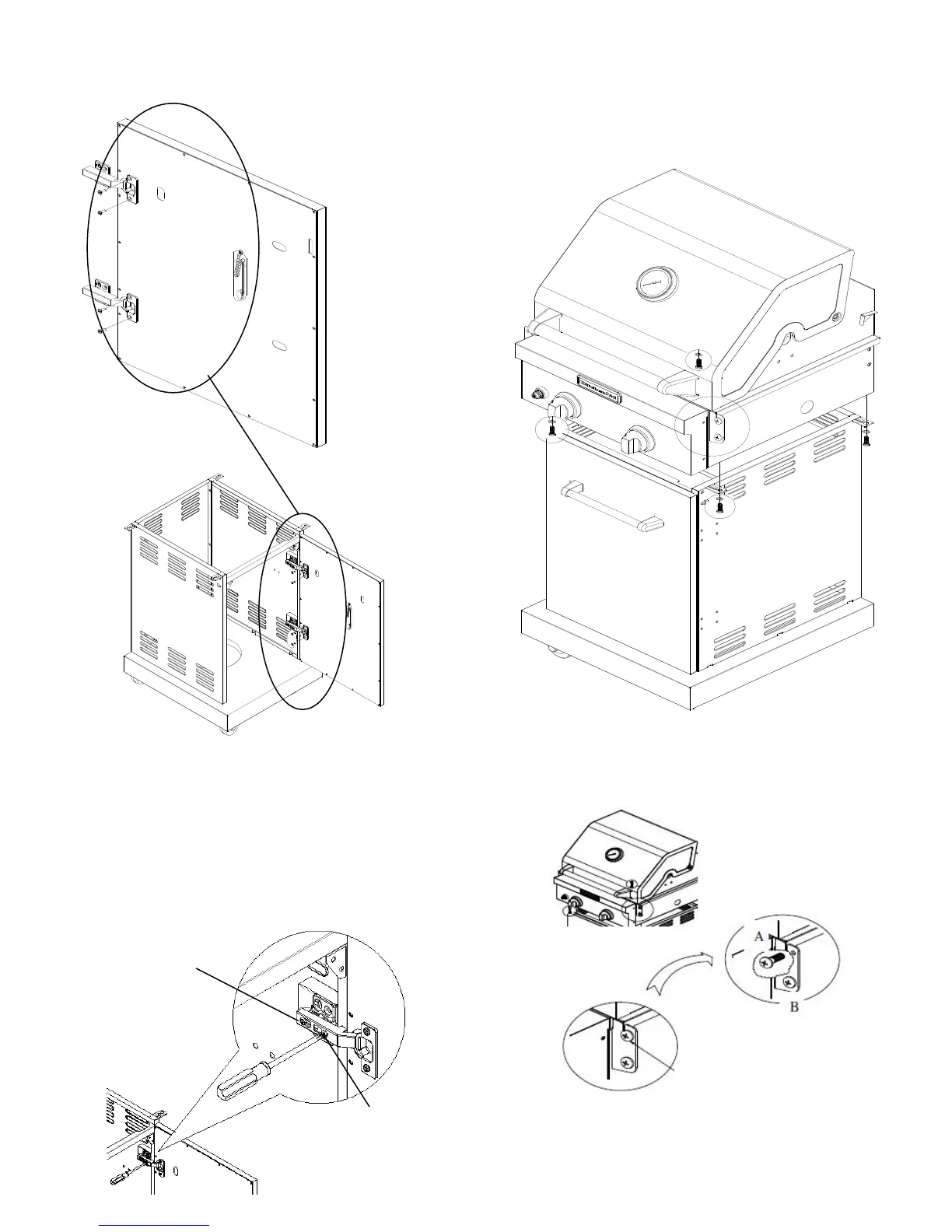

6. Remove 4 screws pre-assembled on the door. Use the 4
screws to attach the door hinge on the inside of the door as
shown below.
7. To adjust door alignment the hinges need to be adjusted.
Loosen the screws marked A securing the door hinges. Hold
door and hinges in desired position and tighten screws to secure
the hinges. To adjust door angle, turn screws marked B
clockwise to move door left and counterclockwise to move door
right.
Note: Door may misalign when grill is rolled over uneven
ground or positioned on uneven ground.
Firebox Assembly
1. Remove the 4 screws under the firebox on each corner. Place
the firebox on the cart as shown with the hose inside the cart and
reattach the 4 screws.
Tighten to secure.
Side Shelf Assembly
1. Remove the pre-assembled top screws and nuts on each
corner bracket.
Remove the top screw and nut
A
B
