10
• Hook the hood onto the lower bracket.
• Fit the hood securely to the wall with screws
• Connect the venting pipe (Venting pipe and
straps are not provided and must be purchased
seperately) to the connection ring found above
the motor suction unit. The other end of the
pipe should be attached to venting pipe leading
to the outside if you are using the extractor in
the vented mode. If you wish to use the hood in
the recirculation mode, then connect the other
end of the pipe to the connection ring on the

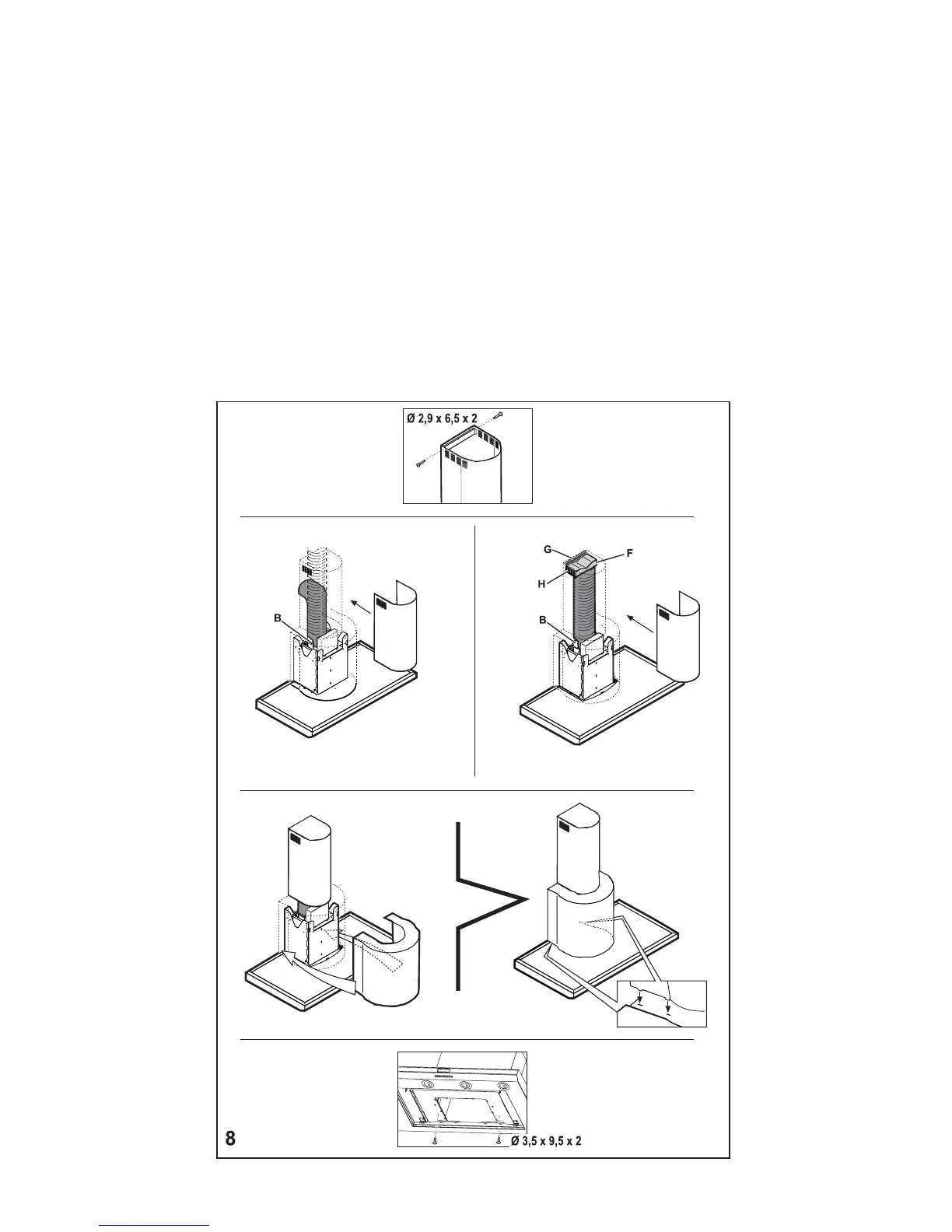

deflector F. Fig. 8
• Connect the electrics.
• Attach the upper chimney and fix it to the
support bracket G with 2 screws.
Note: The upper chimney should also cover the
bracket M. Fig. 6
• Install the lower chimney covering the power
unit and insert it into its locating slot on the
hood.
• Attach the lower chimney with 2 screws. Fig. 8.
• Attach the lower suction of the chimneys with
2 screws.
Installation
