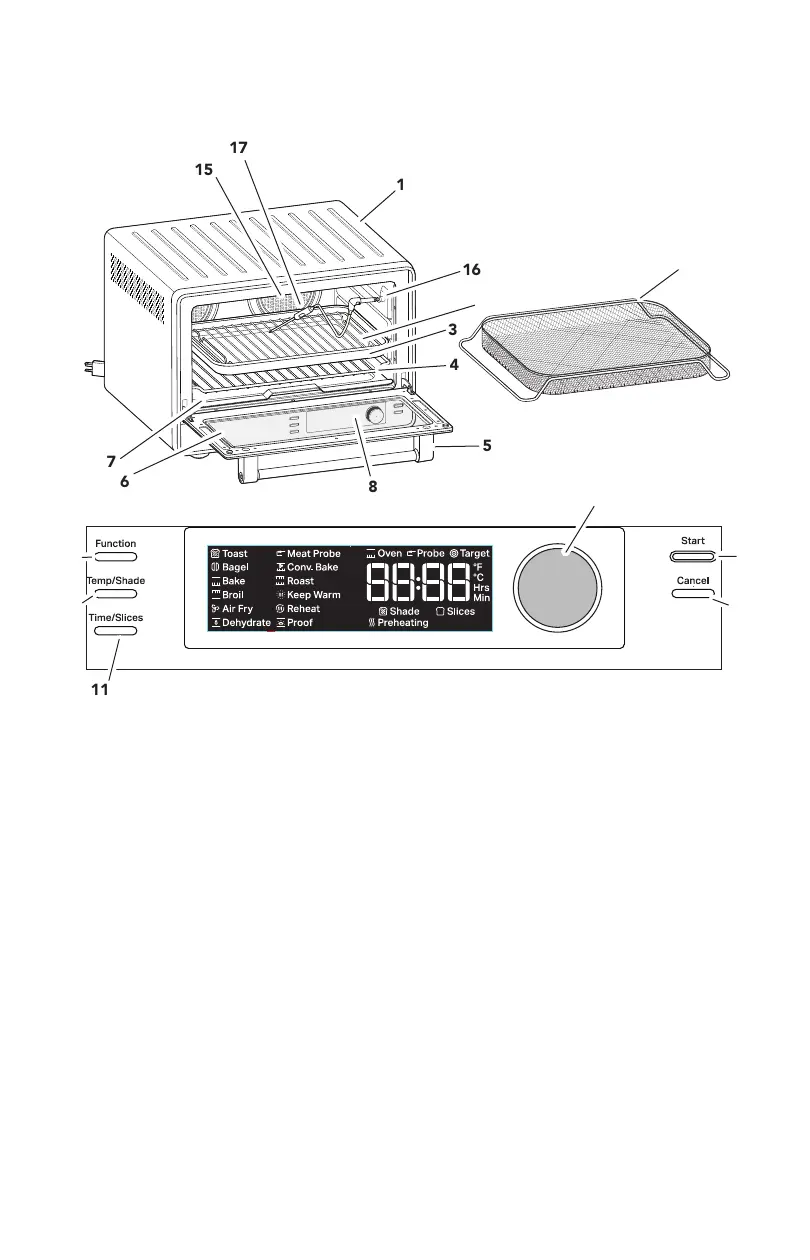

PARTS AND FEATURES
* Adjust the time by 1 minute for the rst hour and then by 5 minutes for the next hour.
Adjust by 5 °F or 1 °C temperature, depending on the unit selected.
1 Cool down surface for Oven Rack
2 Chrome-plated Steel Broiling Rack
3 Enamel Multipurpose Pan
4 Chrome-plated Steel Oven Rack
5 Stainless Steel Door Handle
6 Toughened Glass Window
7 Removable Crumb Tray
8 High-contrast LCD Display
9 Start: Push to start selected function.
10 Cancel: Stops selected function.
11 Time/Slices: Push to select time or
number of slices.
12 Temp/Shade: Push to select
temperature or shade.
13 Function: Push to select function.
14 Knob: Rotate and press to select
function, temperature, shade, time, or
number of slices*.
15 Convection Fans
16 Plug for Temperature Probe
17 Temperature Probe
18 Air Fry Basket
10
High-contrast LCD Display
4
1
6
5
16
3
8
15
17
7
2
14
11
9
10
12
13
18
