7

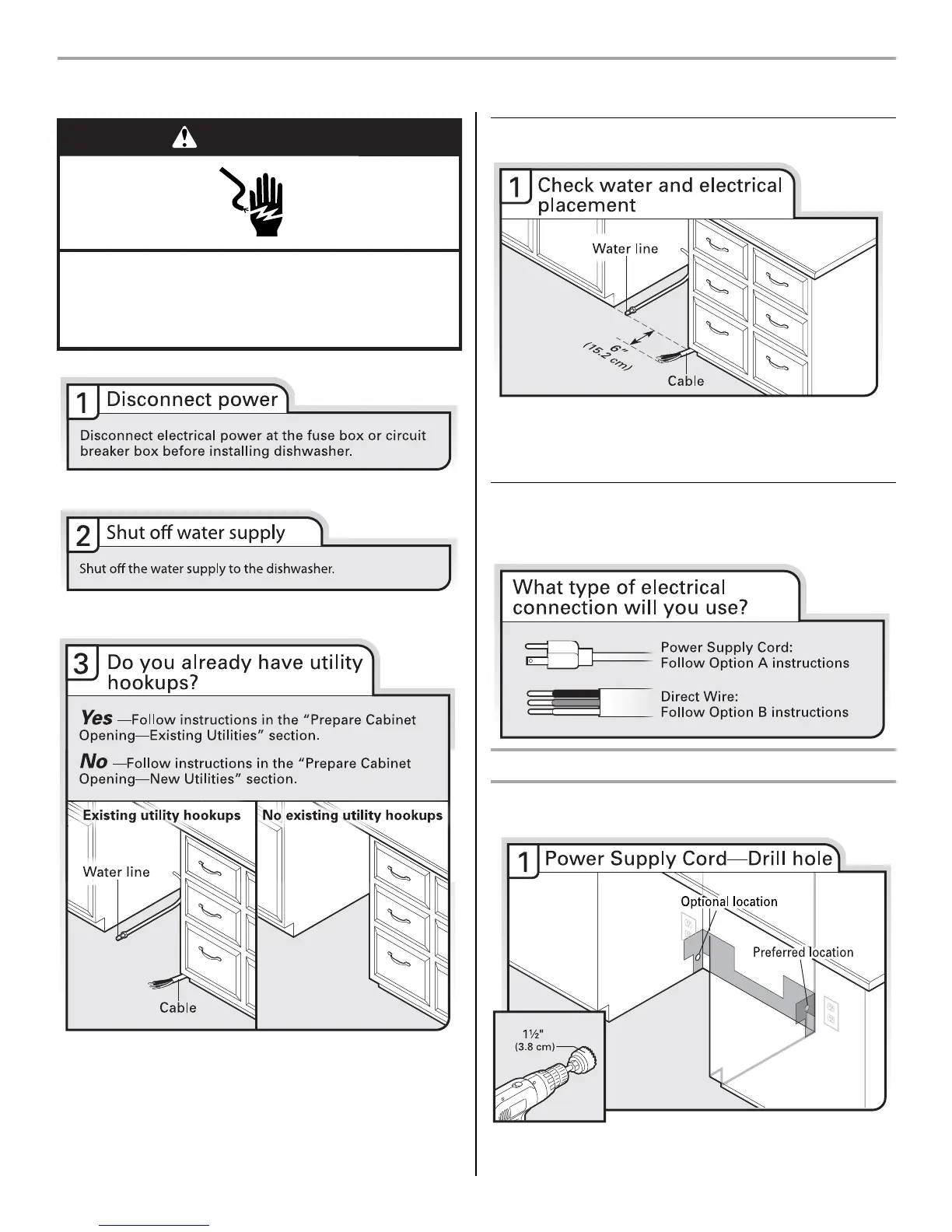

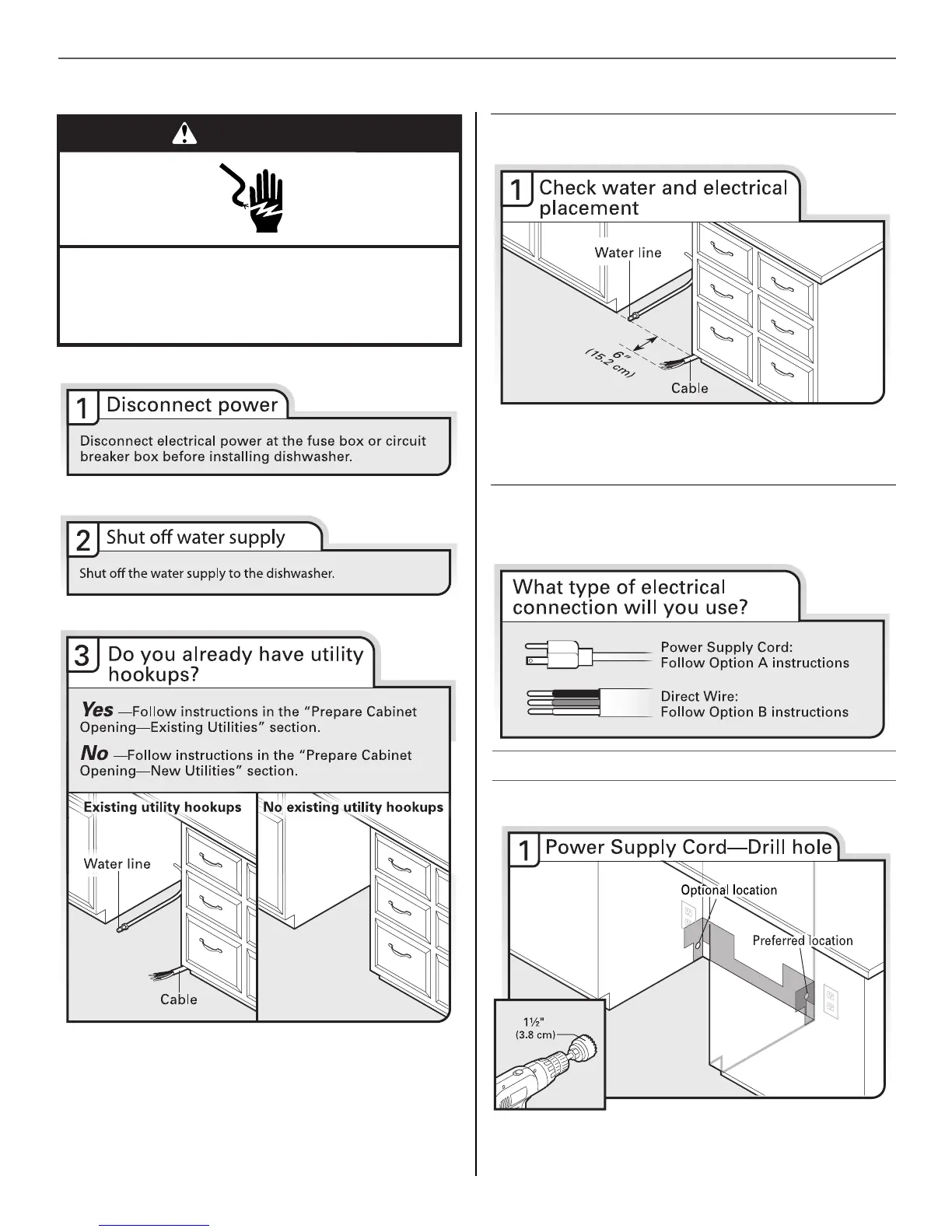

INSTALLATION INSTRUCTIONS
Prepare Cabinet Opening—Existing Utilities
If the water line and the cable extend to the locations shown,
proceed to the “Install Drain Hose” section. If they do not reach far
enough, follow the instructions in the “Prepare Cabinet Opening—
New Utilities” section.
Prepare Cabinet Opening—New Utilities
Prepare and route the electrical supply
Option A, Power Supply Cord:
NOTE: A grounded 3 prong outlet is required inside a cabinet next
to the dishwasher cabinet opening.
Drill a 1¹⁄₂" (3.8 cm) hole in cabinet side or rear.
See “Product and Cabinet Opening Dimensions” section.
WARNING
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
Electrical Shock Hazard
