KitchenAid KDRP467KSS09 - Page 4

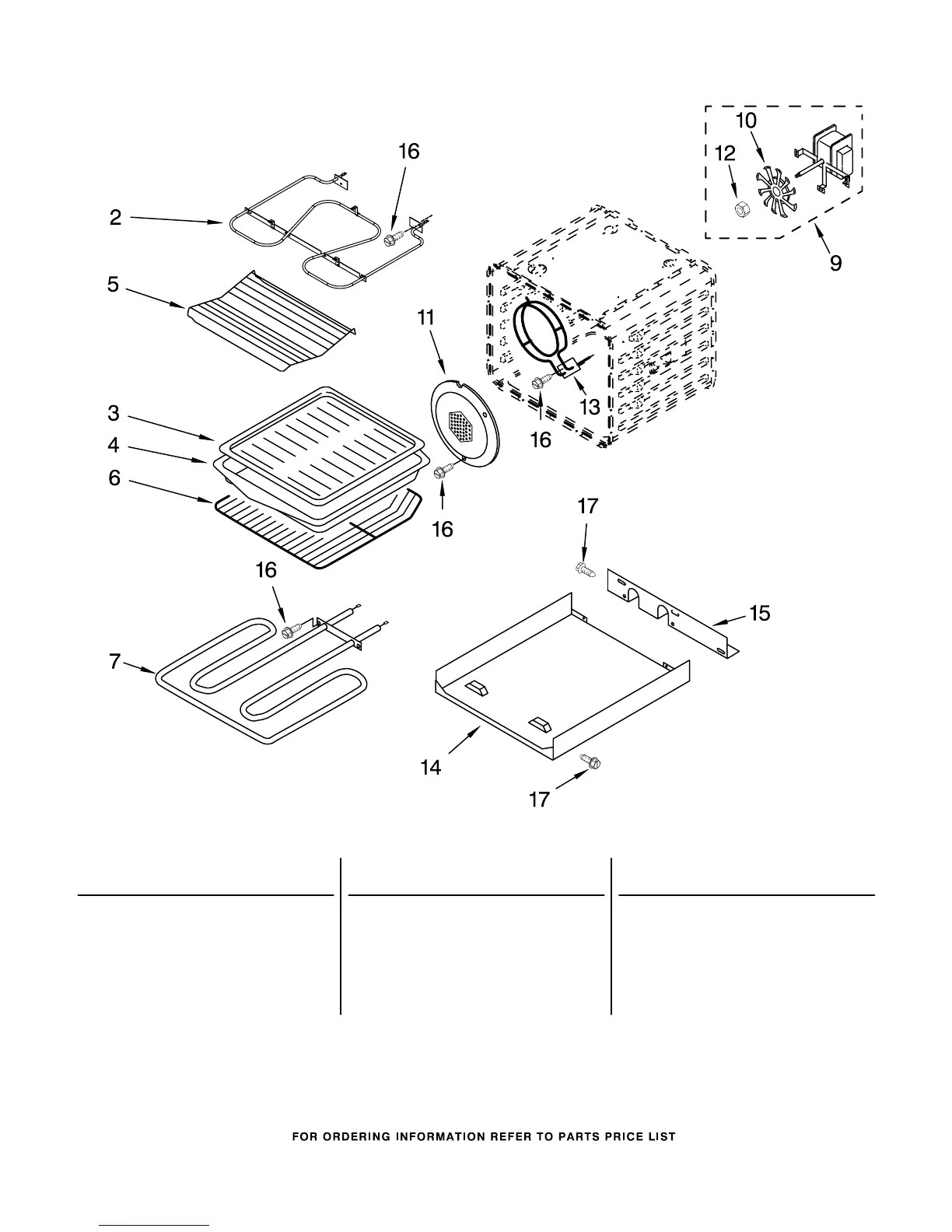

INTERNAL OVEN PARTS
4
For Model:KDRP467KSS09
(Stainless Steel)
8186532
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
2 4456105 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 9759437 Rack, Oven
7 8300204 Element, Hidden
Bake
9 4451583 Motor, Convection
10 4452226 Blade, Fan
11 4448418 Cover, Fan
12 4452227 Nut
13 9762242 Element,
Convection
14 8300799 Tray, Hidden
Bake
15 8300800 Cover, Access
16 4449154 Screw, 8−32 x .440
17 4449809 Screw, 8−18 x 3/8
