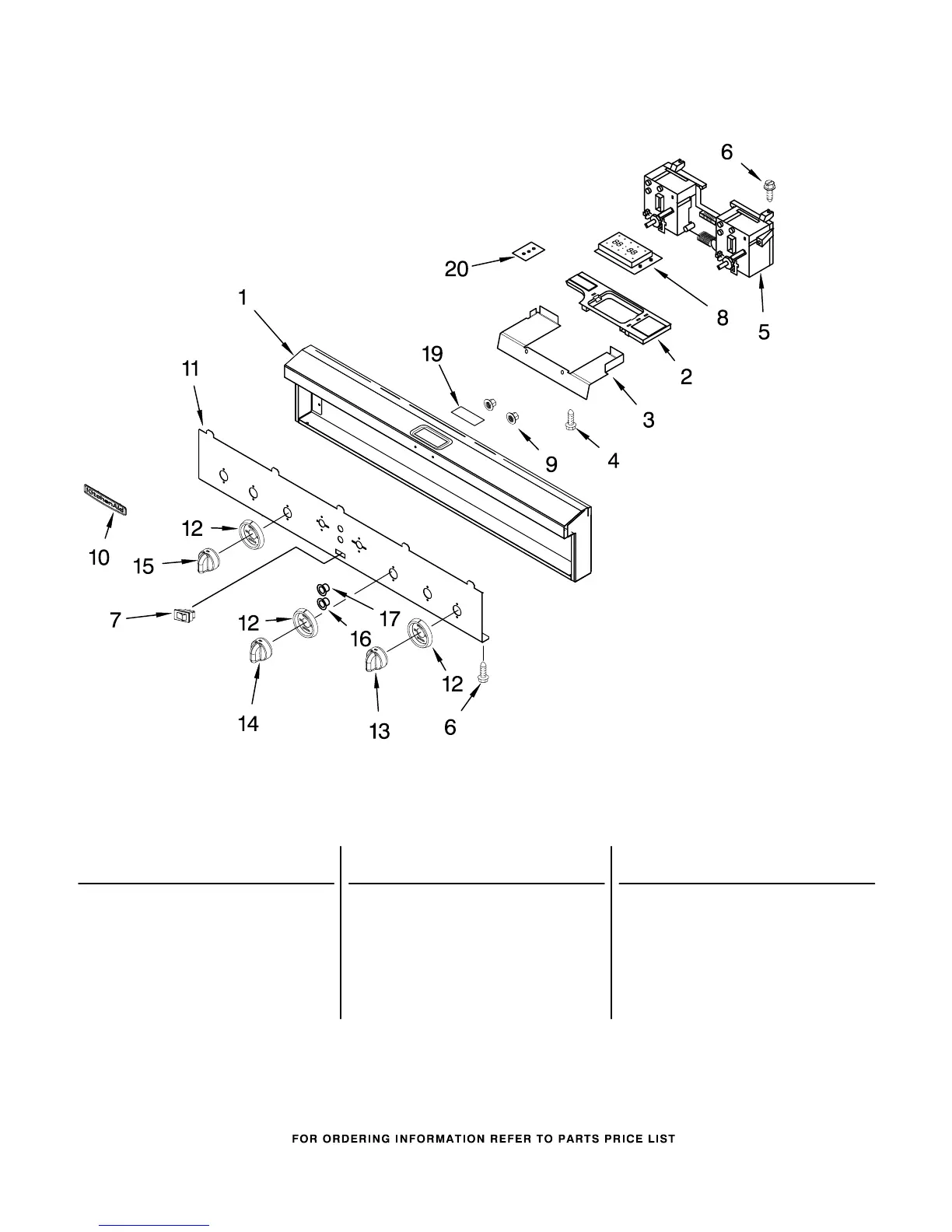

CONTROL PANEL PARTS
5
For Model:KDRP467KSS09
(Stainless Steel)
8186532
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4457250 Panel, Control
2 4453000 Bracket, Display
3 8300805 Bracket, Display
Mounting
4 3196537 Screw, 8−18 x 3/8
5 8300203 Control, Zodiac
6 3196184 Screw
7 4452842 Switch, Rocker
8 4452999 Module, Display
9 2004333 Palnut
10 2005292 Nameplate
11 4457249 Face, Control
Panel
12 Bezel, Knob
4455192 (Control Knob)
4457152 (T−Stat Knob)
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4457218 Button, Cancel
17 4452997 Button, Enter
19 4455806 Glass, Display
20 3192439 Seal, Limiter
To Next Page
