KitchenAid KDRP467KSS09 - Page 6

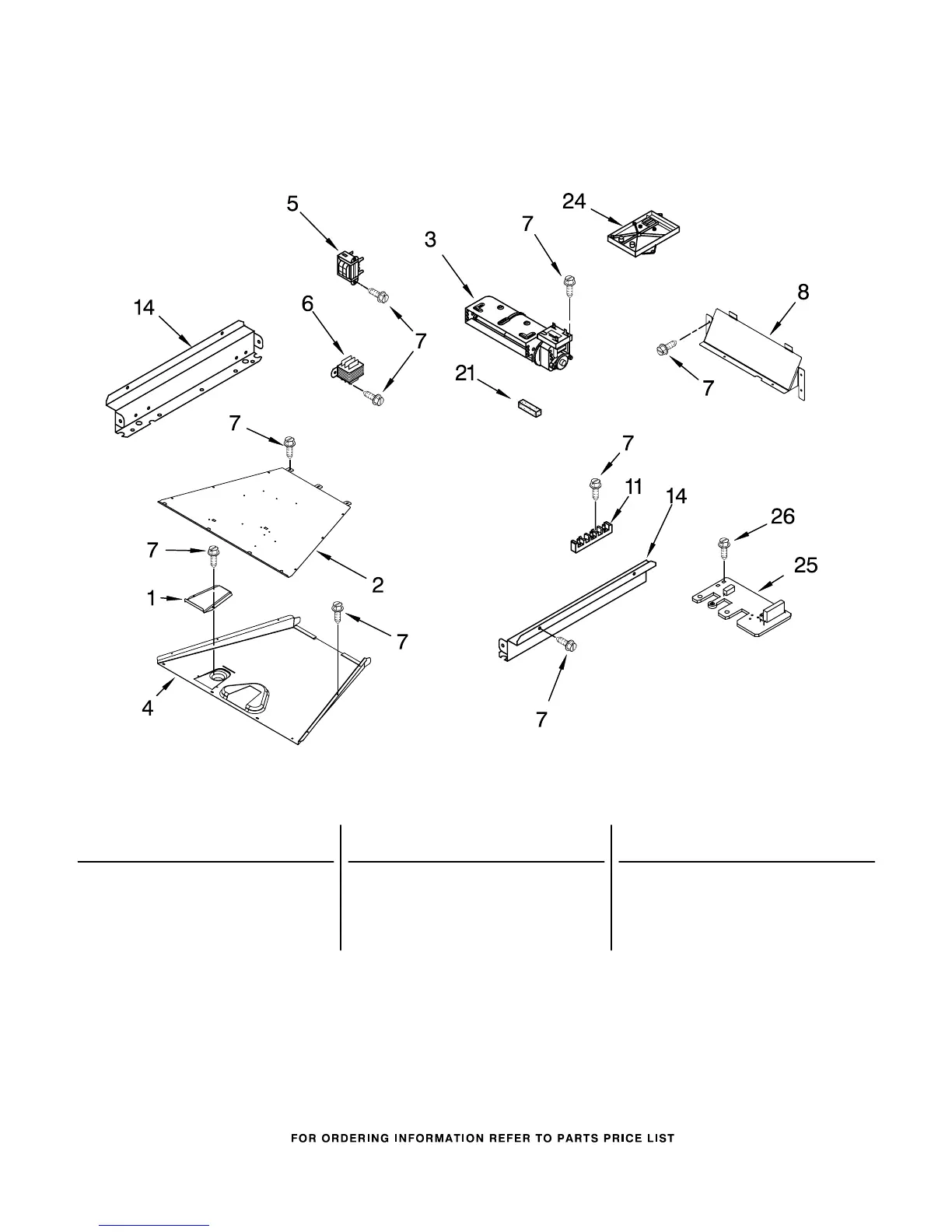

TOP VENTING PARTS
6
For Model:KDRP467KSS09
(Stainless Steel)
8186532
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 9758955 Vent, Exhaust
2 9758954 Vent−Top
3 9759837 Blower 60MM
4 9758953 Vent−Bottom
5 4452104 Transformer, Light
6 8300642 Transformer,
Control
7 4449809 Screw, 8−18 x 3/8
8 9758956 Bracket, Blower
11 4449868 Block, Terminal
14 4452442 Side, Control Top
21 4451758 Seal, Foam
24 8302210 Control, Zodiac
25 4451985 Suppressor
26 3400080 Screw (4)
