KitchenAid KDRP467KSS09 - Chassis Parts

9

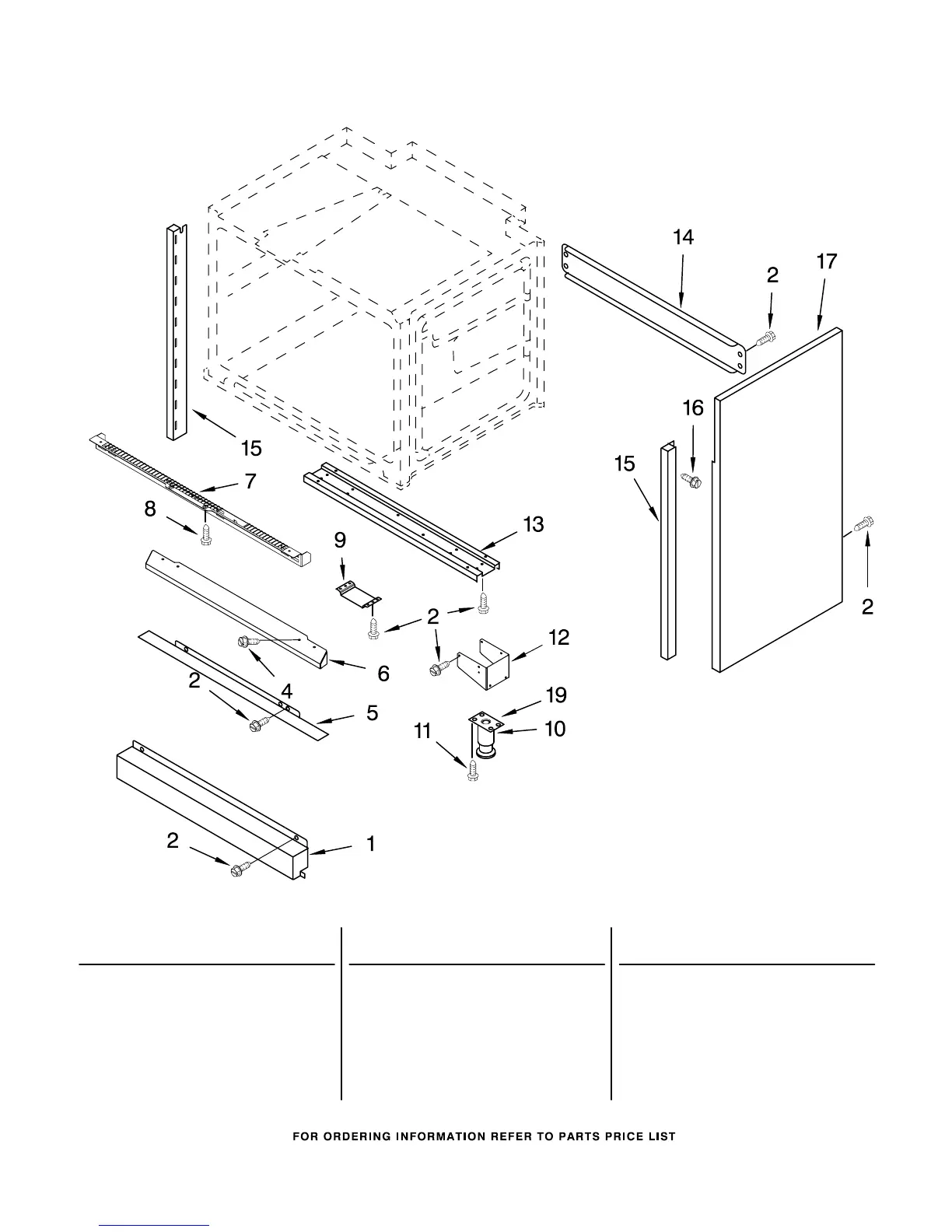

CHASSIS PARTS
For Model:KDRP467KSS09
(Stainless Steel)
8186532
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 4452803 Vent, Bottom
Lower
2 4449809 Screw, 8−18 x 3/8
4 3400837 Screw, 8−18 x 3/8
5 4452801 Deflector, Center
6 8300978 Vent, Bottom Upper
7 9762612 Vent, Center
8 3196537 Screw, 8−18 x 3/8
9 9759092 Bracket, Mounting
Regulator
10 9759117 Foot Assembly
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
13 4455648 Support, Channel
14
W10015720 Brace, Rear
15 Trim, Front
4452804 Right Side
4453205 Left Side
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
9761934 Right Side
9761933 Left Side
19 9759118 Plate
