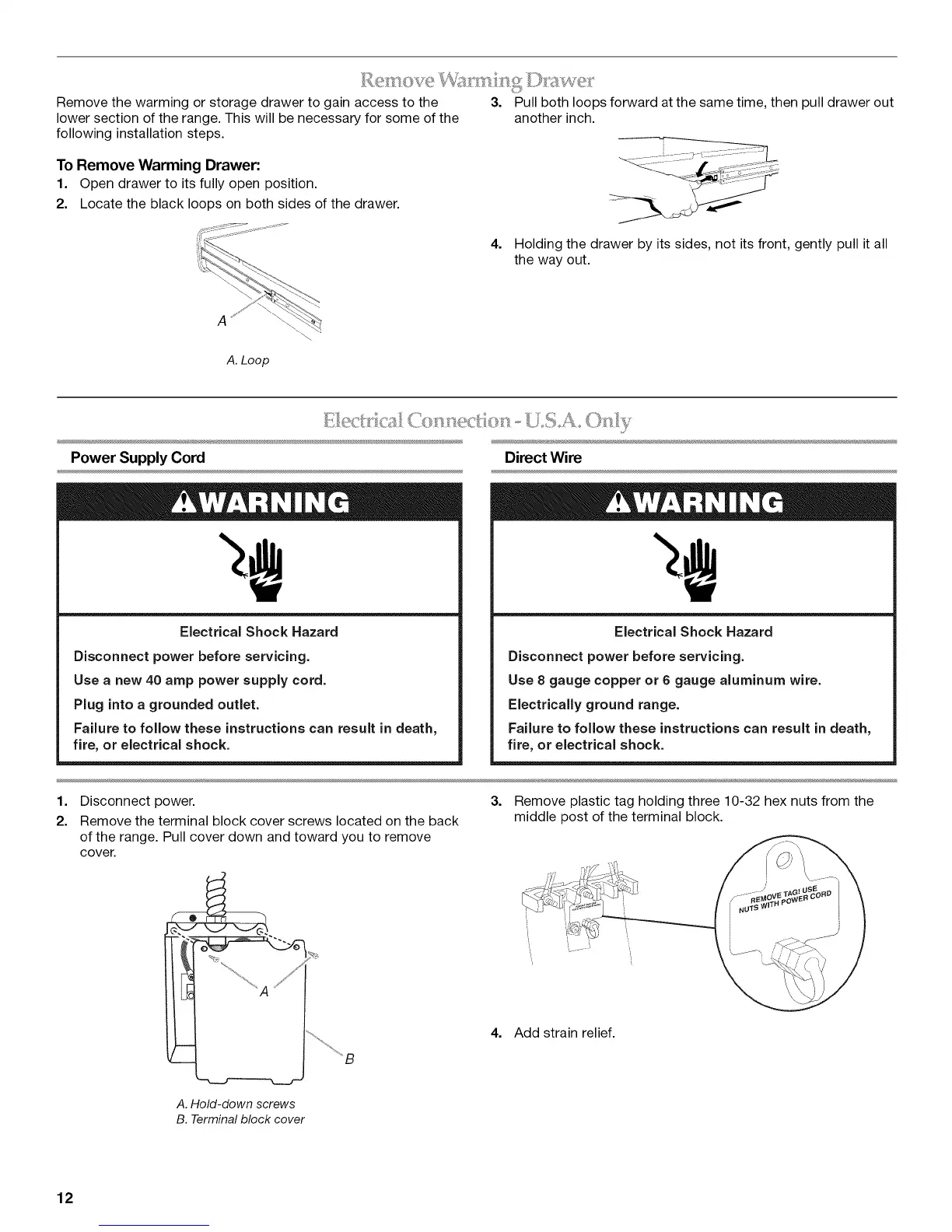

Remove the warming or storage drawer to gain access to the 3. Pull both loops forward at the same time, then pull drawer out
lower section of the range. This will be necessary for some of the another inch.
following installation steps.
To Remove Warming Drawer:
1. Open drawer to its fully open position.
2. Locate the black loops on both sides of the drawer.
4. Holding the drawer by its sides, not its front, gently pull it all
the way out.
A
\
A. Loop
Power Supply Cord
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Direct Wire
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge aluminum wire.
Electrically ground range.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1.
2.
Disconnect power.
Remove the terminal block cover screws located on the back
of the range. Pull cover down and toward you to remove
cover.
A. Hold-down screws
B. Terminalblock cover
3.
Remove plastic tag holding three 10-32 hex nuts from the
middle post of the terminal block.
4. Add strain relief.
12
