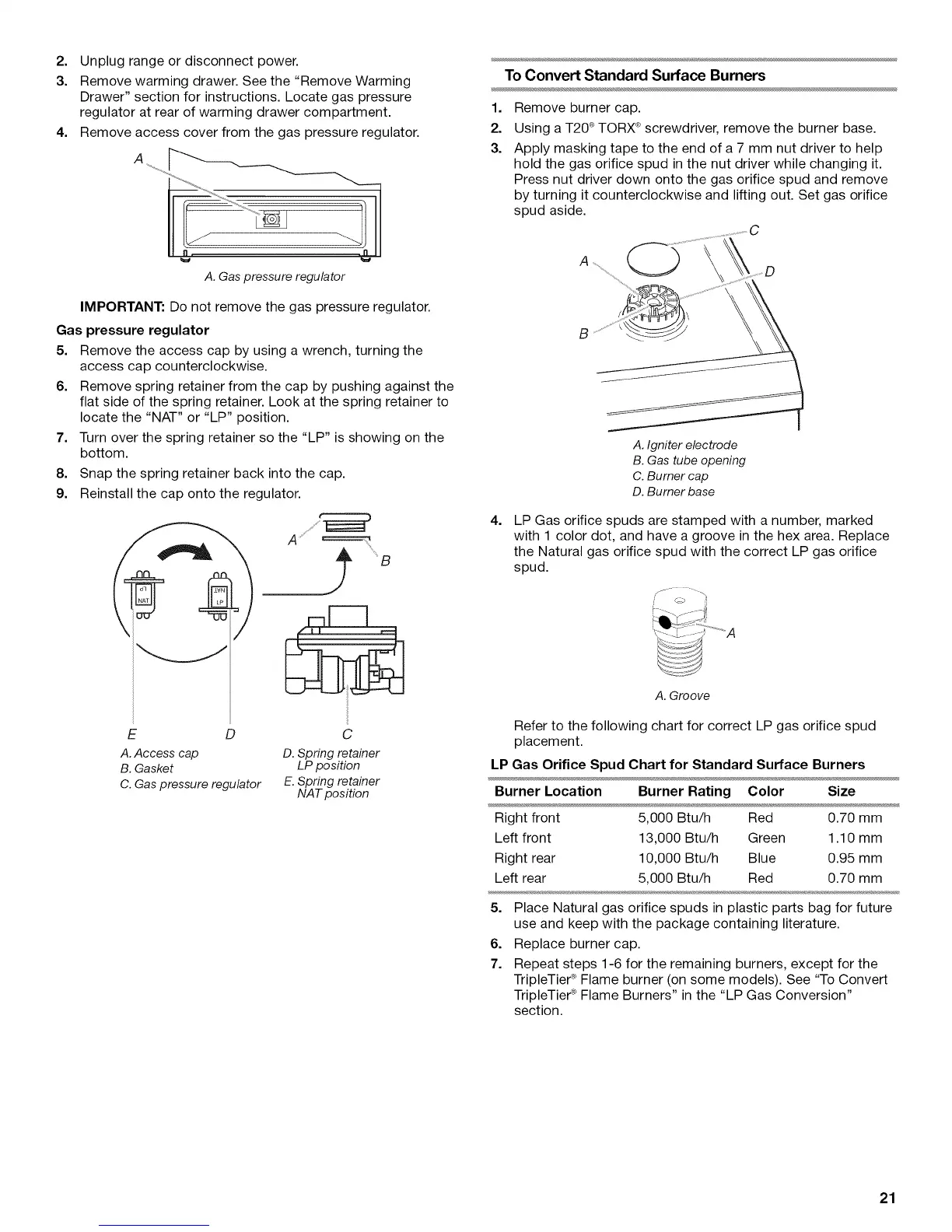

Unplug range or disconnect power.
Remove warming drawer. See the "Remove Warming
Drawer" section for instructions. Locate gas pressure
regulator at rear of warming drawer compartment.
Remove access cover from the gas pressure regulator.
A
A. Gas pressure regulator
IMPORTANT: Do not remove the gas pressure regulator.
Gas pressure regulator
5. Remove the access cap by using a wrench, turning the
access cap counterclockwise.
6. Remove spring retainer from the cap by pushing against the
flat side of the spring retainer. Look at the spring retainer to
locate the "NAT" or "LP" position.
7. Turn over the spring retainer so the "LP" is showing on the
bottom.
8. Snap the spring retainer back into the cap.
9. Reinstall the cap onto the regulator.
E D
A. Access cap D. Spring retainer
B. Gasket LP position
C. Gas pressure regulator E. Spring retainer
NAT position
To Convert Standard Surface Burners
1. Remove burner cap.
2. Using a T20 ®TORX ®screwdriver, remove the burner base.
3. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Press nut driver down onto the gas orifice spud and remove
by turning it counterclockwise and lifting out. Set gas orifice
spud aside.
B
4=
A. Igniter electrode
B. Gas tube opening
C. Burner cap
D. Burner base
LP Gas orifice spuds are stamped with a number, marked
with 1 color dot, and have a groove in the hex area. Replace
the Natural gas orifice spud with the correct LP gas orifice
spud.
A. Groove
Refer to the following chart for correct LP gas orifice spud
placement.
LP Gas Orifice Spud Chart for Standard Surface Burners
Burner Location Burner Rating Color Size
Right front 5,000 Btu/h Red 0.70 mm
Left front 13,000 Btu/h Green 1.10 mm
Right rear 10,000 Btu/h Blue 0.95 mm
Left rear 5,000 Btu/h Red 0.70 mm
5. Place Natural gas orifice spuds in plastic parts bag for future
use and keep with the package containing literature.
6. Replace burner cap.
7. Repeat steps 1-6 for the remaining burners, except for the
TripleTier ®Flame burner (on some models). See "To Convert
TripleTier ®Flame Burners" in the "LP Gas Conversion"
section.
