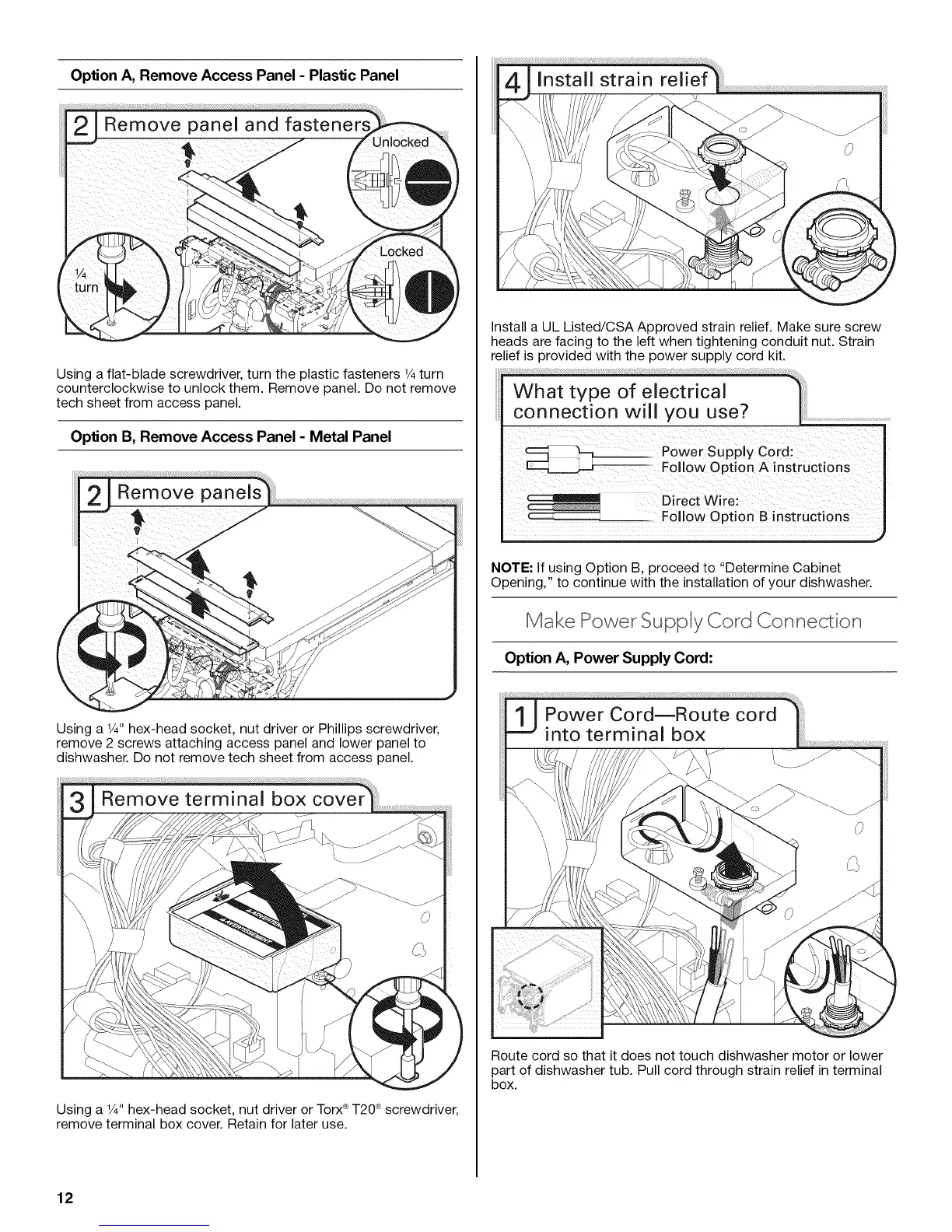

OptionA,RemoveAccessPanel- Plastic Panel
Using a flat-blade screwdriver, turn the plastic fasteners 1/4turn
counterclockwise to unlock them. Remove panel. Do not remove
tech sheet from access panel.
Option B, Remove Access Panel - Metal Panel
Using a 1/4"hex-head socket, nut driver or Phillips screwdriver,
remove 2 screws attaching access panel and lower panel to
dishwasher. Do not remove tech sheet from access panel.
® ®
Using a 1/4"hex-head socket, nut driver or Torx T20 screwdriver,
remove terminal box cover. Retain for later use.
Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
What type of electrical
connection will you use?
[
_ Power Supply Cord:
Follow Option A instructions
NOTE: If using Option B, proceed to "Determine Cabinet
Opening," to continue with the installation of your dishwasher.
Make Power Suppy Cord Connect on
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor or lower
part of dishwasher tub. Pull cord through strain relief in terminal
box.
