KitchenAid KDTM354ESS Installation Instructions

10

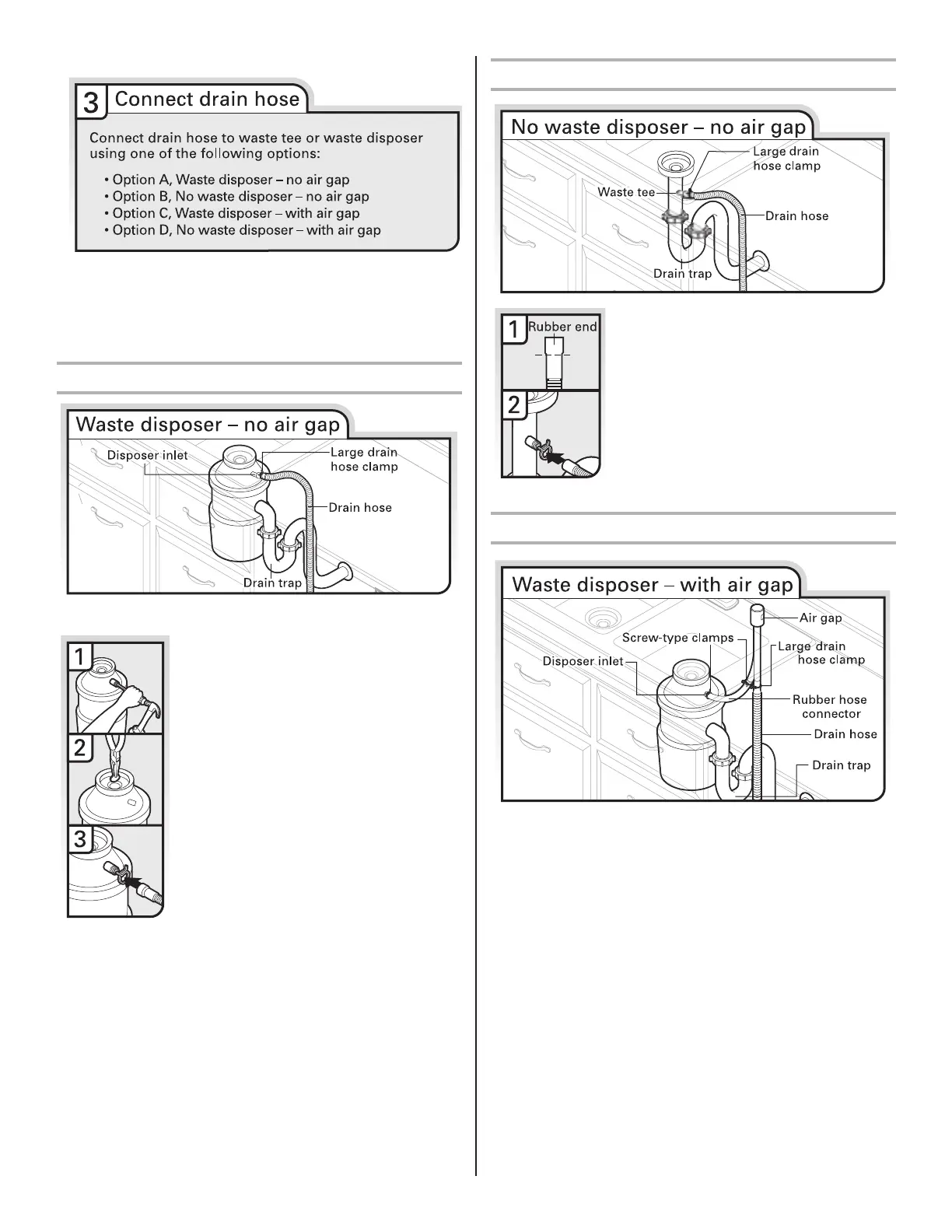

IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the floor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the floor.
Option A, Waste Disposer – No Air Gap
Helpful Tip: Remove disposer knockout plug.
Option B, No Waste Disposer – No Air Gap
Option C, Waste Disposer – With Air Gap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Attach drain hose to disposer inlet
with large drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
1. Fit rubber end of drain hose to waste
tee and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach rubber end of drain hose to
waste tee with a large drain hose
clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut,
use a 1¹⁄₂" to 2" (3.8 to 5 cm) screw-
type clamp (not provided).

KitchenAid KDTM354ESS Specifications

General

Style	built-in dishwashers
Color	black
Load Capacity	15
Number of Cycles	6
Cycle Selections	express wash, light/china, normal, prowash, rinse only, tough
Options/Settings	1-24 hour delay, control lock, heated dry, hi temp wash, prodry, proscrub, sani rinse
Noise level	44 decibels adjusted
Delay Start	yes
Number of Racks	2
Water Filter	yes
Sanitize Settings	yes
Smart Home	no
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24 3/4 inches
Height	34 1/2 inches
Width	23 7/8 inches
Net Weight	102.1 pounds
