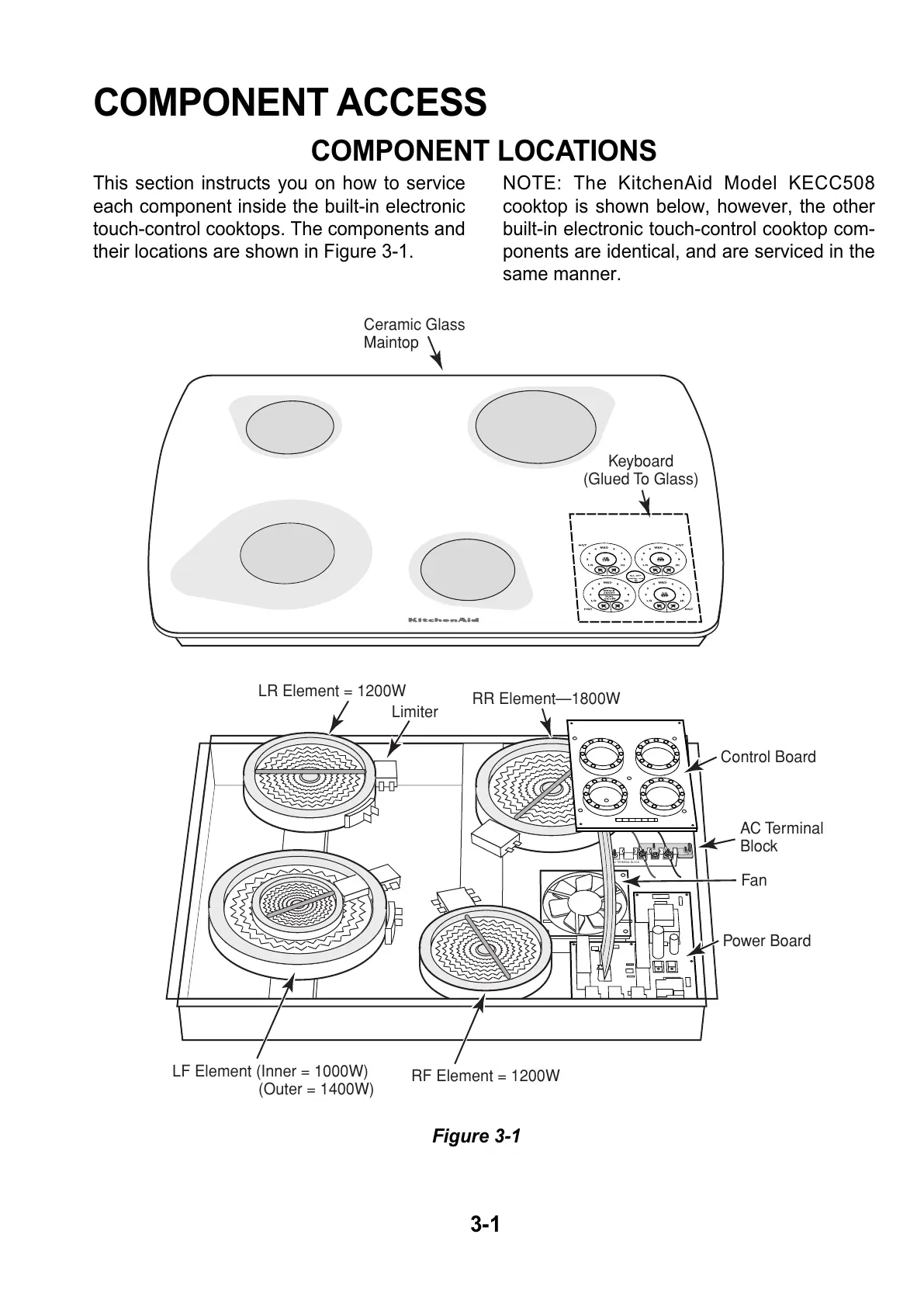

3-1
This section instructs you on how to service
each component inside the built-in electronic
touch-control cooktops. The components and
their locations are shown in Figure 3-1.
COMPONENT ACCESS
COMPONENT LOCATIONS
NOTE: The KitchenAid Model KECC508
cooktop is shown below, however, the other
built-in electronic touch-control cooktop com-
ponents are identical, and are serviced in the
same manner.
AC TERMINAL BLOCK
Ceramic Glass
Maintop
Power Board
Control Board
AC Terminal
Block
Fan
LR Element = 1200W
LF Element (Inner = 1000W)
(Outer = 1400W)
RF Element = 1200W
RR Element—1800W
Limiter
Keyboard
(Glued To Glass)
Figure 3-1
