KitchenAid KECC586G - Removing the Control & Power Boards & AC Terminal Block

3-3
WARNING
Electrical Shock Hazard
Disconnect from electrical supply before ser-
vicing unit.
Failure to do so could result in death or
electrical shock.
CAUTION: When you work on the cooktop, be
careful when handling the sheet metal parts.
Sharp edges may be present, and you can cut
yourself if you are not careful.

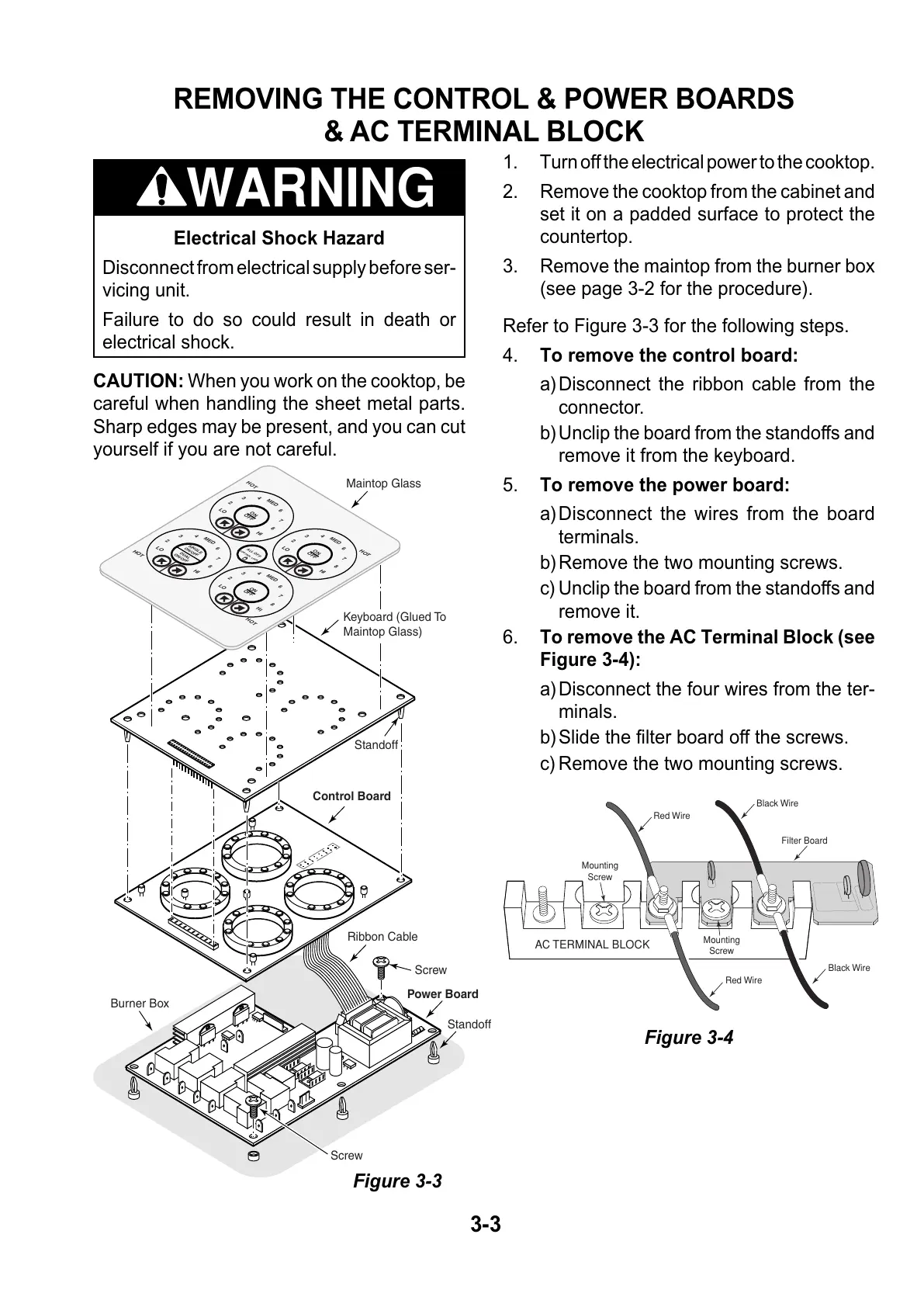

REMOVING THE CONTROL & POWER BOARDS
& AC TERMINAL BLOCK
ON
OFF
HOT
LO
2
3
4
MED
6
7
8
HI
ON
OFF
HOT
LO
2
3
4
MED
6
7
8
HI
ON
OFF
HOT
LO
2
3
4
MED
6
7
8
HI
SINGLE
ON/OFF
DUAL
ON/OFF
HOT
LO
2
3
4
MED
6
7
8
HI
ALL OFF
CONTROL LOCK
Maintop Glass
Control Board
Standoff
Power Board
Standoff
Keyboard (Glued To
Maintop Glass)
Ribbon Cable
Burner Box
Screw
Screw
1. Turn off the electrical power to the cooktop.
2. Remove the cooktop from the cabinet and
set it on a padded surface to protect the
countertop.
3. Remove the maintop from the burner box
(see page 3-2 for the procedure).
Refer to Figure 3-3 for the following steps.
4. To remove the control board:
a)Disconnect the ribbon cable from the
connector.
b)Unclip the board from the standoffs and
remove it from the keyboard.
5. To remove the power board:
a)Disconnect the wires from the board
terminals.
b)Remove the two mounting screws.
c) Unclip the board from the standoffs and
remove it.
6. To remove the AC Terminal Block (see
Figure 3-4):
a)Disconnect the four wires from the ter-
minals.
b)Slide the filter board off the screws.
c) Remove the two mounting screws.
Figure 3-3
Red Wire
Mounting
Screw
Mounting
Screw
Red Wire
Black Wire
Black Wire
Filter Board
AC TERMINAL BLOCK
Figure 3-4
