KitchenAid KECC586G - Page 30

6-2

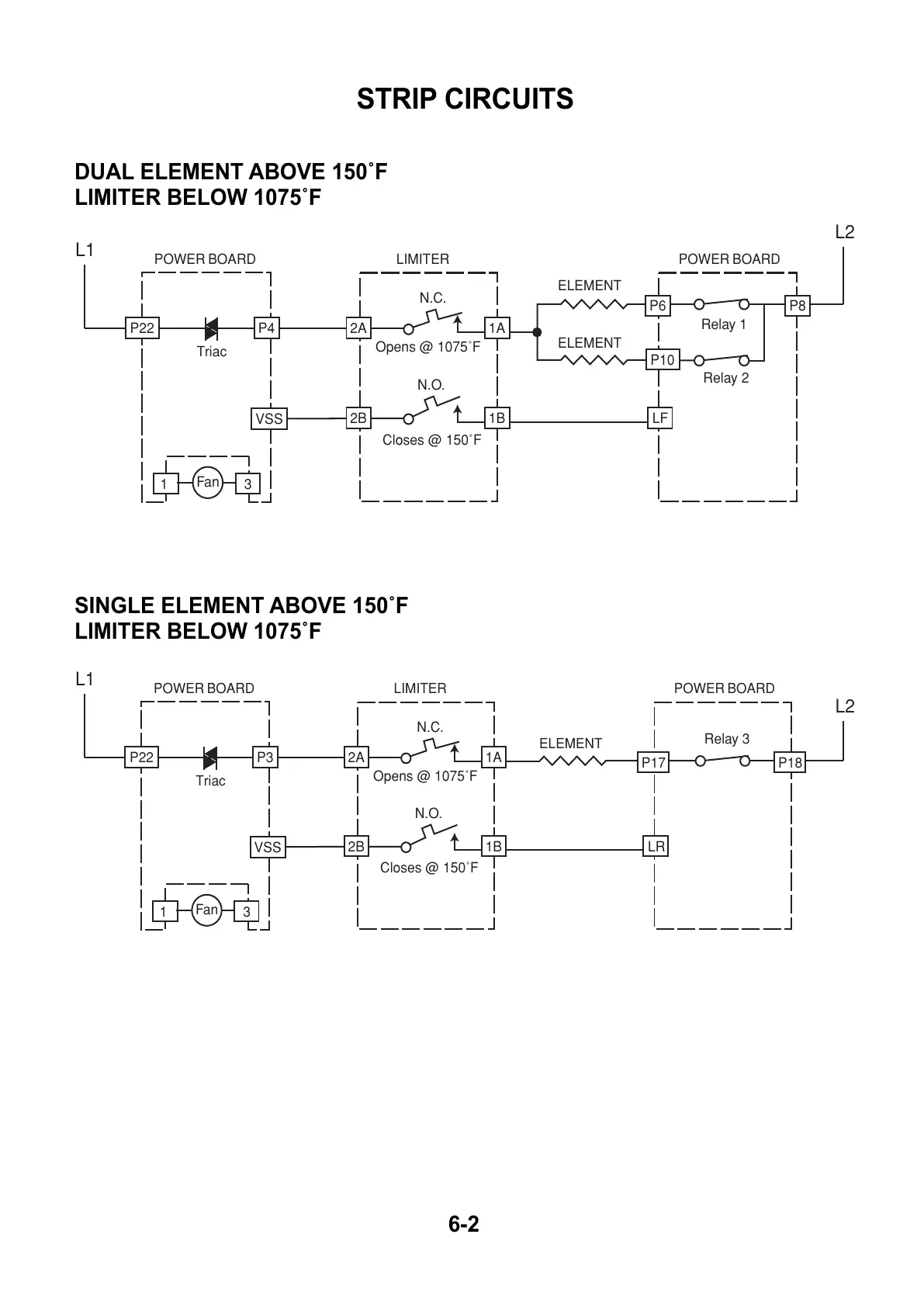

STRIP CIRCUITS
L1
L2
Triac
POWER BOARD LIMITER POWER BOARD
P22 P4 2A
31
Fan
1A
N.C.
2B 1B LF
N.O.
Opens @ 1075˚F
Closes @ 150˚F
VSS
P10
P6
Relay 2
Relay 1
P8
ELEMENT
ELEMENT
DUAL ELEMENT ABOVE 150˚F
LIMITER BELOW 1075˚F
L1
L2
Triac
POWER BOARD LIMITER
ELEMENT
POWER BOARD
P22 P3 2A
31
Fan
1A
N.C.
2B 1B LR
N.O.
Opens @ 1075˚F
Closes @ 150˚F
VSS
Relay 3
P18P17
SINGLE ELEMENT ABOVE 150˚F
LIMITER BELOW 1075˚F
