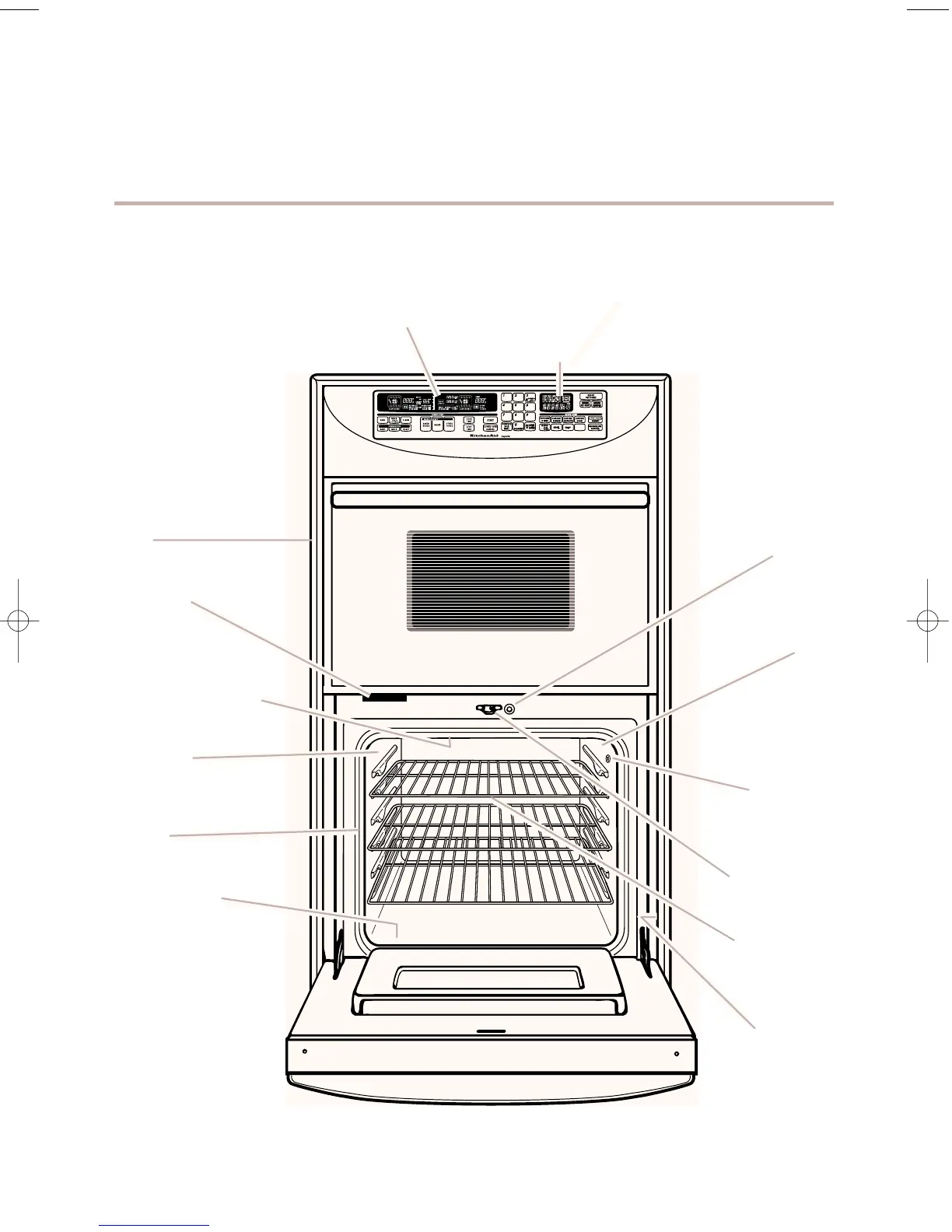

KitchenAid KEMS308 - Getting to Know Your Electric Convection Oven; Oven Parts and Features

CONVERSION
CONVECT
QUICK
REHEAT
5
Automatic oven
light switch
(on latch
assembly)
(p. 33)
Oven
light
(on right
oven wall)
(p. 33)
Temperature
probe jack
(p. 16)
Oven lock latch
Convection fan
and element
(not shown)
Model and
serial number plate
(on right
mounting rail)
Upper microwave
oven
Oven vent
(above oven
door) (p. 27)
Dual broil elements
(not shown)
Oven light
(on left oven wall)
(p. 33)
Gasket
(p. 28)
Bake element
(hidden under
oven cavity floor)
Lower convection oven
electronic oven controls
(p. 6)
Upper microwave oven
electronic oven controls
(see “Upper Microwave Oven
Use and Care Guide”)
Getting to Know Your
Electric Convection Oven
Oven parts and features
