MOTOR DAMPING GROMMET REPLACEMENT MOTOR DAMPING ISOLATOR REPLACEMENT
- 9 & 12 CUP FOOD PROCESSOR MODELS WITH
CAST MOTOR HOUSING -
- 9 & 12 CUP FOOD PROCESSORS WITH
SHEET METAL MOTOR HOUSING -

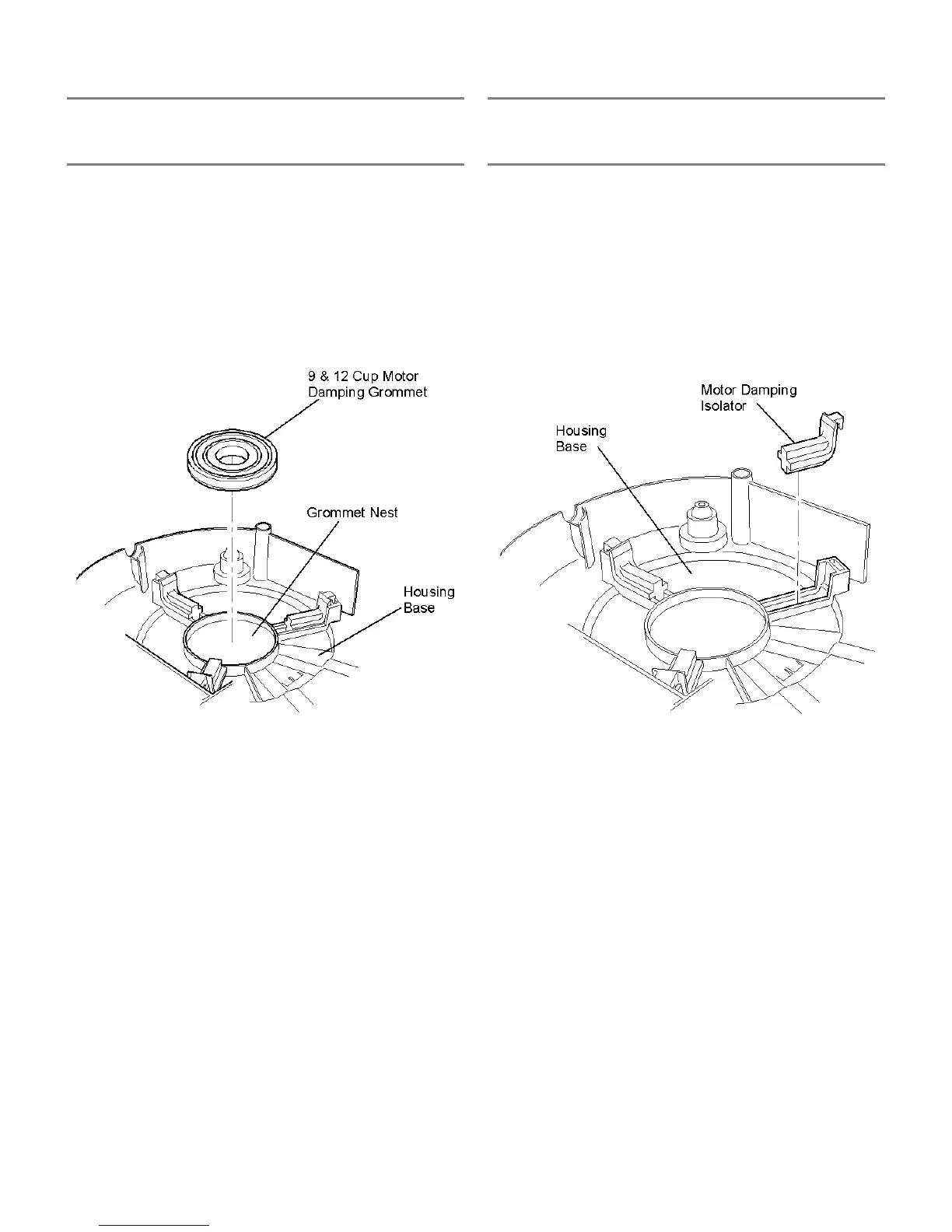

To replace the motor damping grommet: To replace any of the three (3) motor damping isolators:
1. Unplug the power cord and remove the housing base. 1. Unplug the power cord and remove the housing base.
2. If the motor damping grommet is worn or damaged,
remove it by pulling it from its nest in the center of the
housing base.
2. If any of the three (3) motor damping isolators are worn or
damaged, remove it by pulling it from its nest in the
housing base.
3. Replace the motor damping grommet into its nest in the
center of the housing base (flatter-surfaced side down)
making sure it is fully seated in the base.
3. Replace the motor damping isolator(s) into its nest in the
housing base (long side down) making sure it is fully
seated in its mounting position in the base.
8
