Rear Mounting – Blower Motor
NOTE: Optional blower motor rear-mounting position
(opposite side) for island cabinet locations. The blower motor
box assembly can be moved to the opposite side (rear)
of the vent box.

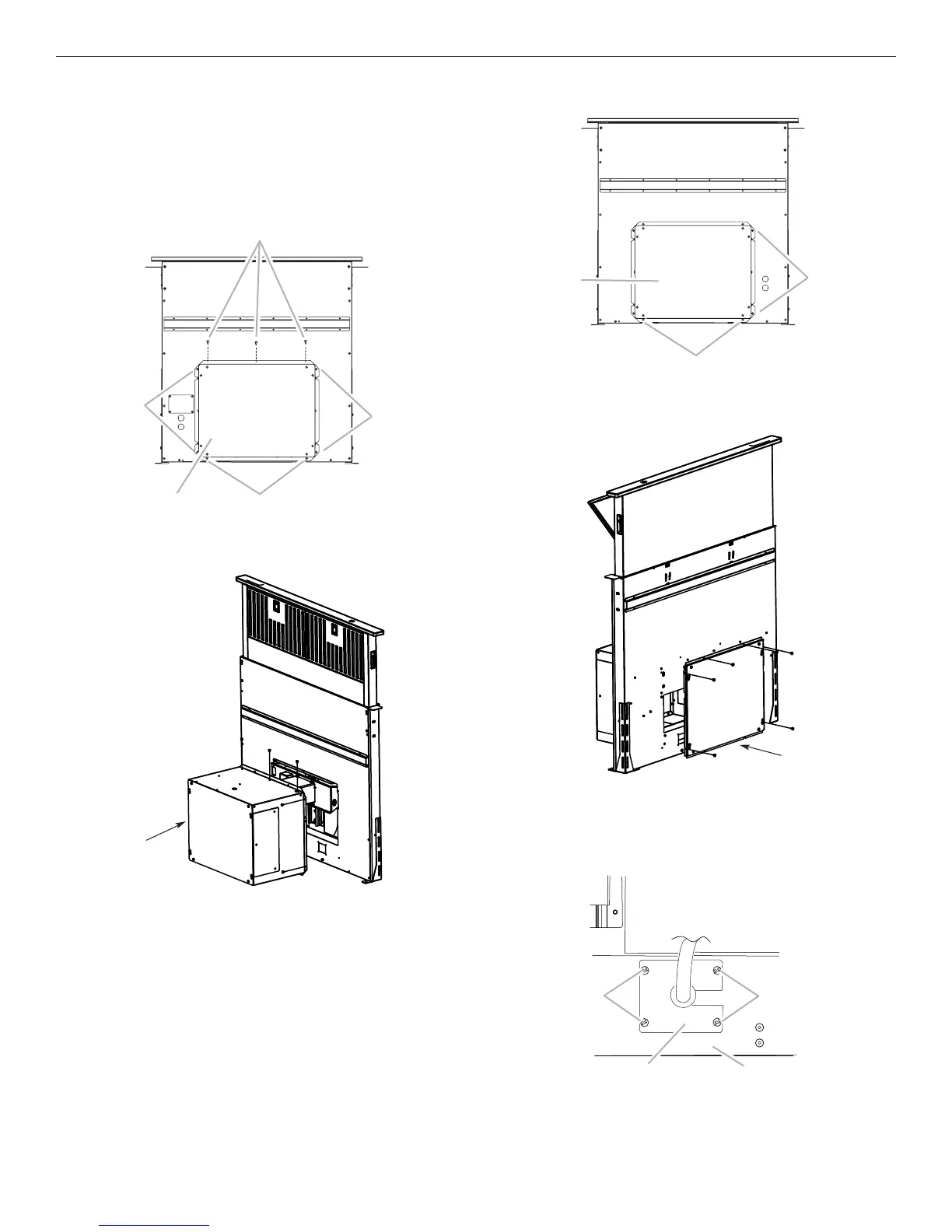

1. Remove 7 screws from the mounting flanges of the blower
motor box.
Front View
2. Lift blower motor box off the shoulder screws in the keyhole
slots. Disconnect wire connection from blower motor and set
blower motor box aside.
3. Remove 6 screws from the mounting flange of the ¼" (6.4 mm)
deep cover.
B
A
C
A
A
A. Screws (7)
B. Keyhole slot shoulder screws (2)
C. Blower motor box
A
A. Blower motor box
Rear View
4. Lift the ¼" (6.4 mm) deep cover off the shoulder screws
in the keyhole slots and set the cover aside.
5. Remove the screws from the wire-mounting plate.
B
A
C
A. Screws (6)
B. Keyhole slot shoulder screws (2)
C.
1
/
4
" (6.4 mm) deep cover
A
A. Deep cover
A
A
B
C
A. Screws
B. Wire-mounting plate
C. Blower motor box
