OPERATION
Built-In Single and Double Wall Ovens
n
2-9
Remember if you are working on a Double or Single oven the operaon is the same. Both Appliance
Managers in a double oven receive 120 VAC from the same power source. The LOGIC circuits are
common on both Appliance Manager boards and the customer uses the Keypad and user interface the
same way.
User Interface and Keypad

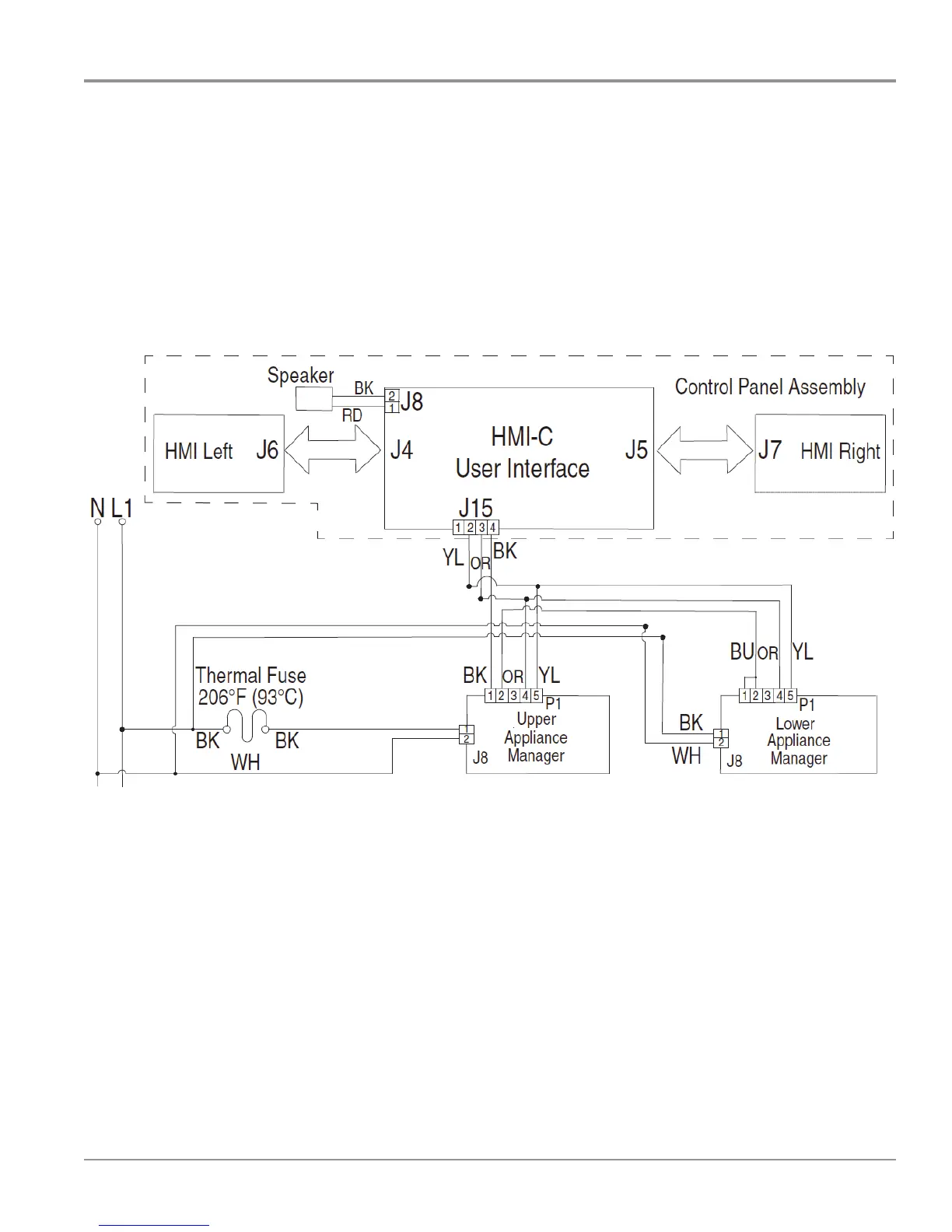

Double Oven User Interface with Upper and Lower Oven Appliance
Managers
