OPERATION
Built-In Single and Double Wall Ovens
n
2-5
The 240 VAC secon

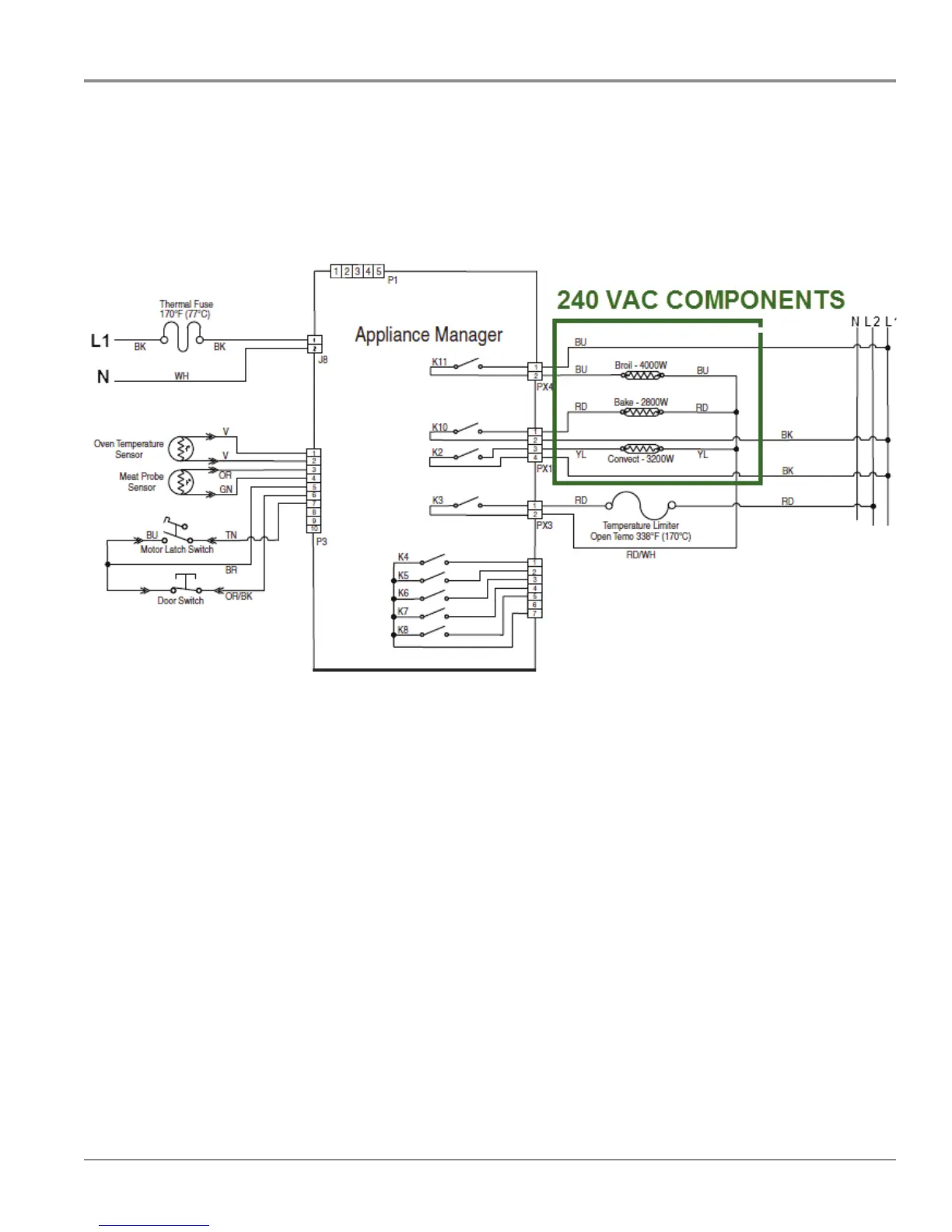

This diagram shows the 240 VAC components. All the cooking elements are included in this secon.
Noce all of these components go through the Temperature Limiter to the L2 side of the circuit. The
operaon of all these components are controlled by the Temperature Limiter (Safety), the Oven and
Meat Probe Sensors (Cooking results) and the User Interface (Customer’s request).
Only one path to the L2 side of the line to complete a circuit for all the heang elements. If the
Temperature Limiter opens, all 240 VAC components loose the circuit to the L2 line and will fail to
operate.

