KitchenAid KSSS36FJX00 - Freezer Liner Parts

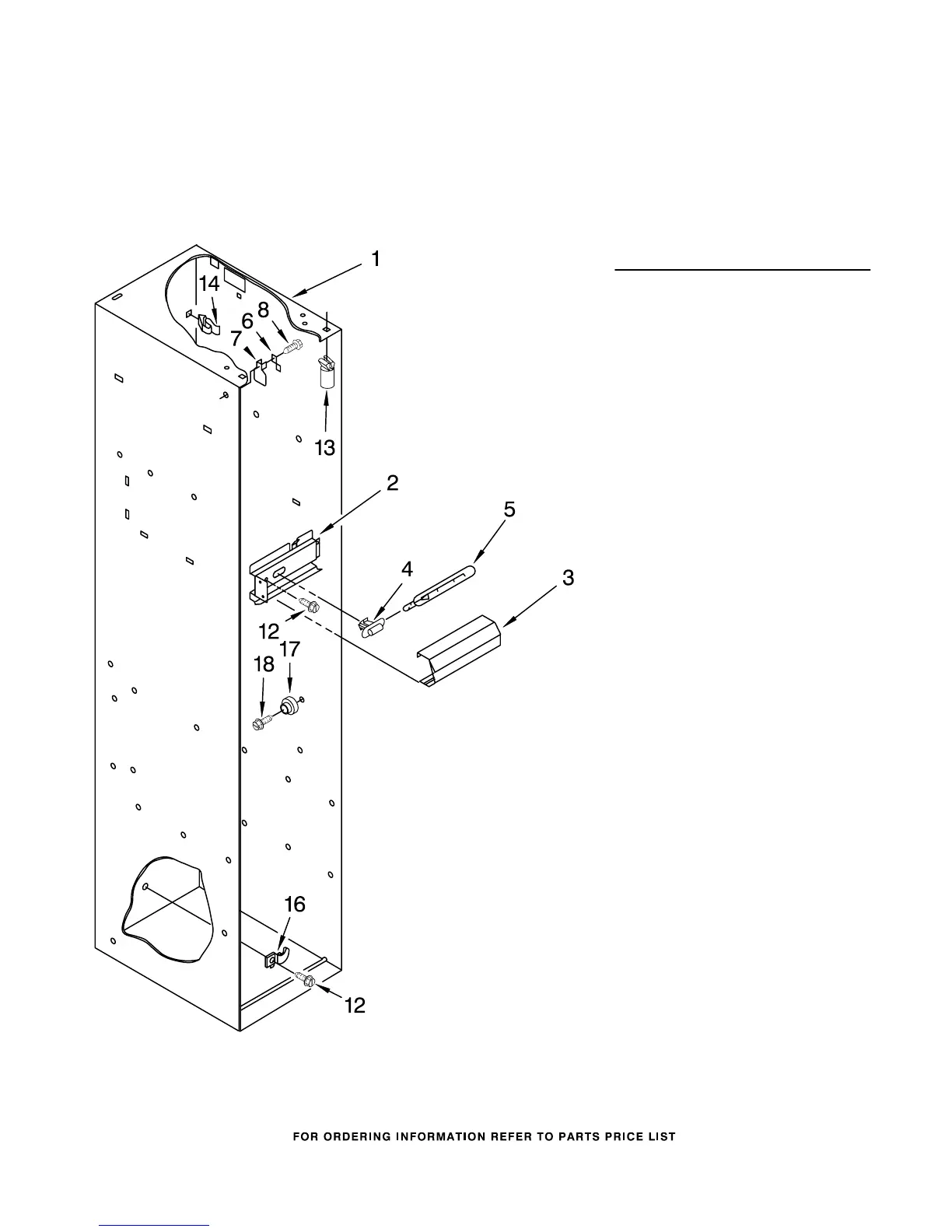

FREEZER LINER PARTS
4
For Models: KSSS36FJX00
(Brushed Aluminum)
4398891
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2005567 Bracket, Light
3 1113650 Lens
4 2005042 Light, Socket
5 548049 Light, Bulb
6 538533 Support Clip,
Icemaker (2)
7 2000193 Grommet, Screw (2)
8 488552 Screw
12 486194 Screw
13 1112591 Spacer, Control
Panel (3)
14 842534 Clip, Air Duct (4)
16 1112260 Support,
Evaporator
17 2004068 Stud, Shelf (20)
18 487559 Screw
