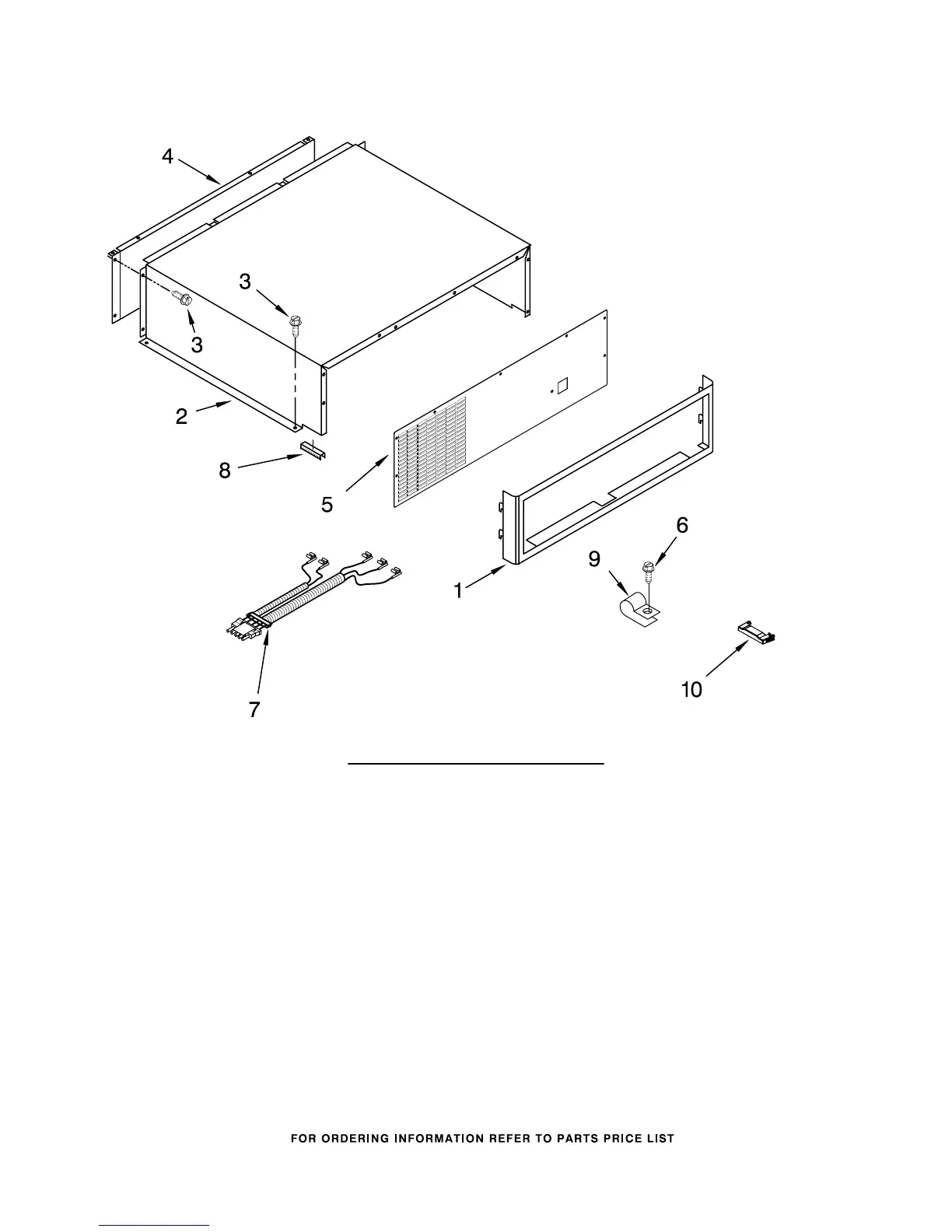

TOP GRILLE AND UNIT COVER PARTS
8
For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01
(White) (Black) (Etched Aluminum)
8199105
Illus. Part
No. No. DESCRIPTION
1 Top Grille
Assembly
2257403W White
2257403B Black
2257403X Etched Aluminum
2 2259320 Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5 2302974 Cover, Unit Front
6 487415 Screw
7 2187429 Wire Assembly
RC/FC Light Switch
8 2215910 Grommet, Flexible
9 489348 Clamp
10 2221297 Enclosure,
Connector
