KitchenAid KSSS48QMB01 - Control Panel Parts

7

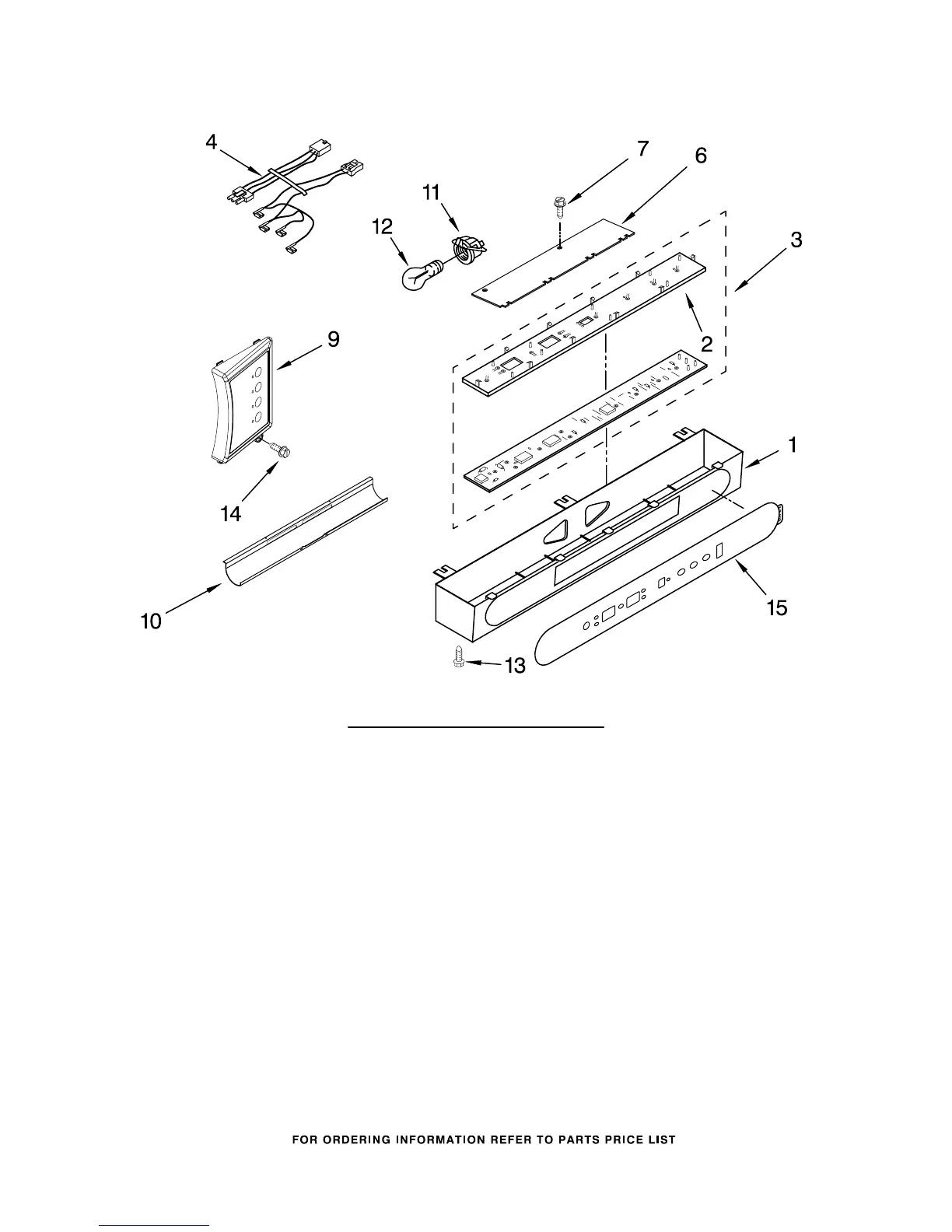

CONTROL PANEL PARTS
For Models: KSSS48QMW01, KSSS48QMB01, KSSS48QMX01
(White) (Black) (Etched Aluminum)
8199105
Illus. Part
No. No. DESCRIPTION
1 2302773 Control Box
2 2303938 Insert, Control
Box
3 2302913 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
6 2221121 Support, Control
Box
7 489006 Screw (2)
9 2306086 Display Board,
Ingredient
Care Center
10 2302716 Shield, Light
11 2162085 Socket, Light
12 2255743 Light Bulb
13 486194 Screw
14 8281185 Screw
15 2257520 Overlay
