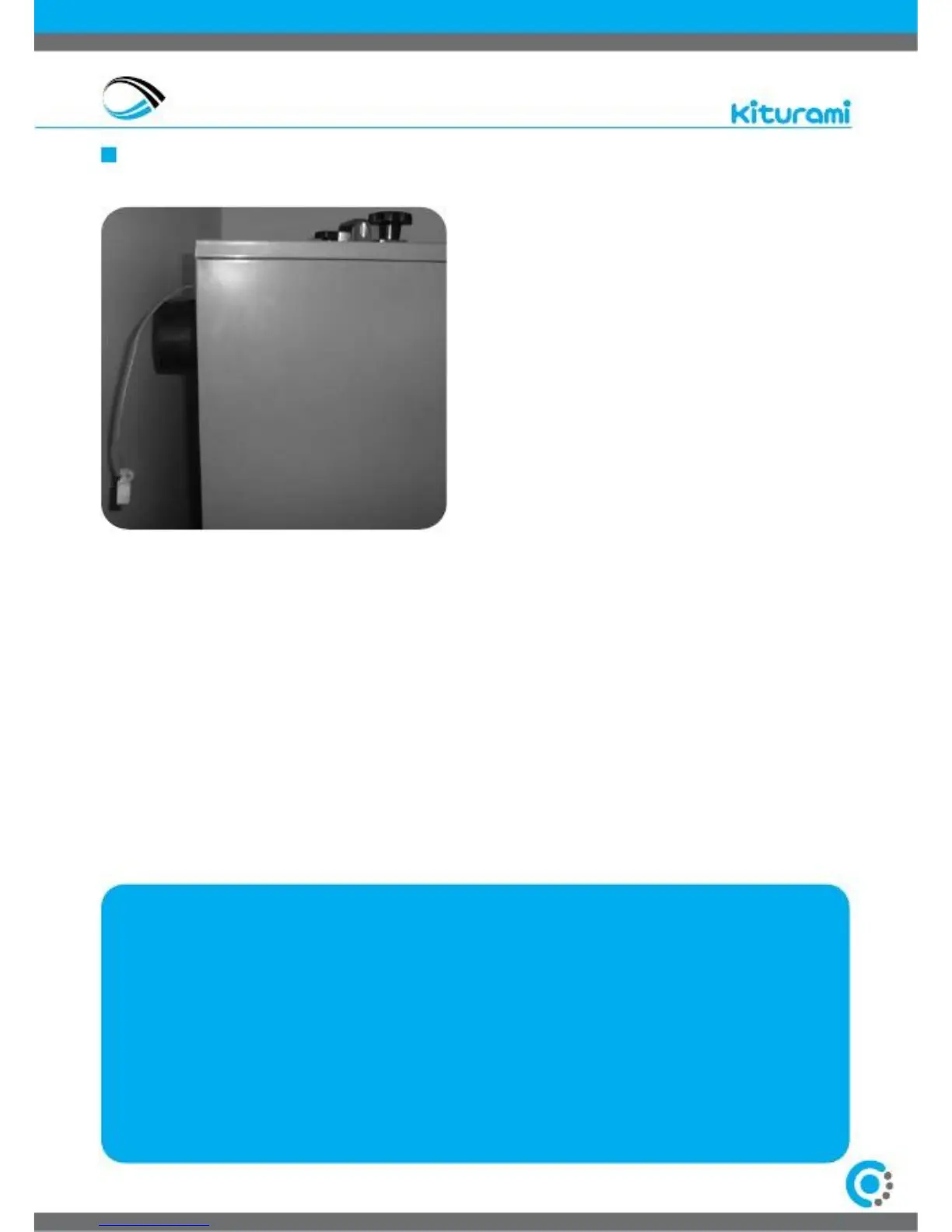

Electrical connection of the unit
Use a power supply outlet
exclusively for the unit.
Connect the two green wires
(phase - neutral) in the circulation pump.
Installation and connection of room thermostat
Place the thermostat base on an internal wall of the room, in a distance of 1,20 - 1,50 m from the floor.
Extend and connect to the thermostat the two wires red and white expanding left of the inner control
BCX4000C2 located within the unit.
Connect the cable to the back of the thermostat.
Connect the marking wires of the room thermostat according to the polarity when you wire.
White (-), red (+) and place the thermostat in its place.
• Do not place electrical cords e.g. AC120V type
because the communicating between the room
thermostat and the pellet unit may not be good.
• Do not bury under the ground or put the
thermostat wire in the same tube with the electrical
cable 230V. It can cause problems in the communi-
cation between the room thermostat and the unit
panel.
• Do not place it in a place exposed to sunlight and
high humidity.
• Do not place it in a place that can easily be reached
by children.
