Select filters by pressing the FILTERS key.

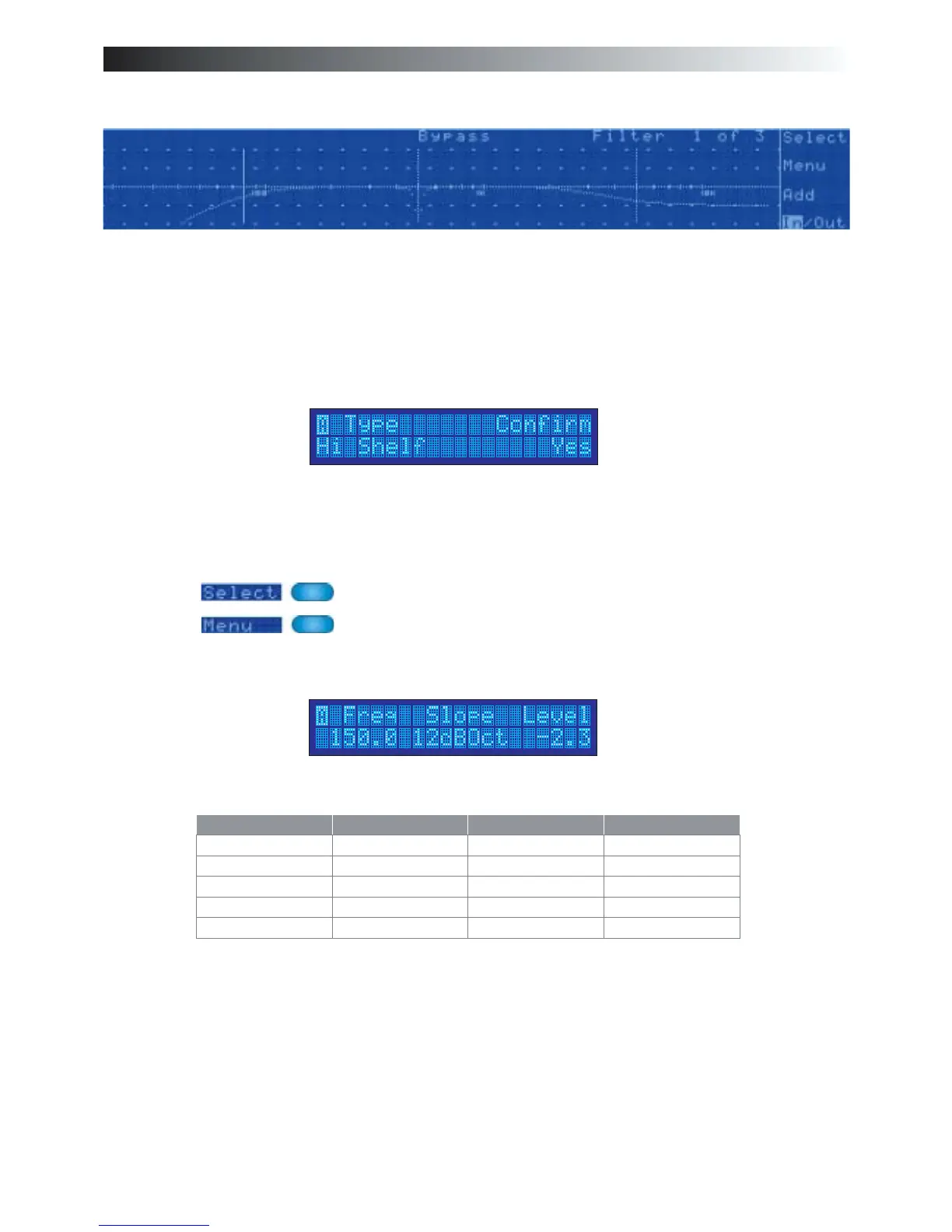

The display for the filters is similar to the home page, showing the frequency response - in this case just for the
filters.At the top right is a legend “Filter 1 of 1” which indicates which filter is currently active for control, and
also how many filters are in use. So, for example, if we have 3 filters in use, and are adjusting the second one
the legend would read “Filter 2 of 3”. If no filters are active, then the display is blank except for the “ADD”
key. Press this key to add a filter.
selects which filter is to be controlled
The controls available vary depending on the type of filter selected:
Notch Frequency Q -
Low Pass (LPF) Frequency Normal/Peaking Slope/Gain
High Pass (HPF) Frequency Normal/Peaking Slope/Gain
Hi Shelf Frequency Slope Level
Lo Shelf Frequency Slope Level
“Create Filter” function
Turn the left encoder to select the type of filter required. The available options are Notch,
Low-pass (normal and peaking), High-pass (normal and peaking), Hi shelf and Lo shelf.
Turn the right encoder to confirm the selection and create the filter.
Default page displays the main parameter controls for each filter.
Soft Key Functions
o
Filter Type Left Centre Right
26
l abc
Operation DN9340: Filters
