Warning:
Length of exhaust pipe according to the machine features, please don’t replace or lengthen it freely,
otherwise errors will be easily caused.
Note: extreme length of unfolding exhaust pipe is 1500mm, please shorten the length as much as pos-
sible and keep it level as much as possible when installing.

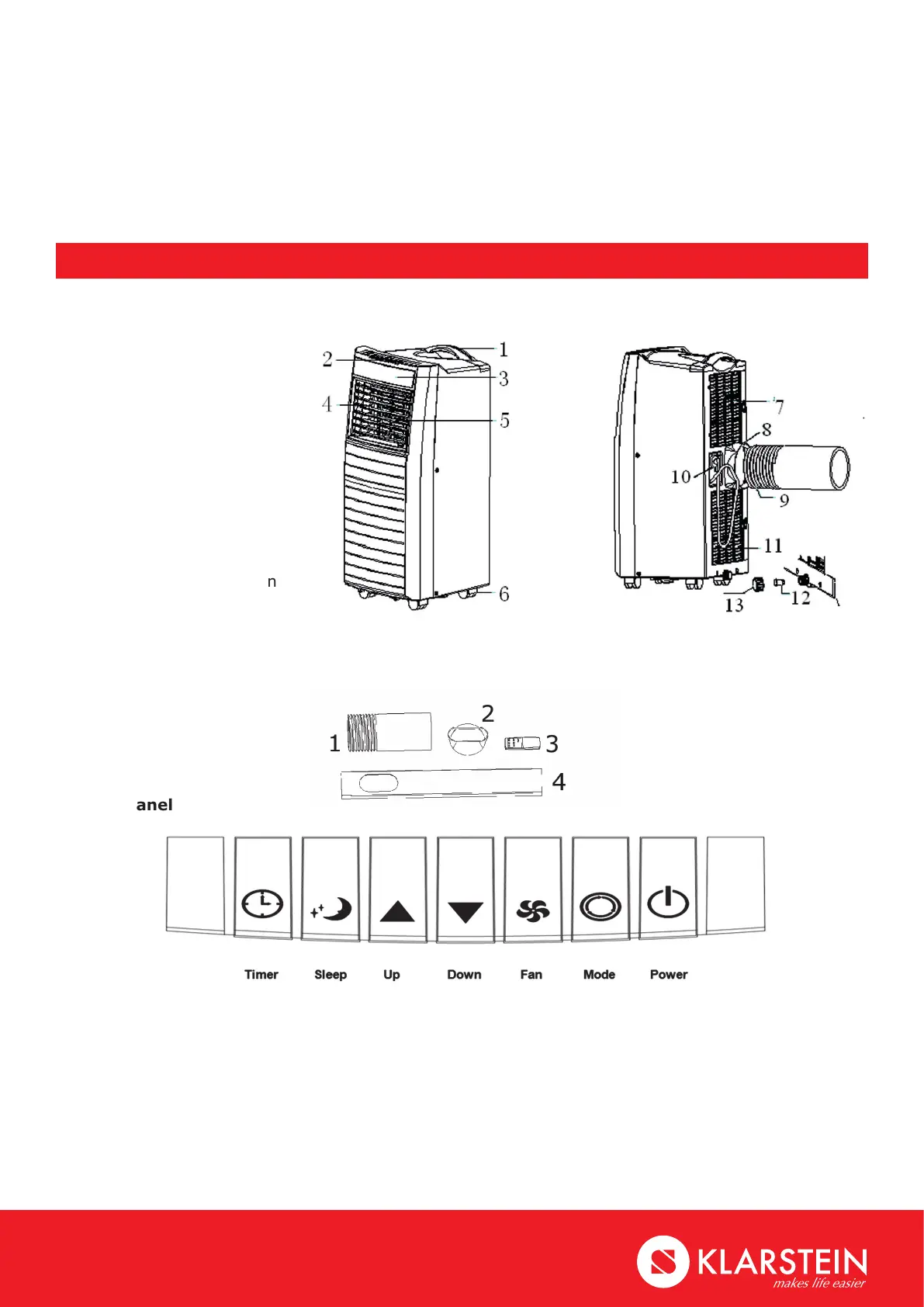

Parts Name
Front side
1. Handle
2. Control Panel
3.Screen
4. Air-outlet
5. Fan blade
6. Castor
Back Side
7. Filter frame upper
8. Exhaust Connector
9. Exhaust Pipe
10. Power Cord Location
11. Filter frame lower
12. Rubber plug
13.Plugcap
Check packing accessories, read user’s manual to get how to use them. (g.4)
1. Exhaust Pipe
2. Adapter
3.Remotecontrol
4. Sealplate
Control Panel
1. POWER:pressthiskeytoturnon/omachine.Aftermachineturnson,defaultvalueiscooling
mode with low fan speed.
2. MODE: after machine turns on, press this key to select cooling, dehumidifying and fan mode.
3. FAN: after machine turns on, press this key to select fan speed (high and low).
4. DOWN:undercoolingmode,pressthiskeytodownwardsettingtemperaturefrom16~31℃.
5. UP: undercoolingmode,pressthiskeytoupwardtemperaturefrom16~31℃.
6. SLEEP:undercoolingmode,pressthiskeytoturnon/osleepingfunction.
7. TIMER:underpower-onorstandbymode,pressthiskeytosetupon/otimefrom1~24.
