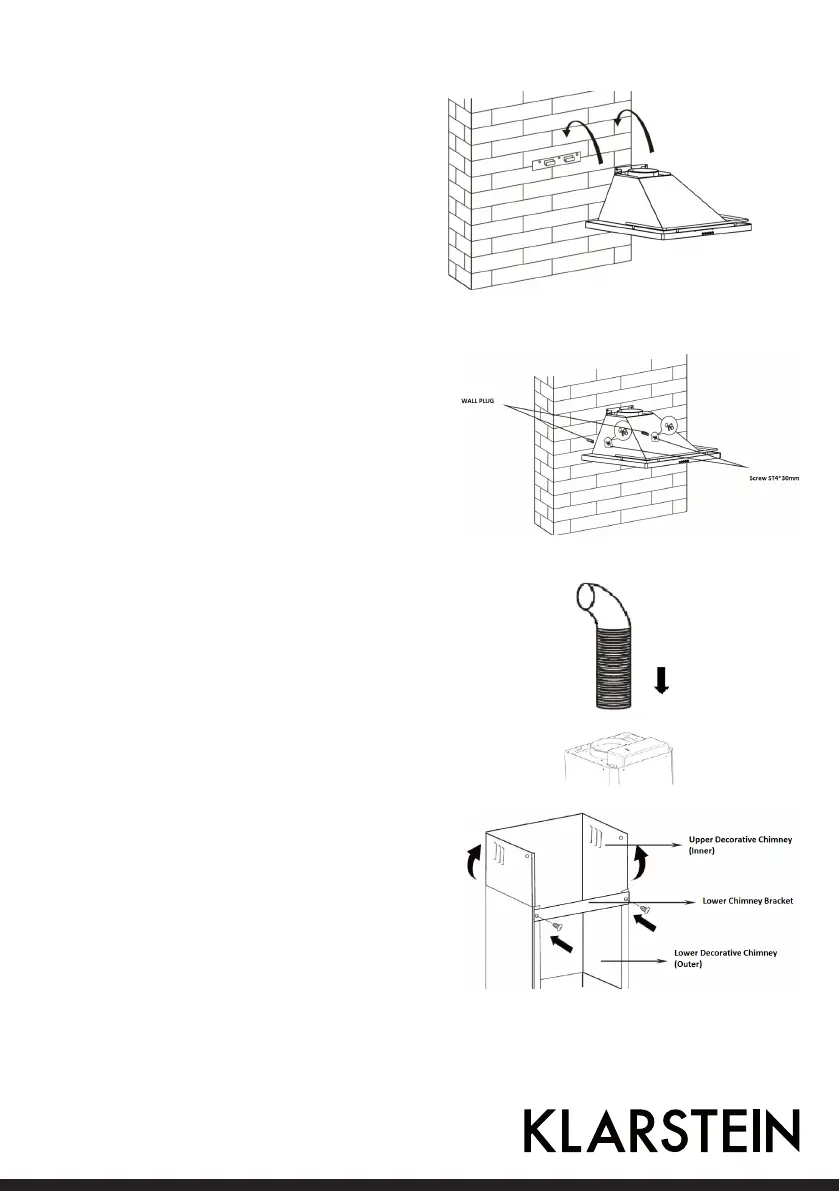

Lift up the cooker hood and hang onto the wall
bracket hook.
Secure the body with security screws, Use
2 pcs of wall plug and 2 pcs of ST4*30mm
screws.
Place the plastic duct on the cooker hood.
The lower chimney bracket is used to fix the lower
decorative chimney
Use 2pcs 4x8mm screws to attach lower and upper
chimney together. Before attaching the bracket to the
chimney, decide the location of lower chimney brack-
et fixing holes for fixing the lower chimney bracket in
the later step. Do not fasten screws too much, make
sure upper decorative chimney can be telescopically
adjusted after assembled
.
