Klarstein 10038404 - Page 33

33
EN

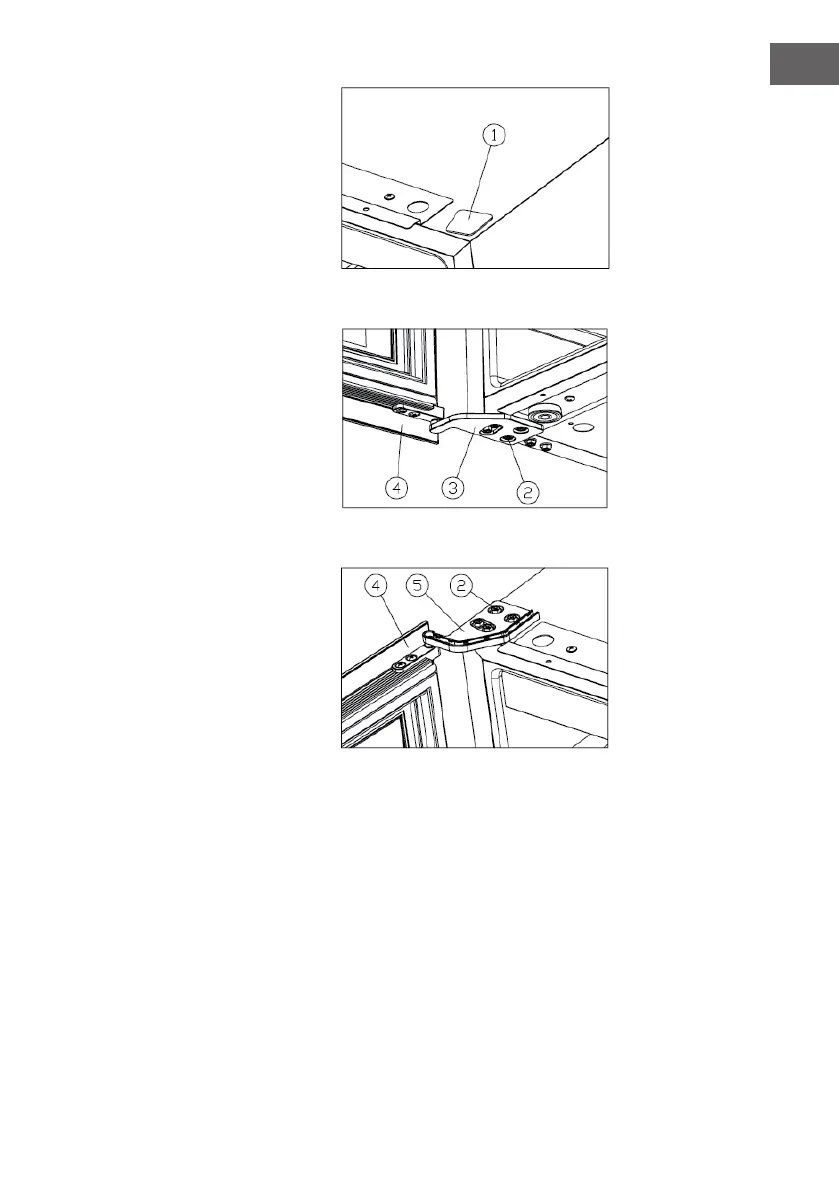

5. Install the germinal lid (1).
Figure 4
6. Install the right upper hinge (3) and
screw tight the M5x16 screws (2).
Figure 5
7 Turn the door (4) 180° uand insert
the right lower hinge (5). Screw tight
with the M5x16 screws (2) (see
gure6).
Door reversing is nished.
Figure 6
