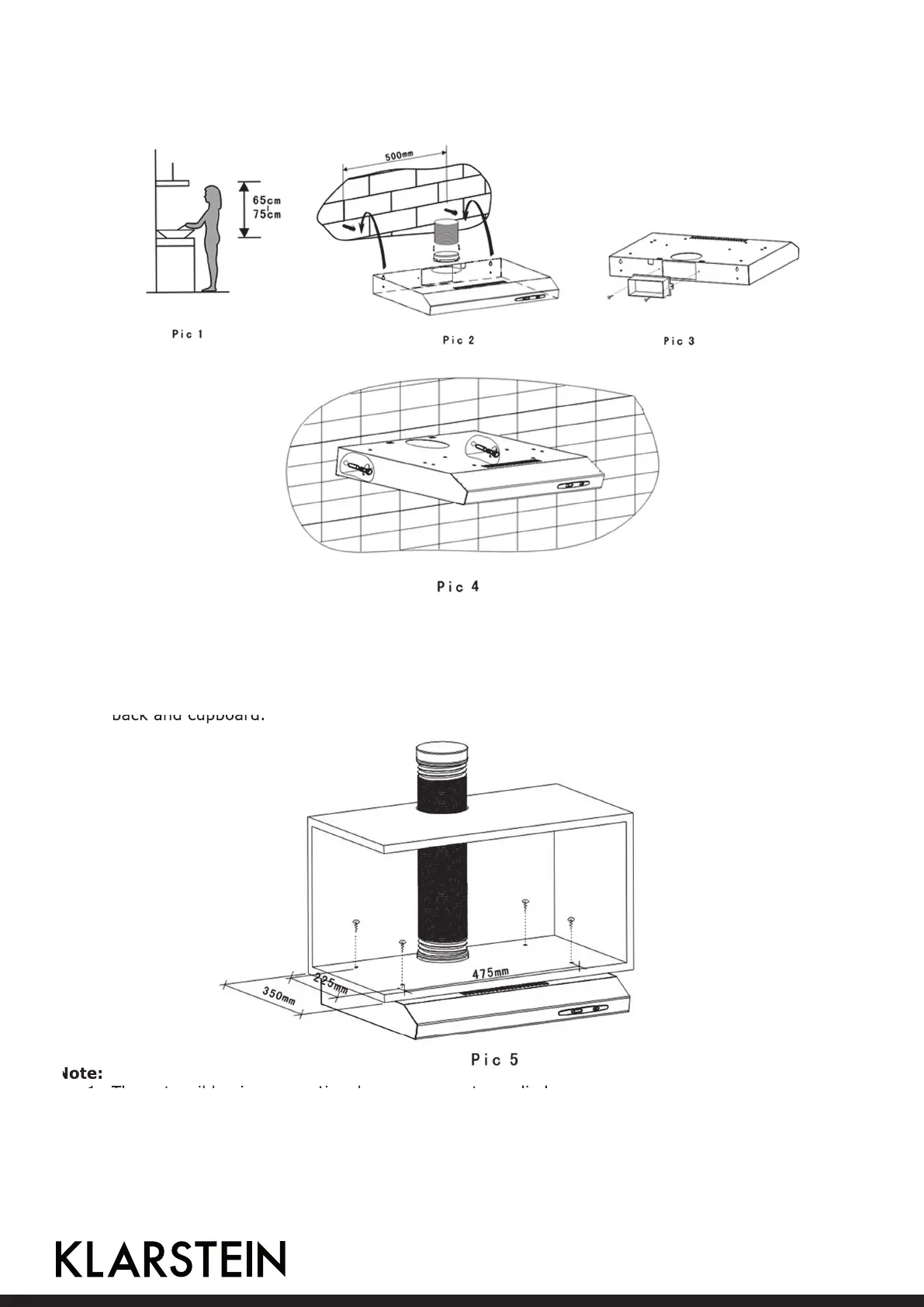

Way two:
• Drill4holesof6mmdiameteratthebottomofthehangingcupboard
• Puttheonewayvalveonthecookerhood,theninstallthecookerhoodonthebottomofthe
 cupboard,tightenthehoodwithenclosed4screws.
• Installtheadjustedboardonthebottomofthehoodinordertokeepoutthegapbetweenhood
 backandcupboard.
Note:
1. Theextensiblepipeareoptionalaccessory,notsupplied.
2. Takeoffprotectionlmbeforeinstallation.
3. Thereare2methodsforventilation,including‚horizontalventilation‘and‚verticalventilation‘.
 Pleasepayattentiontotheventilationmethodwheninstallation.SeePic6
 backandcupboard.
Note:
1. Theextensiblepipeareoptionalaccessory,notsupplied.
