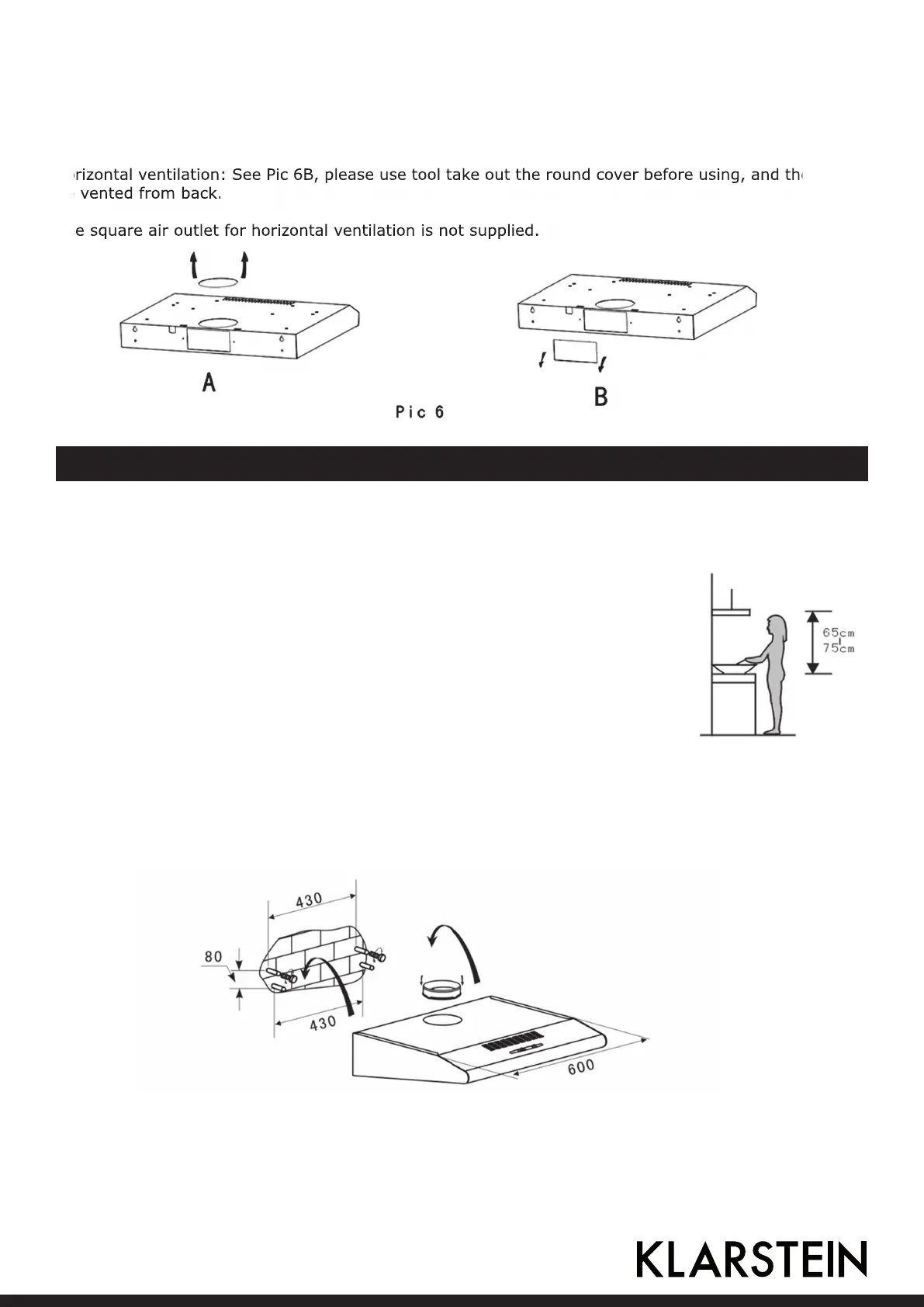

ventilation‘.Pleasepayattentiontotheventilationmethodwheninstallation.SeePic6
Verticalventilation:SeePic6A,pleaseusetooltakeouttheroundcoverbeforeusing,andtheaircan
be vented from top
horizontalventilation:SeePic6B,pleaseusetooltakeouttheroundcoverbeforeusing,andtheaircan
beventedfromback.
Thesquareairoutletforhorizontalventilationisnotsupplied.
Installationinstructions(10011462/10011483)
Warning:Failuretoinstallthescrewsorxingdeviceinaccordancewiththeseinstructionsmay
result in electrical hazards.
Way one:
• Thecookerhoodsshouldbeplacedatadistanceof65-75cmfromthe
cookingsurfaceforbesteffect.
• Toinstallontothewalldrill4holesofØ8mmonasuitableplaceaccordingwiththecentredistance
 ofholeinthebackofthecookerhood.
• Insert the nut into the holes.
• Insert the screws into the nuts and tight.
• Putupthecookerhoodontothexedscrews.
• Thenusetheattachedaccessorieswiththegoodstoturnthescrewsintothetwoholesofinside
 thehood,andthenxthescrewtotightenthehoodontothewall.
• Puttheonewayvalveontothecookerhood.
horizontalventilation:SeePic6B,pleaseusetooltakeouttheroundcoverbeforeusing,andtheaircan
beventedfromback.
Thesquareairoutletforhorizontalventilationisnotsupplied.
