INSTALLATION
Preparation

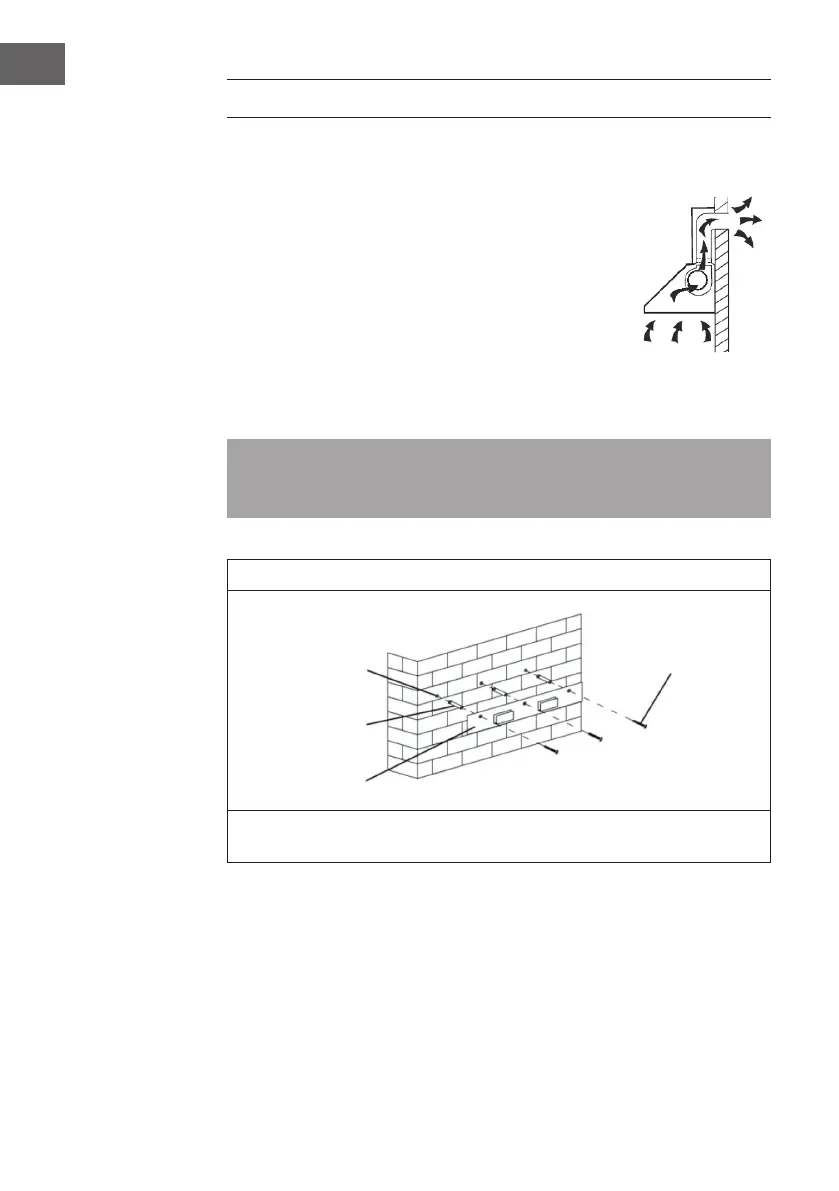

If you have an outlet to the outside, your cooker hood
can be connected as below picture by means of an
extraction duct (enamel, aluminium, exible pipe or
inammable material with an interior diameter of
150mm)
• Before installation, turn the unit off and unplug it
from the outlet.
• The cooker hood should be placed at a distance of
65~75cm above the cooking plane for best effect.
Installation (Vent outside)
Note: When the range hood and appliance supplied with energy other than
electricity are simultaneously in operation, the negative pressure in the room
must be not exceed 4 Pa (4 x 10
-5
Bar).
1
Drill 3 x 8 mm holes to accommodate the bracket. Screw and tighten the
bracket onto the wall with the screws & screw plugs provided.
Holes
Screw plugs
Wall bracket
Screws
(4 mm x 30mm)
