6
Dwg Name: VDV526-200-1390397ART
Dwg No: 1390397
ECO No: 041006 Rev: B
Pkg Dwg Ref: 1290186
Finish Coat Requirements: N/A
ENGLISH

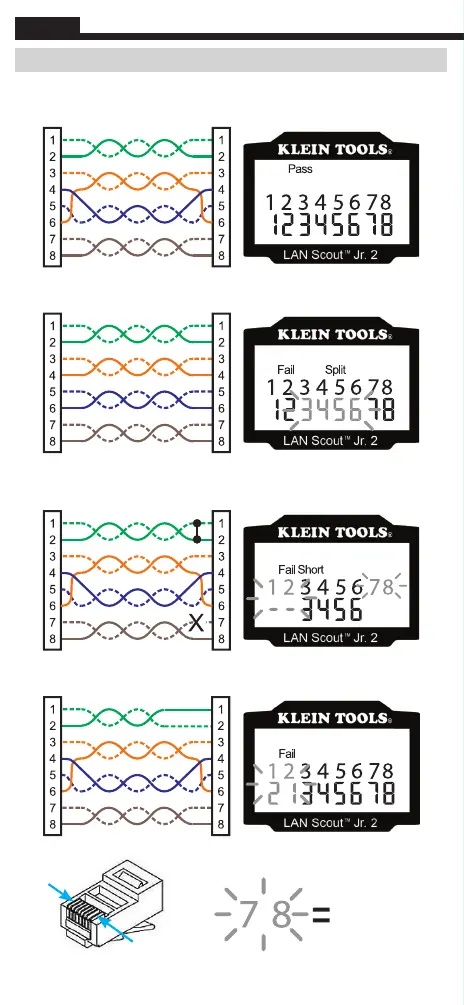

WIRE MAP AND DISPLAY EXAMPLES
Properly Wired T568A UTP:
Tester Remote
T568A Split Pairs:
Tester Remote
T568A Short and Open:
Tester Remote
T568A Miswire:
Tester Remote
8
1
Flashing
VDV526-200-1390397ART.indd 6VDV526-200-1390397ART.indd 6 7/30/21 8:46 AM7/30/21 8:46 AM
