4
ENGLISH
WARNINGS
To ensure safe operations and service of the instrument, follow these
instructions. Failure to observe these warnings can result in re,
electric shock, severe injury or death.
•
The Probe-Pro is designed for use on extra-low voltage cabling
systems (less than 60 volts) for testing when NOT energized.
•
DO NOT use instrument if wet, as it could pose a shock hazard.
•
DO NOT use instrument if damaged in any way.
•
Turn off instrument before attempting to replace batteries.
•
The battery door must be in place and secure before you operate the
instrument.
•
DO NOT open the case, other than the battery compartment.
OPERATING INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE OPERATING AND RETAIN
INSTRUCTIONS FOR FUTURE REFERENCE

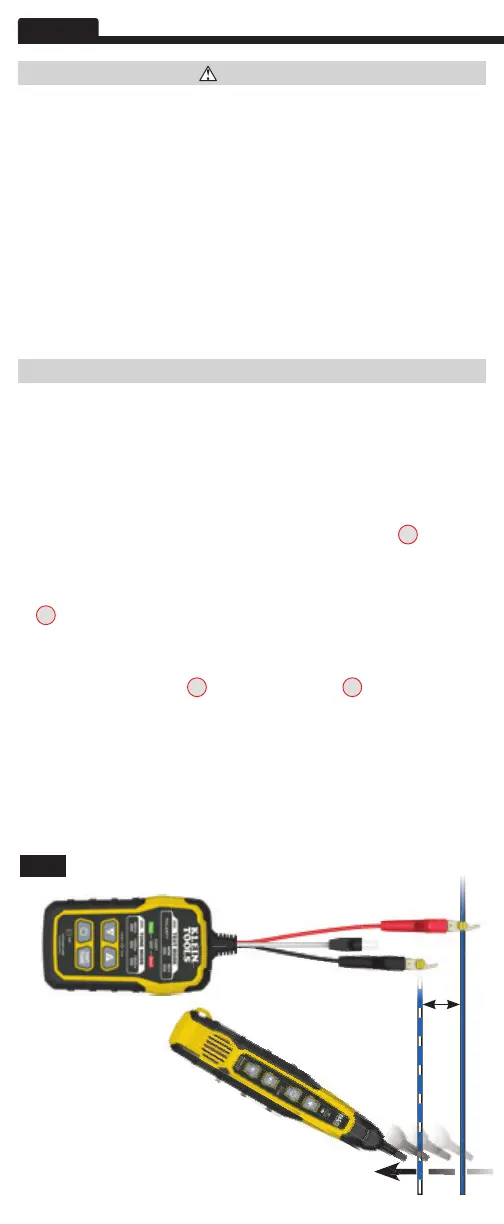

TRACING PAIRED WIRES (FIG. 1)
1. Connect tone generator (VDV500-063 Toner-Pro recommended, sold
seperately) to the wires of the pair to be traced, following the tone
generator's instructions.
2. Turn the Probe-Pro on by pressing the Power On/Off button
P5
.
3. At the far end of the cable, spread the wires apart at least 2" (51 mm), if
possible.
4. Use the Probe-Pro to scan the cable’s wire pairs. Move the Probe-Pro's tip
P1
slowly across the wires (FIG. 1). The Probe-Pro’s volume will increase
as it approaches the toned pair. When the Probe-Pro’s volume is high
over the first wire, low in the middle (between) the two wires, and high
over the second wire, you have located the pair of wires you are tracing.
Use the
Volume Increase
P6
and
Volume Decrease
P7
buttons to adjust
the volume.
2"
(51 mm)
FIG. 1
VDV500-063
(sold seperately)
